31
5.7 Adjusting the Ribbon Saver
The ribbon saver reduces the consumption of transfer ribbon amongst others by lifting the printhead while feeding
blank label areas. The printhead will be lifted by eccentrics (6) which are controlled by a clock wheel (2) and an
optical sensor (1).
A misaligned clock wheel can cause a reduction of the saver effect in the saver phase or a deterioration of the print
image and a stagnant ribbon transport in the print phase.
Danger!
Risk of death via electric shock!
Before opening the housing cover, disconnect the device from the mains supply and wait at least one
minute until the power supply unit has discharged.
2a 31 4 5 6 32b 5 6

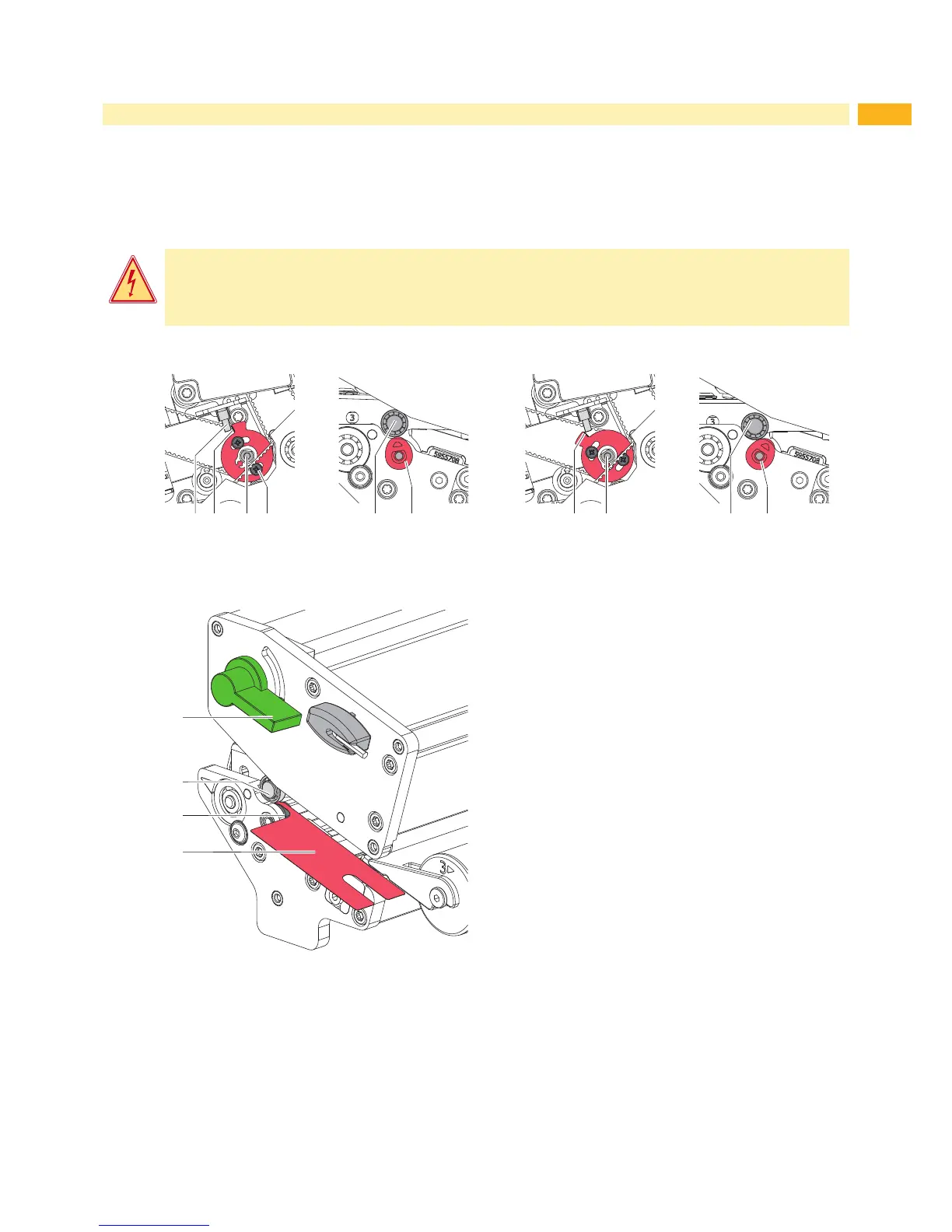

Figure 31 Position of eccentrics and clock wheel
in the saver phase
Figure 32 Position of eccentrics and clock wheel
in the print phase
6
5
7
8
1. Unplug the printer from the electrical outlet.
2. Remove the cover.
3. Turn lever (7) clockwise to lock the printhead.
4. Loosen the screws (4) at the clock wheel.
5. Turn axle (3) in such a way that the eccentrics (6) lift the
printhead via the ball bearings (5) at most
Figure 31 right side.
6. Adjust a gap of ca. 1 mm between ange (2a) and the
edge of the sensor housing (1) by turning the clock wheel
Figure 31 left side.
7. Tighten screws (4).
8. Turn axle (3) in such a way that there is a gap of 1 mm
between ange (2b) and the other edge of the sensor
housing Figure 32 left side.
9. Check the distance between ball bearing (5) and
eccentric (6) with the 0,1 mm gauge (8).
10. Mount cover.
Figure 33 Checking the distance ball bearing - eccentric
5 Adjustments
