5 Adjustments
5.5.2 Adjusting the Tension at the Rewinder and Transport Roller Belt
Danger!
Risk of death via electric shock!
Before opening the housing cover, disconnect the device from the mains supply and wait at least one
minute until the power supply unit has discharged.
2 31 54
7 86

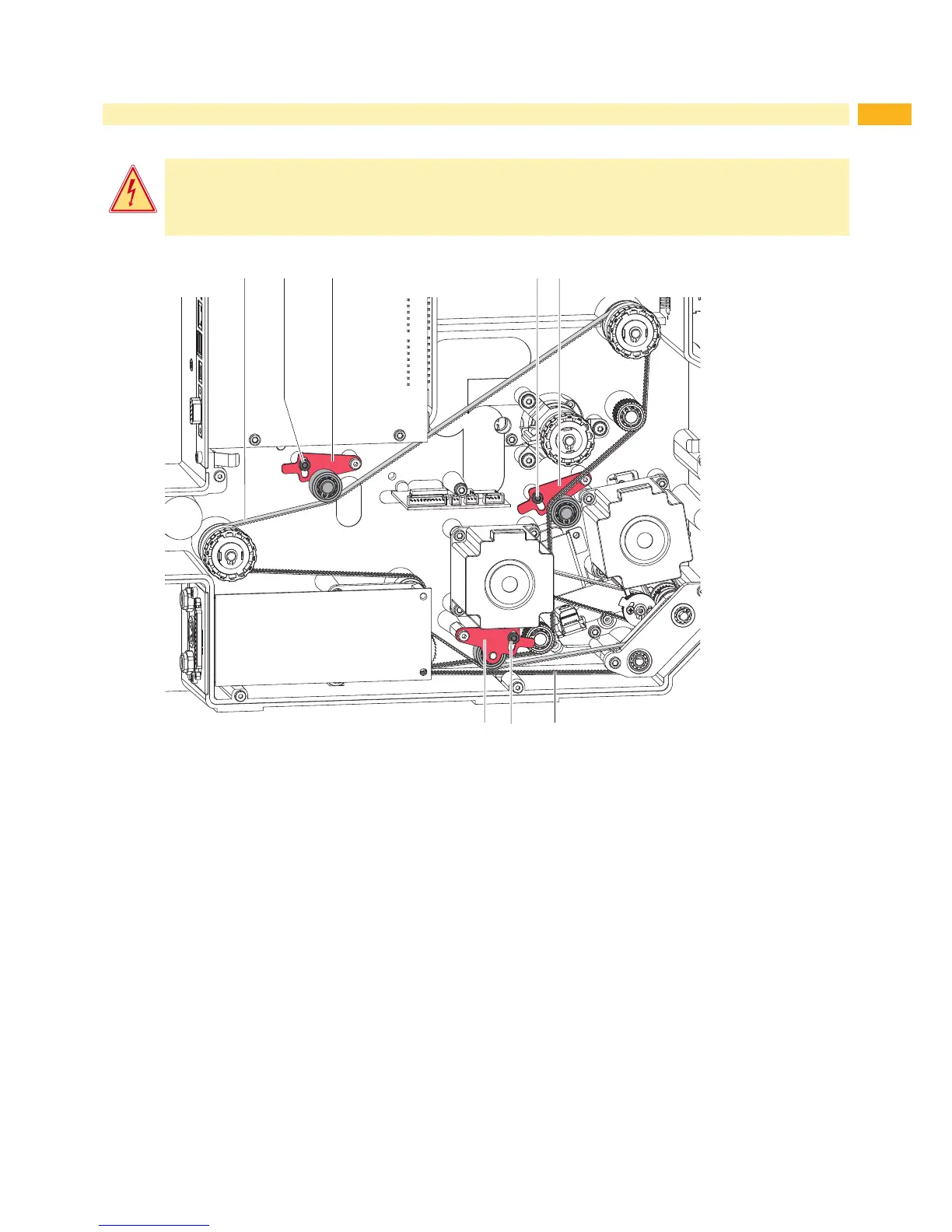

Figure 29 Adjusting the tension at the rewinder and transport roller belt
1. Unplug the printer from the electrical outlet.
2. Remove the cover.
3. Adjusting driver belt (1) for the rewinder :
• Loosen screw (4).
• Swing bracket (5) so that the belt (1) is tensioned tightly.
• Tighten screw (4).
• If necessary loosen screw (2), further increase the tension by swinging bracket (3) and re-tighten screw (2).
4. Adjusting the driver belt (8) for the transport roller :
• Loosen screw (7).
• Swing bracket (6) so that the belt (8) is tensioned tightly.
• Tighten screw (7).
5. Mount cover.
