CAB MACH4 Service Manual

10 10
2 Replacing Assembly Units
2.5 Replacing the Outer Casing
Danger!
Danger to life and limb from electric shock!
Disconnect the device from the mains supply before opening the outer casing.
41 32

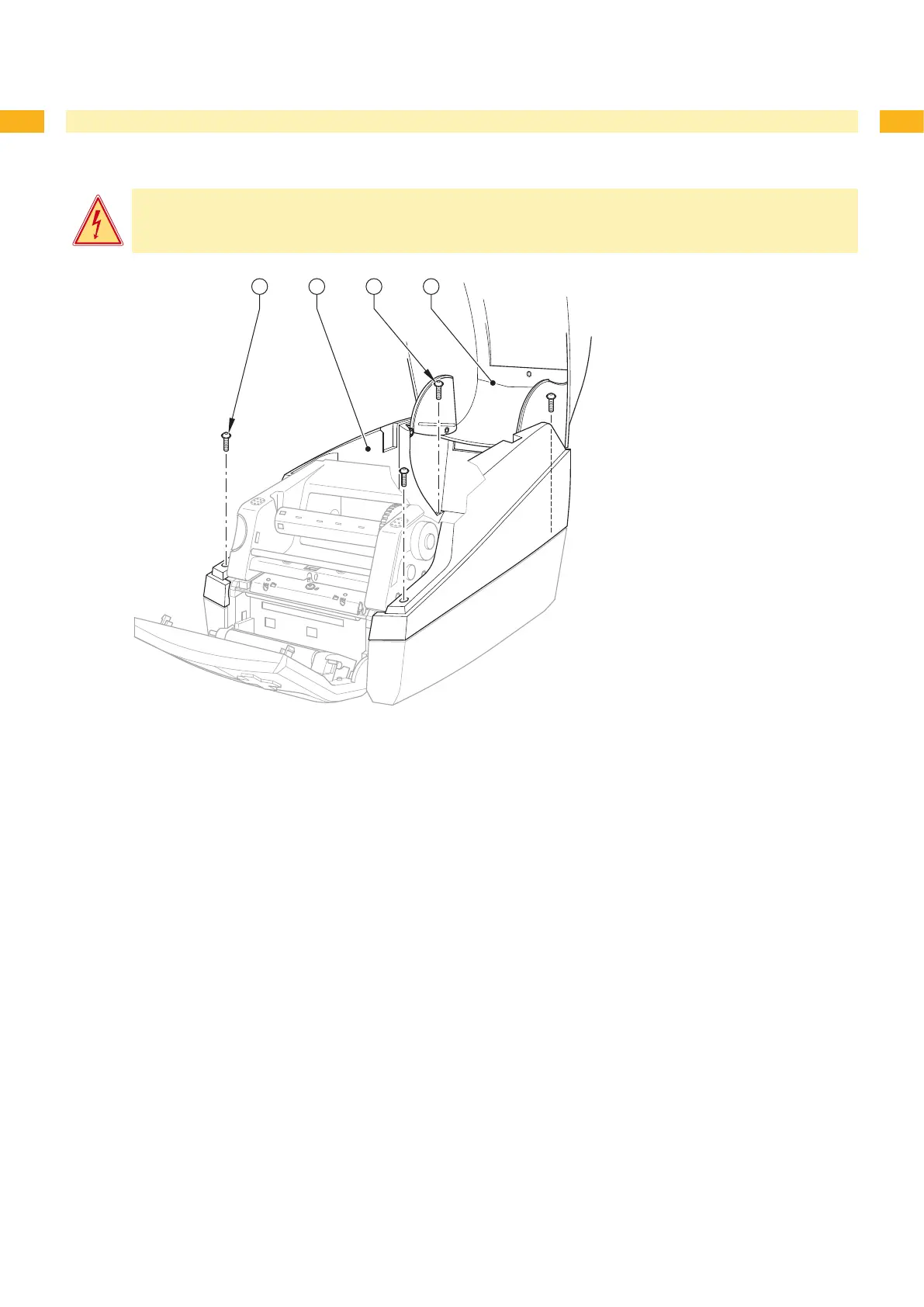

Fig. 4 Replacing the outer casing
1 Two screws
2 Outer casing
3 Two Screws
4 Cover
The outer casing can be removed complete with the cover.
Open the cover (4), remove the roll hub and material.
Unscrew 2 screws (1) from the front of the casing.
Unscrew 2 screws (3) from the inside of the oor.
Remove the outer casing (2) together with the cover (4).
Mount the outer casing with the cover in the reverse order. Hinge up the print module for easier inserting the parts.
1.
2.
3.
4.

CAB MACH4 Specifications

General

Print Technology	Thermal transfer
Print Resolution	300 dpi
Max Print Width	104 mm
Power Supply	100 - 240 V AC, 50/60 Hz
Display	LCD with backlight
Interfaces	USB, Ethernet
Label Width Range	25 mm - 116 mm
Supported Barcode Types	Data Matrix, QR Code
Supported Operating Systems	Windows, Linux
