CAB MACH4 Service Manual

10
11
2 Replacing Assembly Units
2.6 Replacing the Print Mechanism
Danger!
Danger to life and limb from electric shock!
Disconnect the device from the mains supply before opening the outer casing.
3
8
9
2
1
4
6
7
5

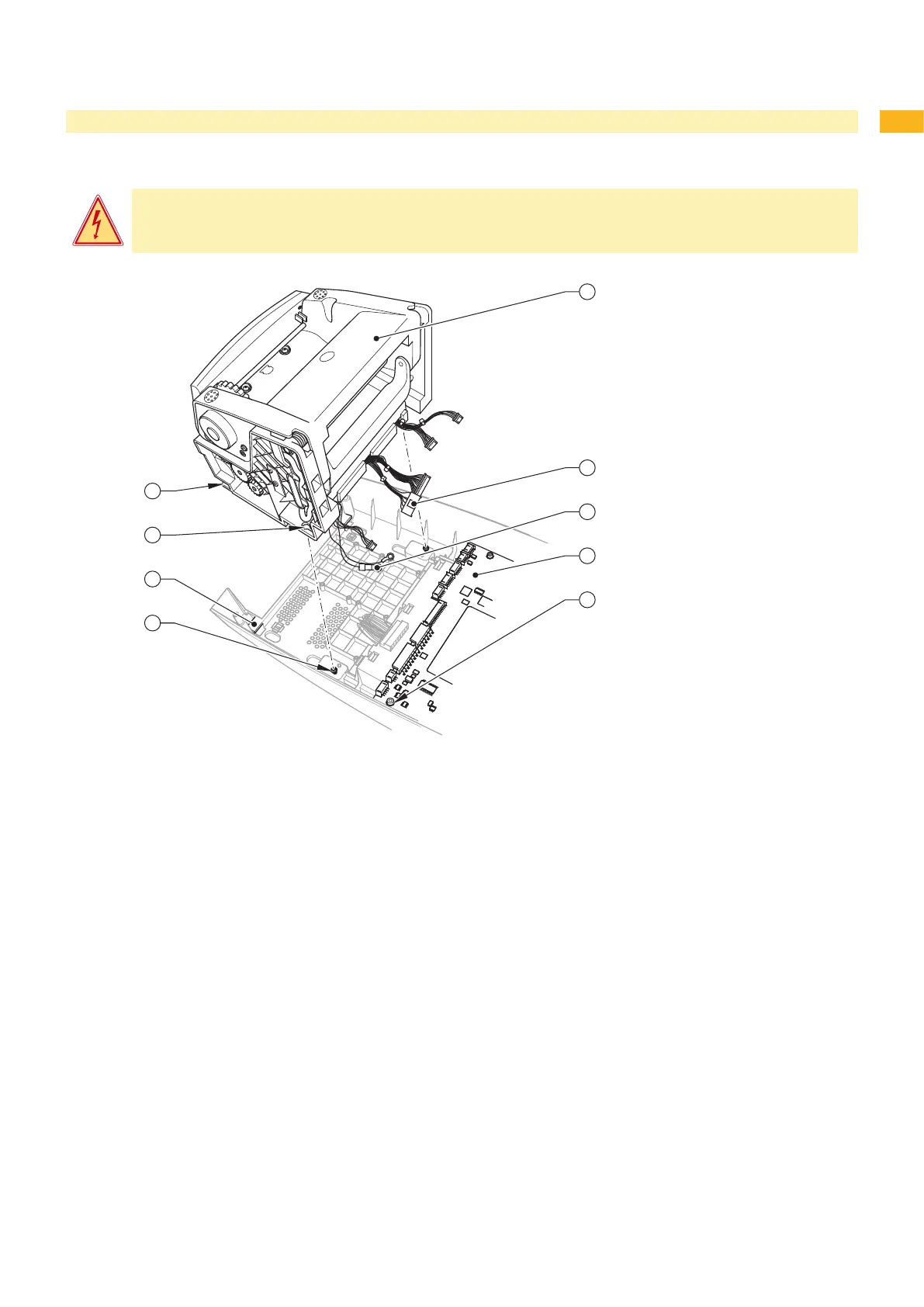

Fig. 5 Replacing the print mechanism
1 Print mechanism
2 Cables
3 Grounding cable
4 CPU PCB
5 Screw
6 Screw
7 Bottom guide
8 Elongated hole
9 Lug
Remove the outer casing with the cover ( 2.5 on page 10).
Disconnect the print mechanism cables (2) from the CPU PCB (4).
Remove the grounding cable (3) with the screw (6) from the CPU PCB (4).
Loosen the two screws (5). Slide the print mechanism (1) back a little until the elongated holes (8) can be lifted off
from the two screws (5). Pull the lower lugs (9) out of the bottom guides (7) and put the print mechanism down.
Slide the lower lugs (9) of the new printing mechanism into the bottom guides (7), press down, and slide forward
until it slots into the projections beside the screws.
Tighten both screws (5).
Attach the grounding cable (3) to the CPU PCB (4) with the screw (6).
Connect the cables (2) with the CPU PCB ( 2.7 on page 12).
Remount the outer casing with the cover ( 2.5 on page 10).
1.
2.
3.
4.
5.
6.
7.
8.

CAB MACH4 Specifications

General

Print Technology	Thermal transfer
Print Resolution	300 dpi
Max Print Width	104 mm
Power Supply	100 - 240 V AC, 50/60 Hz
Display	LCD with backlight
Interfaces	USB, Ethernet
Label Width Range	25 mm - 116 mm
Supported Barcode Types	Data Matrix, QR Code
Supported Operating Systems	Windows, Linux
