2 Replacing Assembly Units
2.10 Replacing the Drive of the Cutting Unit

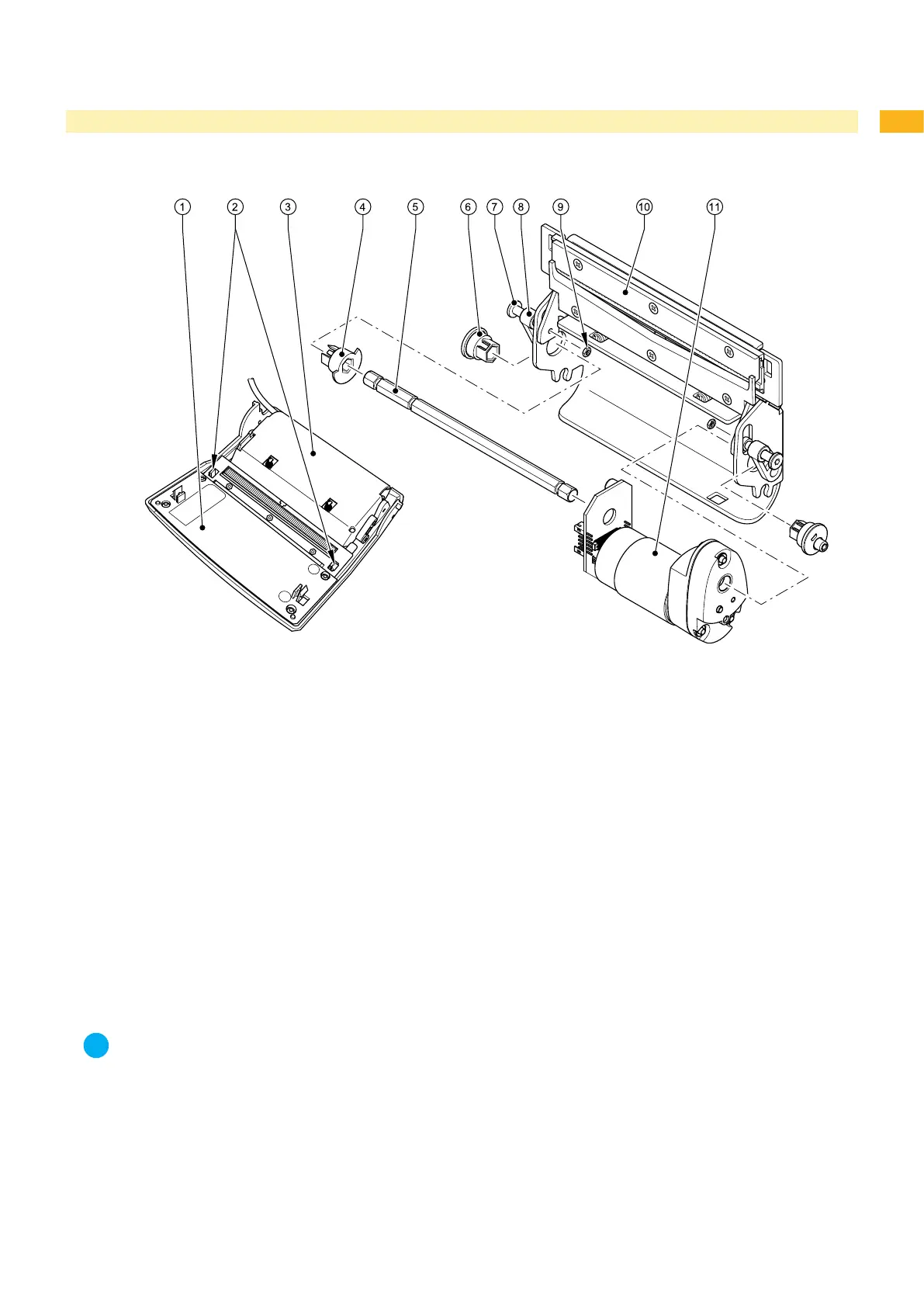

Fig. 9 Replacing the drive of the cutting unit
1 Control panel
2 Two plastic latches
3 Cutting unit
4 Clock wheel
5 Shaft
6 Two eccentrics
7 Two screws
8 Two connectors
9 Two nuts
10 Base plate
11 Drive
Turn the control panel (1) down, unlock the cutting unit (3) at the both plastic latches (2) and lift it.
Loosen the nuts (9).
Loosen (but not remove) the two screws (7) carefully so that the connectors (8) can be moved from the pivots of
the eccentrics (6).
Unlock the two eccentrics (6) and pull they off from the shaft (5).
Unlock the clock wheel (4), pull out the shaft (5) from the drive (11) and the base plate (10).
Remove the drive (11) and insert the new drive into the form hole of the base plate (10).
Assembly in reverse order.
Notice!
Ensure that the latches of the two eccentrics (6) and of the clock wheel (4) are positioned as shown in the
gure.
