2 Replacing Assembly Units
2.13 Replacing the Power Unit
Danger!
Danger to life and limb from electric shock!
Disconnect the device from the mains supply before opening the outer casing, and wait at least one
minute to allow the power unit to discharge.

83 4 575
9
6
1 2

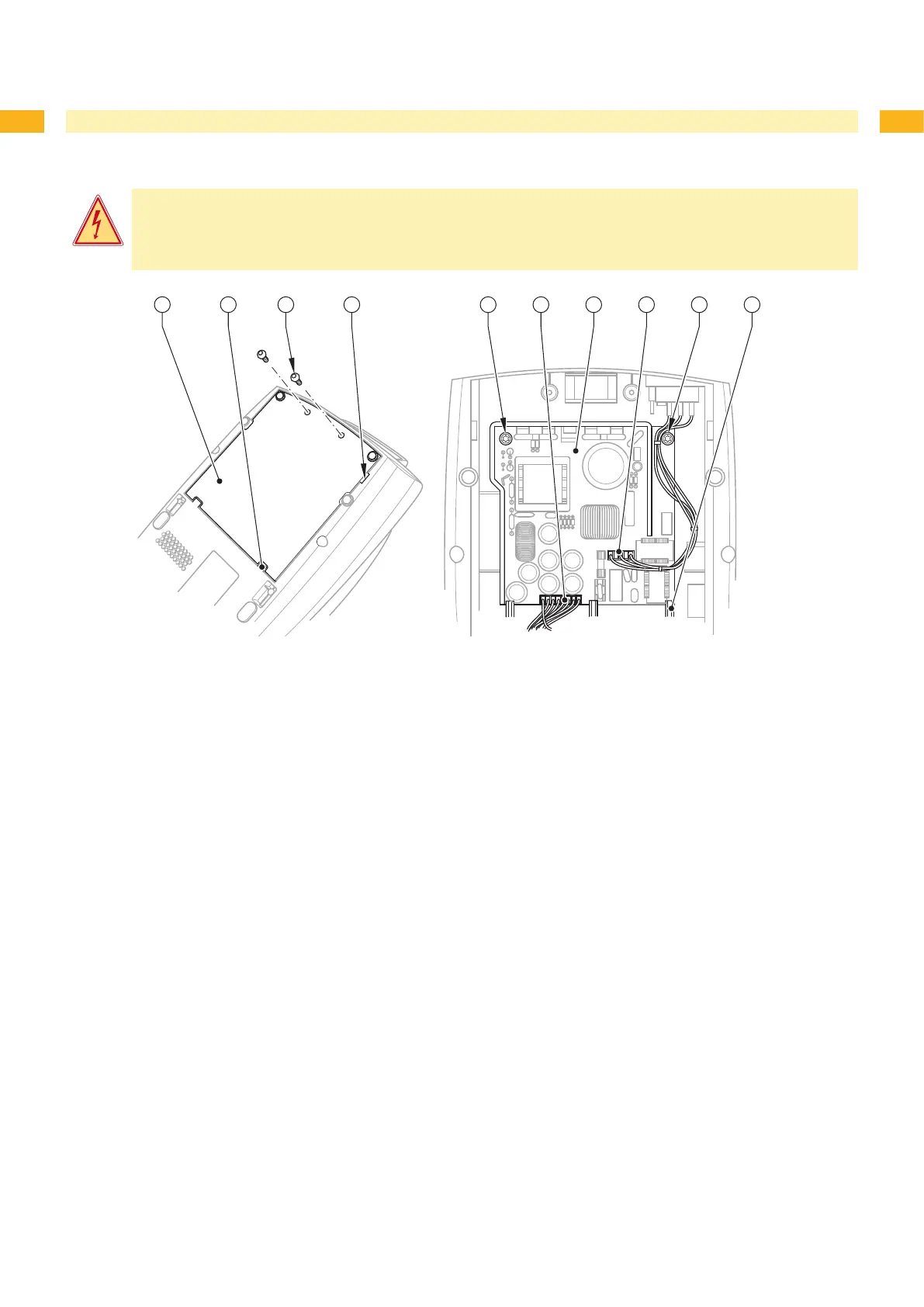

Fig. 12 Replacing the power unit
1 Power unit cover
2 Base tub latch
3 Screw
4 Recess
5 Screw
6 Power unit cable
7 Power unit
8 Mains input plug
9 Bottom lug
Turn the printer and place it on a suitable underlay.
Loosen the two screws (3).
Insert a screwdriver into the recess (4), lift and remove the cover (1).
Unplug the mains input (8) and power unit (6) cables.
Remove the two screws (5).
Remove the power unit (7).
Slide the new power unit (7) under the 3 bottom lugs (9), and slot the power unit PCB, with the drill holes for the
screws (5), into the corresponding projections. Then x in place with the two screws (5).
Plug in the mains input (8) and power unit (6) cables again.
Hook the cover (1) into the lugs of the base tub (2), and xate with two screws (3).
1.
2.
3.
4.
5.
6.
7.
8.
9.
