CAB PX Series User Manual

7
22 23 24
25 26 27 28 29 30 31 32

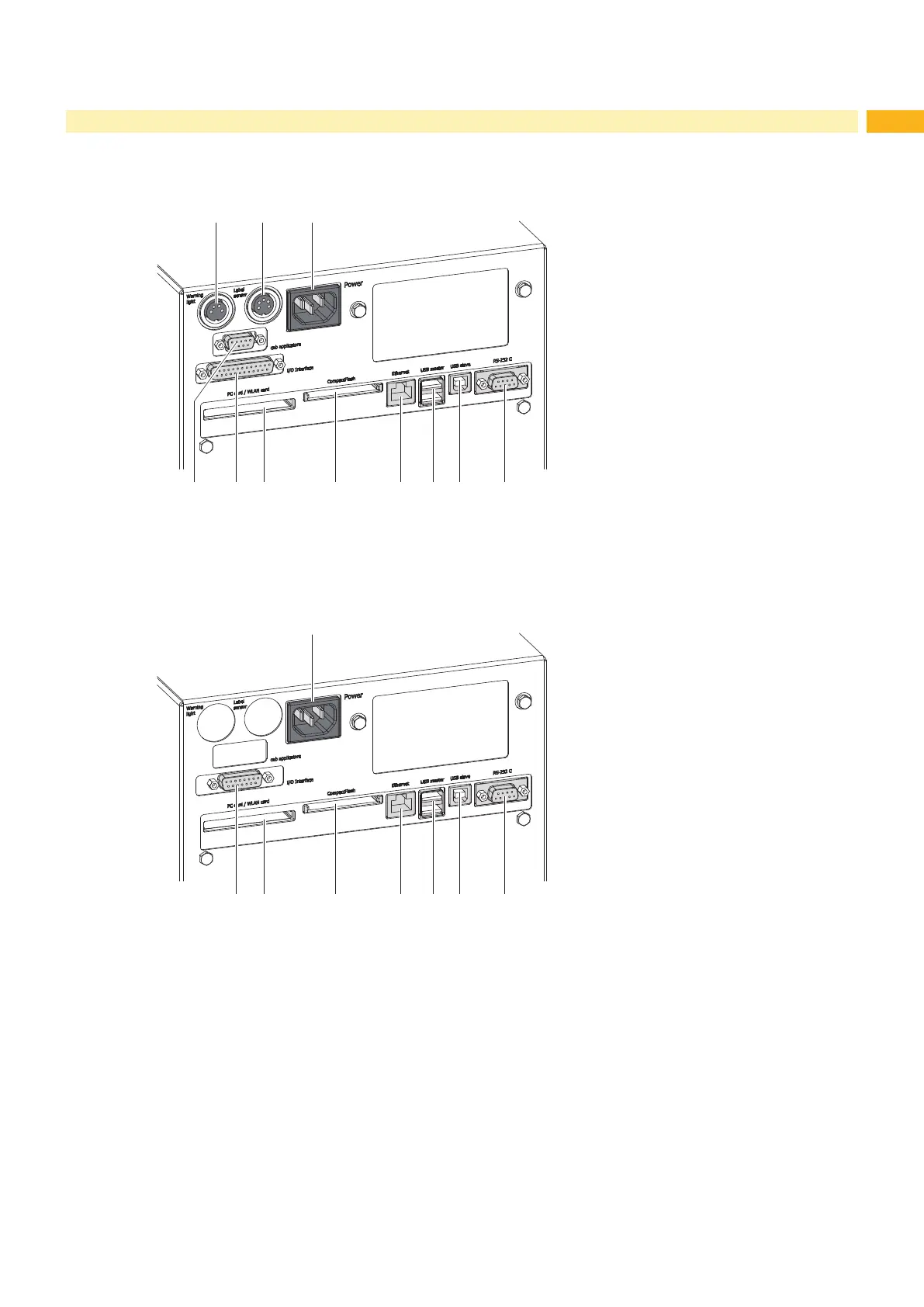

22 Connector warning light
23 Connector warning sensor labels
24 Power connection jack
25 Interface for cab applicators
26 I/O interface
27 Slot for PC Card Type II or WLAN card
28 Slot for CompactFlash memory card
29 Ethernet 10/100 Base-T
30 2 USB master ports for keyboard,
scanner or service key
31 USB high-speed slave port
32 Serial RS-232 C port
Fig. 4 Connections - Version with cab-I/O interface
24
33 27 28 29 30 31 32
24 Power connection jack
27 Slot for PC Card Type II or WLAN card
28 Slot for CompactFlash memory card
29 Ethernet 10/100 Base-T
30 2 USB master ports for keyboard,
scanner or service key
31 USB high-speed slave port
32 Serial RS-232 C port
33 OEM-I/O interface
Fig. 5 Connections - Version with OEM-I/O interface
