8 Labels
8.1 Label Dimensions

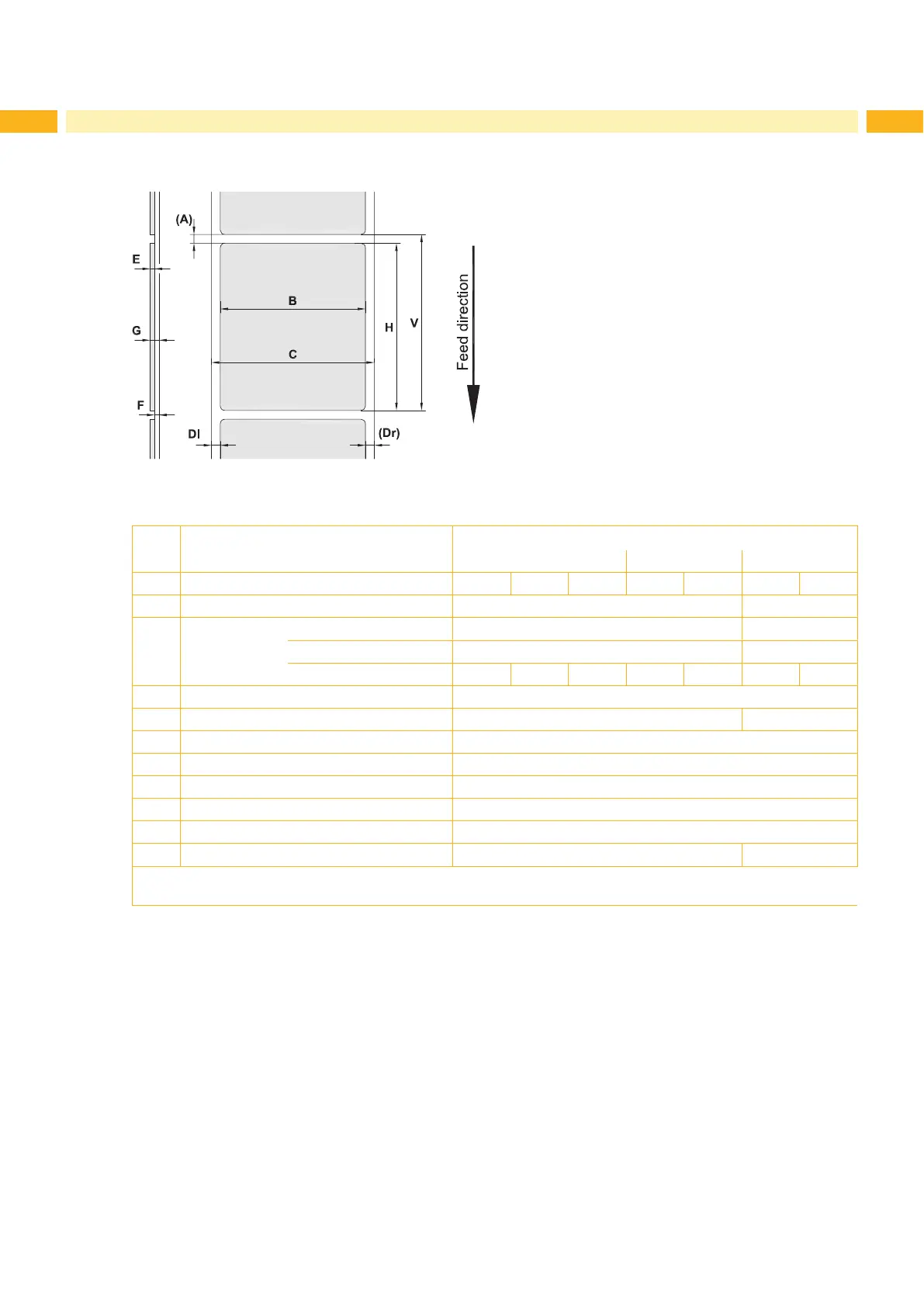

Fig. 14 Label dimensions
Dim. Designation Dim. in mm
PX4 PX4.3 PX6
dpi 203 300 600 203 300 203 300
B Label width 10 - 116 50 - 174
H Label height min. without backfeed 6 12
min. in peel-off mode 12 25
max. 5000 4000 1000 5000 4000 4000 3000
A Label distance > 2
C Width of liner 25 - 118 50 -178
Dl Left margin
≥0
Dr Right margin ≥0
E Label thickness 0,025 - 0,25
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,35
V Label feed > 8 >14
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
Table 8 Label dimensions
