CAB SQUIX User Manual

10 10
3 Touchscreen Display
The user can control the operation of the printer with the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs,
• Settingprintingparameters,e.g.heatleveloftheprinthead,printspeed,interfaceconguration,languageand
time of day (CongurationManual),
• Control stand-alone operation with a memory module (CongurationManual),
• Updatethermware(CongurationManual).
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer’s own commands.  Programming Manual for details.
Settings made on the touchscreen display make the basic settings of the label printer.
i
Notice!
It is advantageous, whenever possible, to make adaptations to various print jobs in the software.
3.1 Start Screen

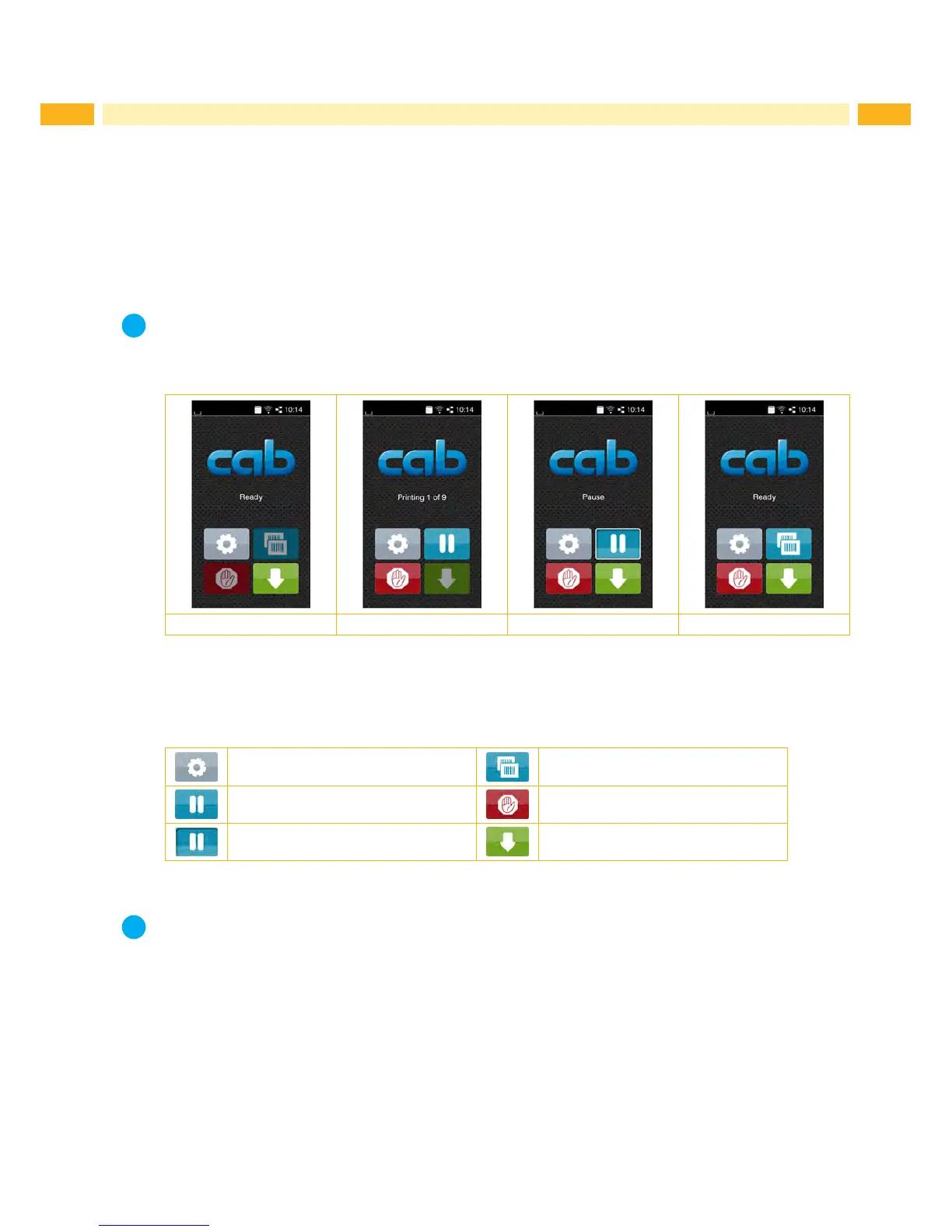

After switching on During printing In pause state After print job
Figure 6 Start screen
The touchscreen display is operated directly by touch:
• To open a menu or select a menu item lightly touch the corresponding symbol.
• Toscrollinlistsslidengerupordownonthedisplay.
Open the menu Repeat the last printed label
Interrupt the print job Cancel all print jobs
Continue the print job Feed a blank label
Table 1 Symbols on the start screen
i
Notice!
Inactive symbols are shaded.

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
