CAB SQUIX User Manual

30 30
8 Media
8.1 Media Dimensions
Labels Endless material / Shrink tubes
Feed direction

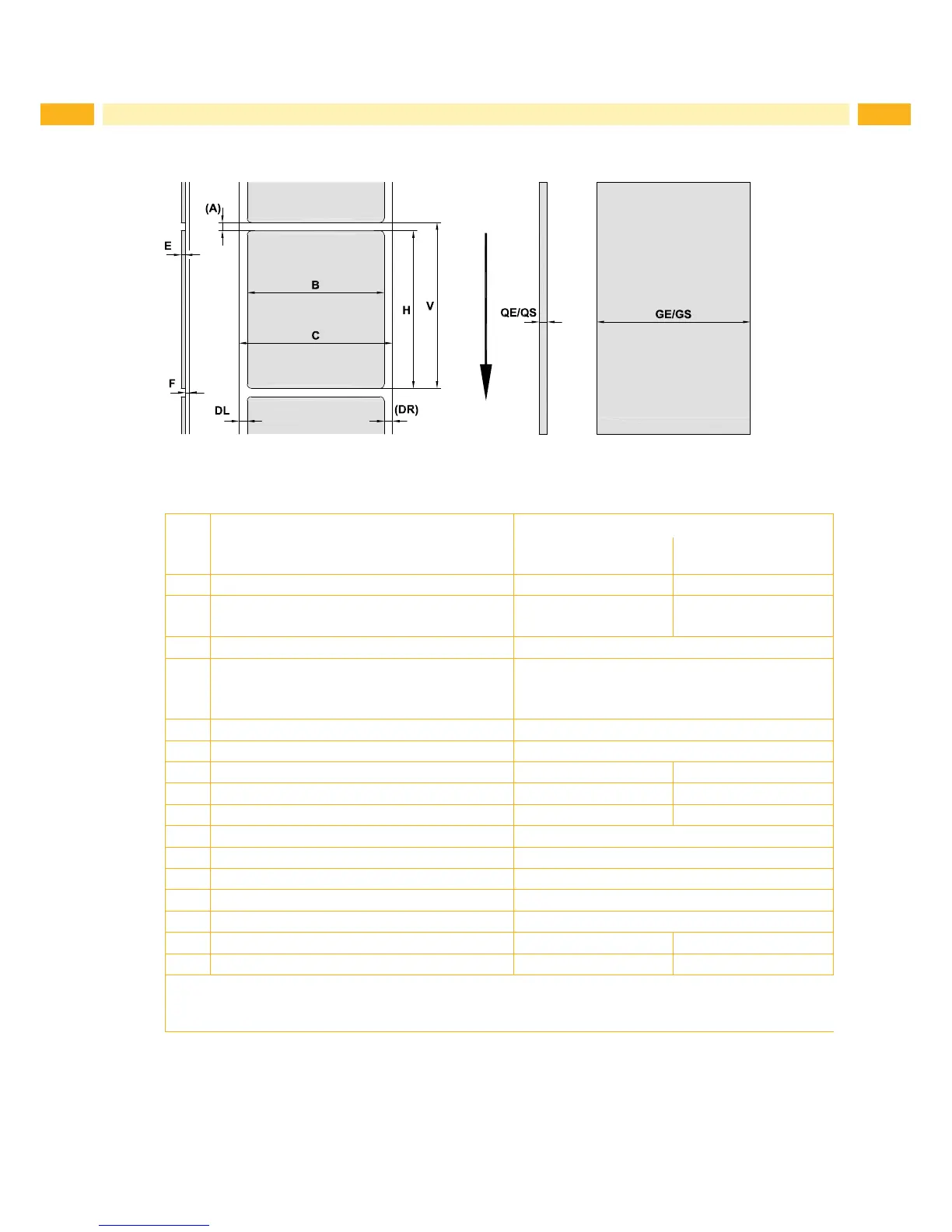

Figure 25 Media dimensions
Dim. Designation Dim. in mm
4/4P
4.3/4.3P
4M/4MP/4MT
4.3M/4.3MP/4.4MT
B Label width 20 - 116 4 -110
H
Label height
in peel-off mode
6 - 2000
12 - 200
4 - 2000
12 - 200
- Tear-off length > 30
- Cut length
with cutter
with perforation cutter
> 5
> 5
- Perforation length > 2
A Label distance > 2
C Width of liner 24 - 120 9 - 114
GE Width of endless material 24 - 120 4 - 114
GS Width of shrink tubes - 4 - 85
DL Left margin
≥0
DR Right margin ≥0
E Label thickness 0,03 - 0,60
F Liner thickness 0,03 - 0,13
QE Thickness of endless material 0,05 - 0,50
QS Thickness of shrink tubes -
≤1,1
V Label feed > 8 > 6
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Notethebendingstiffness!Materialmustbeexibletofollowtheradiusoftheprintroller!
Figure 26 Media dimensions

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
