4.4 Removing and Installing the Rewind Guide Plate, Dispense Plate or Tear-off Plate

To convert the printer for use in another operating mode, a rewind guide plate (2a), a dispense plate (2b)

or a tear-off plate (2c) may need to be installed.

1 1

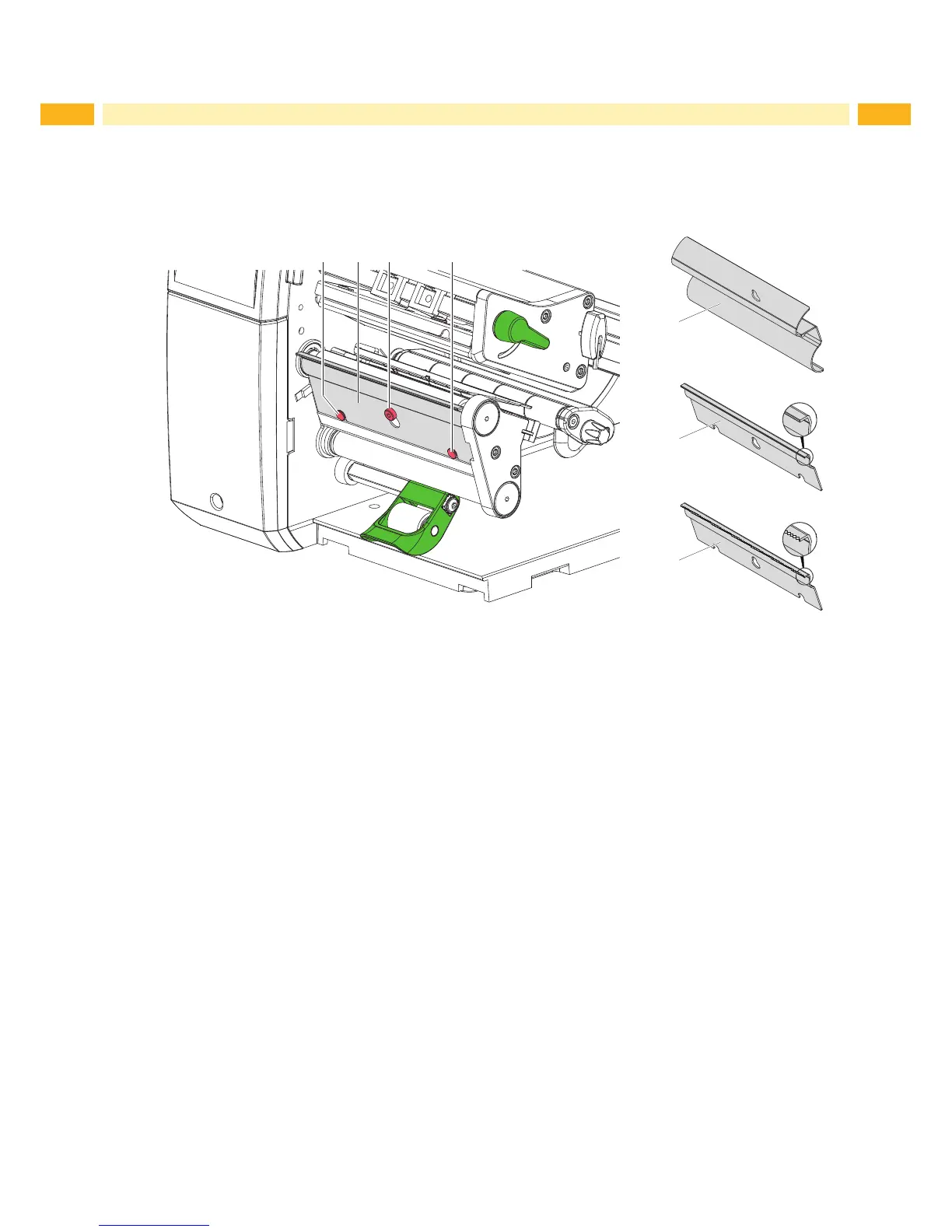

Figure 19 Removing and installing the rewind guide plate, dispense plate or tear-off plate

Removing a plate

 Loosen screw (3) several turns.

 Slide plate (2) upwards and remove it.

Installing a plate

 Place plate (2) onto the screw (3) and slide it downwards behind the pins (1).

 Tighten screw (3).
