4.6 Setting the Feed Path of the Transfer Ribbon
Transferribbonwrinklingcanleadtoprintimageerrors.Thetransferribbondeection(3)canbeadjustedsoasto
prevent wrinkles.
i
Notice!
A maladjustment of the head locking system may also cause ribbon wrinkling ( 4.3 on page 19).
1
2
3

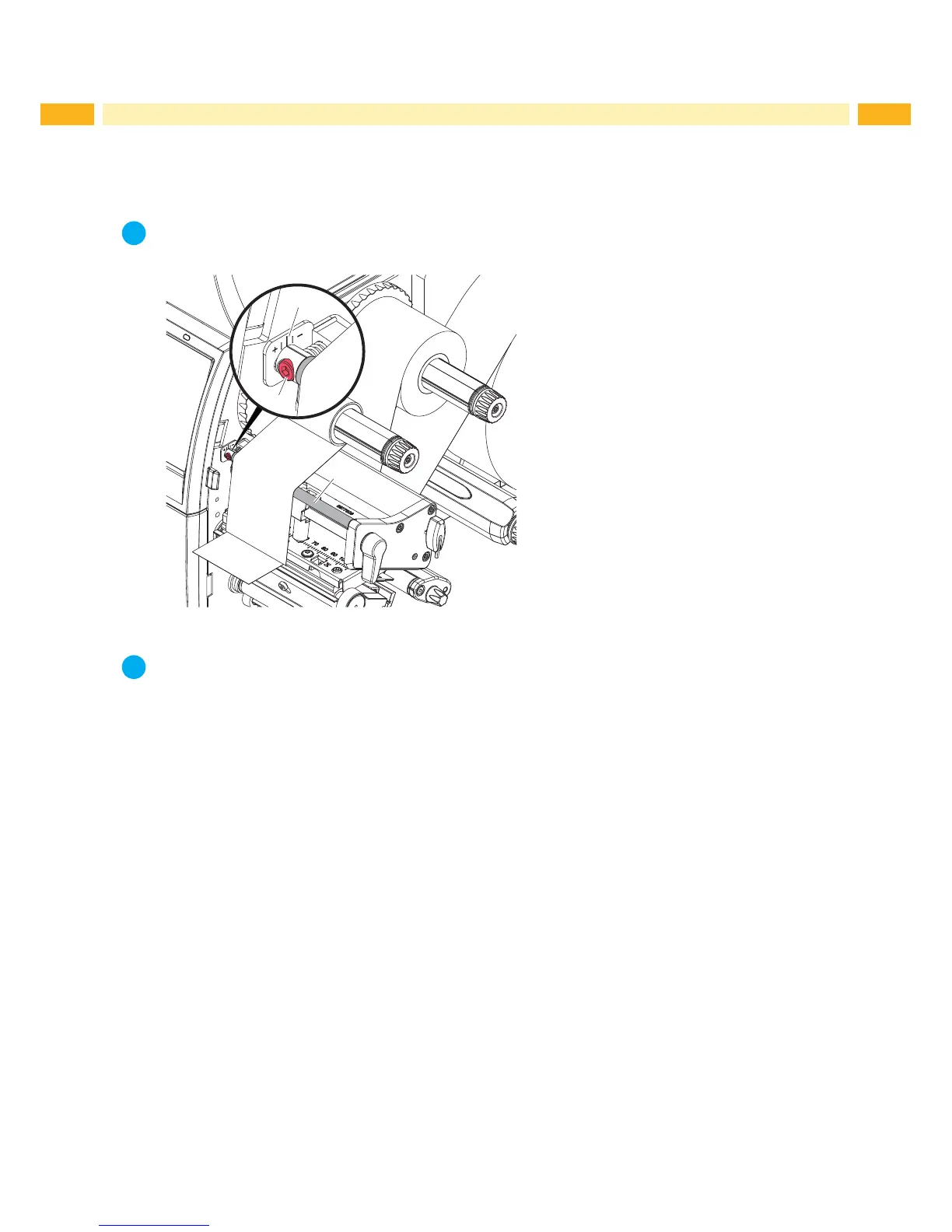

Figure 22 Setting the feed path of the transfer ribbon
i
Notice!
The adjustment is best carried out during printing.
 Read current setting on the scale (1) and record if necessary.
 Turn screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the ribbon is tightened, and the outer edge is tightened in the - direction.
4 Loading Material

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
