CAB SQUIX User Manual

17
4.1.6 Winding up the Liner in Peel-Off mode
6 75
2
3
4
1
8

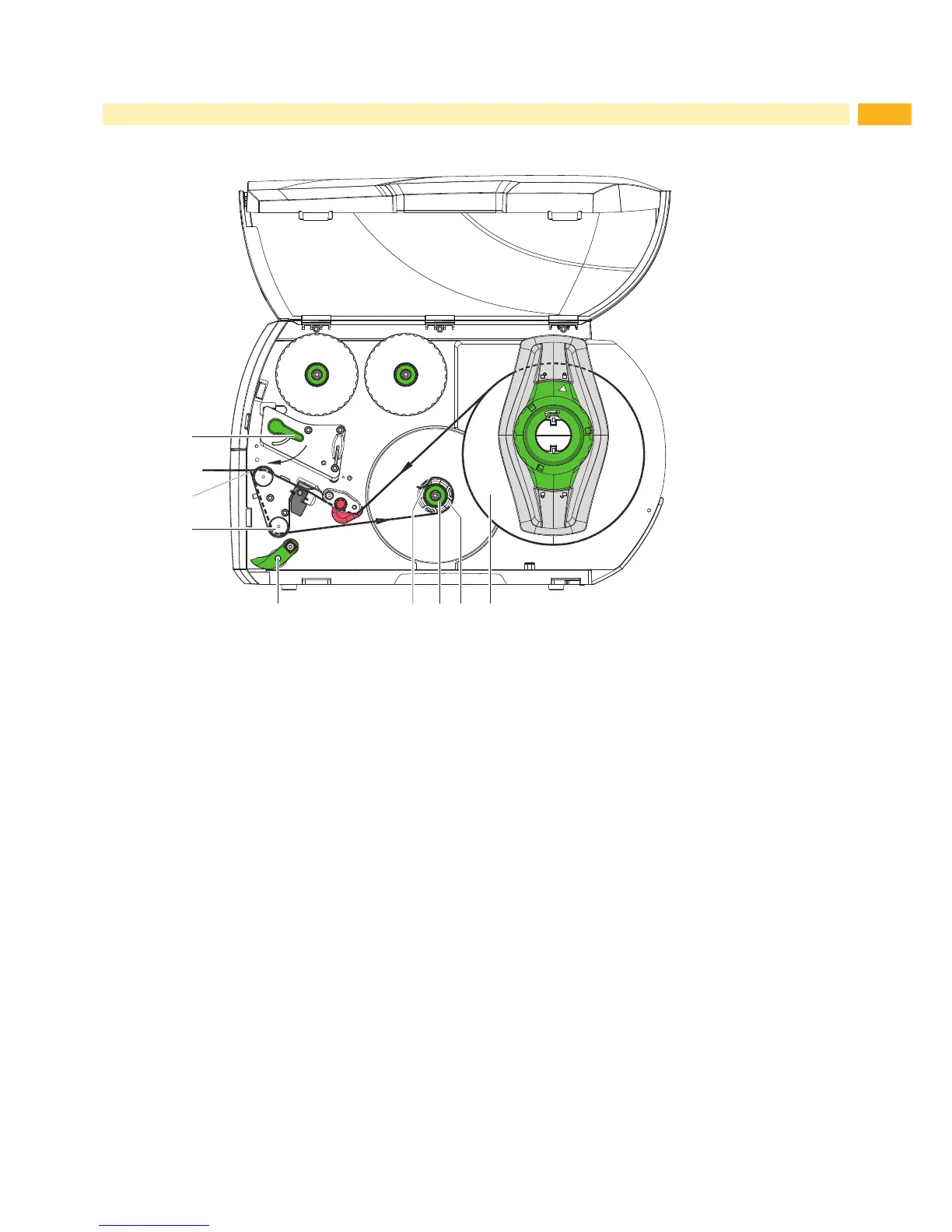

Figure 15 Guidance of the material in peel-off mode
In Peel-Off mode, the labels are removed after printing, and only the liner is wound up internally.
1. Lift the pinch roller (4) off the rewind assist roller (3).
2. Removelabelsfromtherst100mmoftheliner.
3. Guide liner to the rewinder (7) around the dispense plate (2) and the rewind assist roller (3).
4. Holdrewinder(7)rmlyandturnknob(6)clockwiseuntilitstops.
5. Push liner under a bracket (5) of the rewinder (7) and align the outer edge of the strip to the media roll (8).
6. Turn knob (6) counterclockwise until it stops.
Therewinderisfullyspread,thusgrippingthelinerrmly.
7. Turn rewinder (7) counterclockwise to tighten the liner.
8. Position the pinch roller (4) centrally to the liner.
9. Swing the pinch roller (4) against the rewind assist roller (3).
10. Turn lever (1) clockwise to lock the printhead.
The label roll is loaded for use in peel-off mode.
4 Loading Material

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
