CAB SQUIX User Manual

6 6
2 Installation

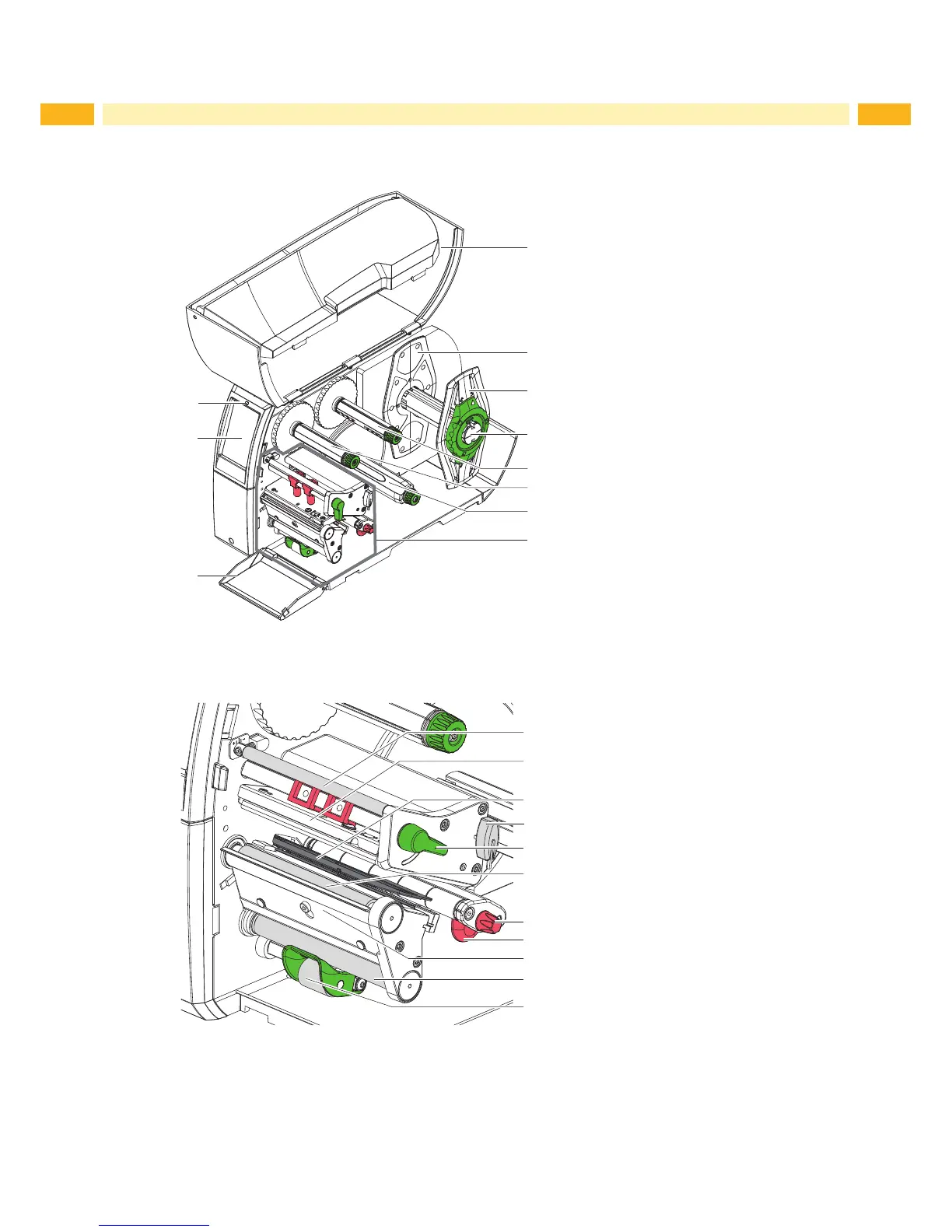

2.1 Device Overview
3
5
6
7
8
4
1
9
10
2
11
1 Cover
2 Margin stop
(only "M" devices)
3 Margin stop
4 Roll retainer
5 Ribbon supply hub
6 Ribbon take-up hub
7 Internal rewinder
(only "P" devices)
8 Print unit
9 Cover
(not at SQUIX 4P/4.3P/4MT/4.3MT)
10 Touchscreen display
11 LED "Power on"
Figure 1 Overview
13
14
18
19
16
12
21
22
15
17
20
12 Ribbondeection
13 Printhead retainer with printhead
14 Label sensor
15 Allen key
16 Printhead locking lever
17 Print roller
18 Guide adjusting knob
19 Guide
20 Dispense plate
21 Rewind assist roller
(only "P" devices)
22 Locking system
(only "P" devices)
Figure 2 Print unit

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
