CAB SQUIX User Manual

18 18
4.2 Loading Fanfold Media
6
1
2
3
4
5

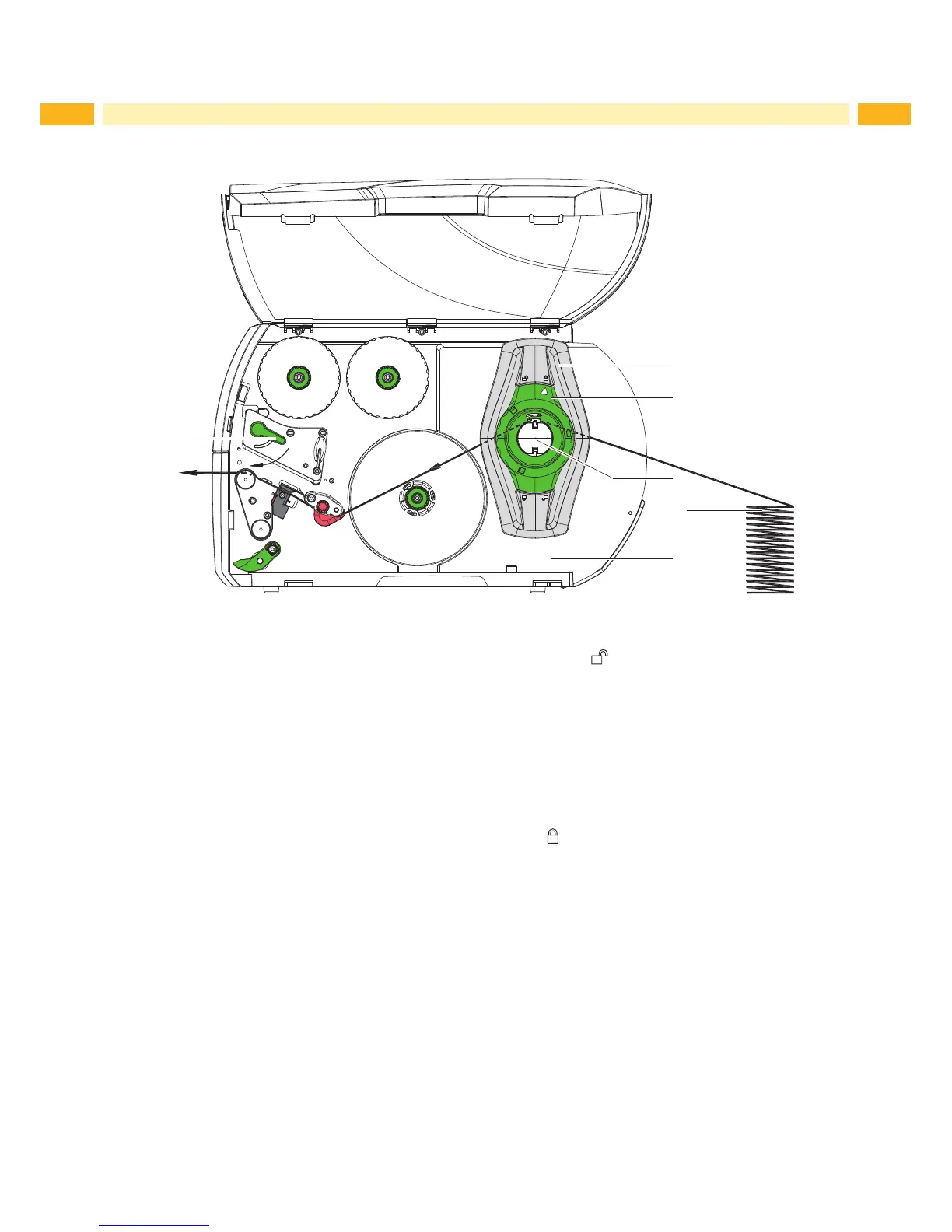

Figure 16 Feed path of fanfold media
1. Turn ring (2) counterclockwise, so that the arrow points to the symbol , and thus release the margin stop (1).
2. Move the margin stop(s) (1) in such a position that
 SQUIX 4/4P
the media can pass between the margin stop and the chassis.
 SQUIX 4M/4MP/4MT
the media can pass between the two margin stops.
3. Position media stack (4) behind the printer. Ensure that labels on the strip are visible from above.
4. Guide the media strip over the roll retainer (3) to the print unit.
5. Move the margin stop (1) against the media strip until chassis (5) and margin stop (1) or both margin stops touch
the media strip without clamping or bending it.
6. Turn ring (2) clockwise, so that the arrow points to the symbol ,andthusxthemarginstop(1)ontheroll
retainer (3).
7. Insert media strip into printhead ( 4.1.2 on page 14).
8. Set the label sensor ( 4.1.3 on page 14).
9. Set the head locking system ( 4.3 on page 19).
10. Turn lever (6) clockwise to lock the printhead.
4 Loading Material

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
