Cafection Encore VENTI - Main Board Schematic Diagram

ENCORE VENTI Rev. 3 2021-10
13
www.cafection.com 800-561-6162
SERVICE & INSTALLATION MANUAL for Cafection's Encore Venti

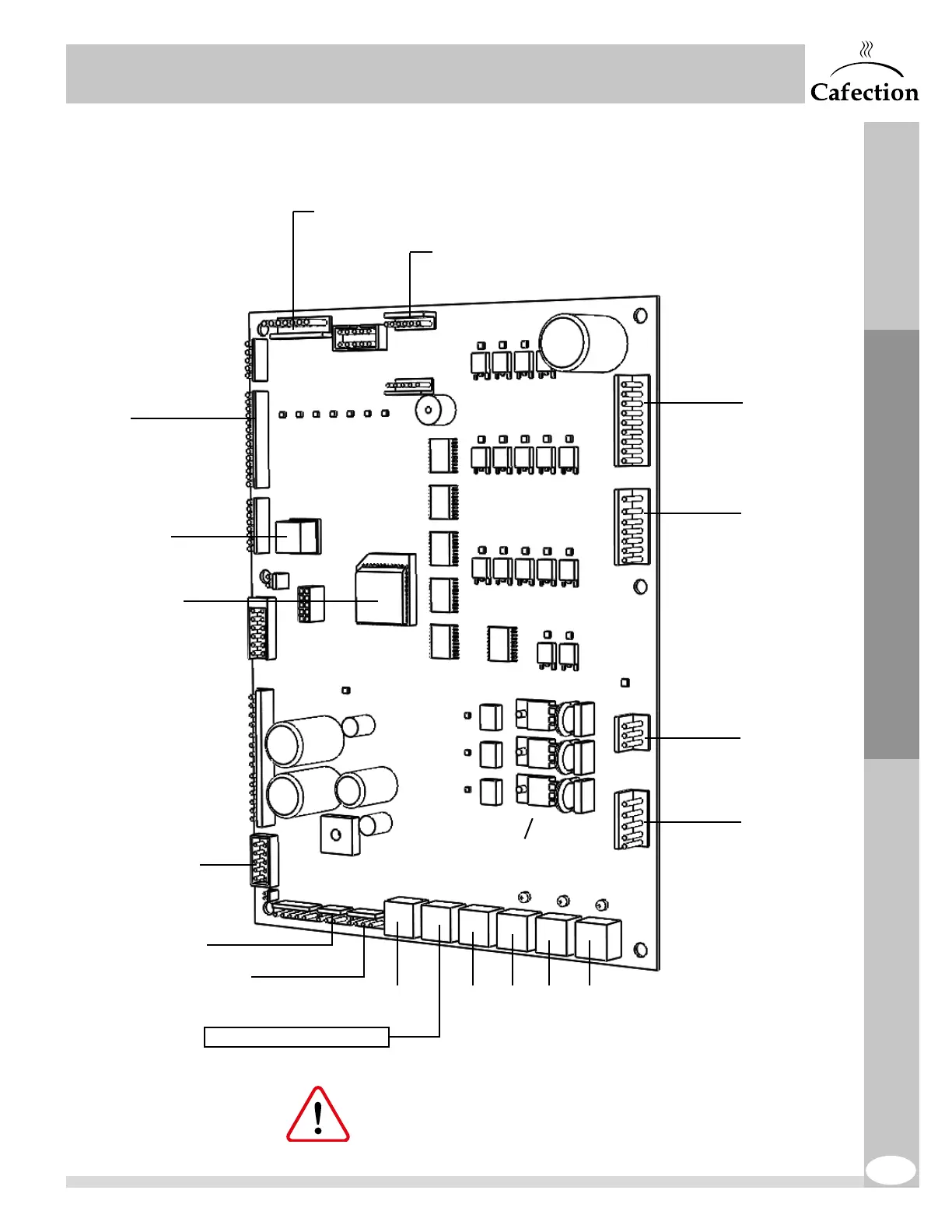

This is a schematic reference drawing only. Not to scale.
The equipment should always be unplugged from the
electrical outlet before servicing any component on this
main board.
3.6 Main Board
J11 - MDB port - Coin changer / bill acceptor / card reader
Expansion #2 - Thermostat board
J22 -
Overflow
Filter paper
Low water level
J14 - COM port -
Link to touch screen
computer
J18 - 24V DC
output
(motor coffee
and soluble)
J6 - 24V DC outputs -
Two Fans
J12 - 120V AC
input
J19 - 120V AC
output
HIGH VOLTAGE AREA
J3 - 24V AC input
Reset button
(red)
Microcontroller
(version number)
J27 - 24V DC
output
(motor and valves)
SW1 SW3 SW4 SW5 SW6
Reference Drawings
SW2 - Setup button (white)
