3.6.3 BPS30-1, BPS45-1 - 1 ø mode Output Wiring Diagram
Figure 3-7 shows the required output connections for a BPS30-1, BPS45-1 in single-phase mode output
configuration (rear-view perspective). See section 3.6.3 for the BPS30-3 or BPS45-3 in three-phase
mode.
Always disconnect all input power from the BPS before removing the front panel cover that provides
access to the input and output terminal connections. Route the wires from the back of the BPS to the
front in the provided cable guides.

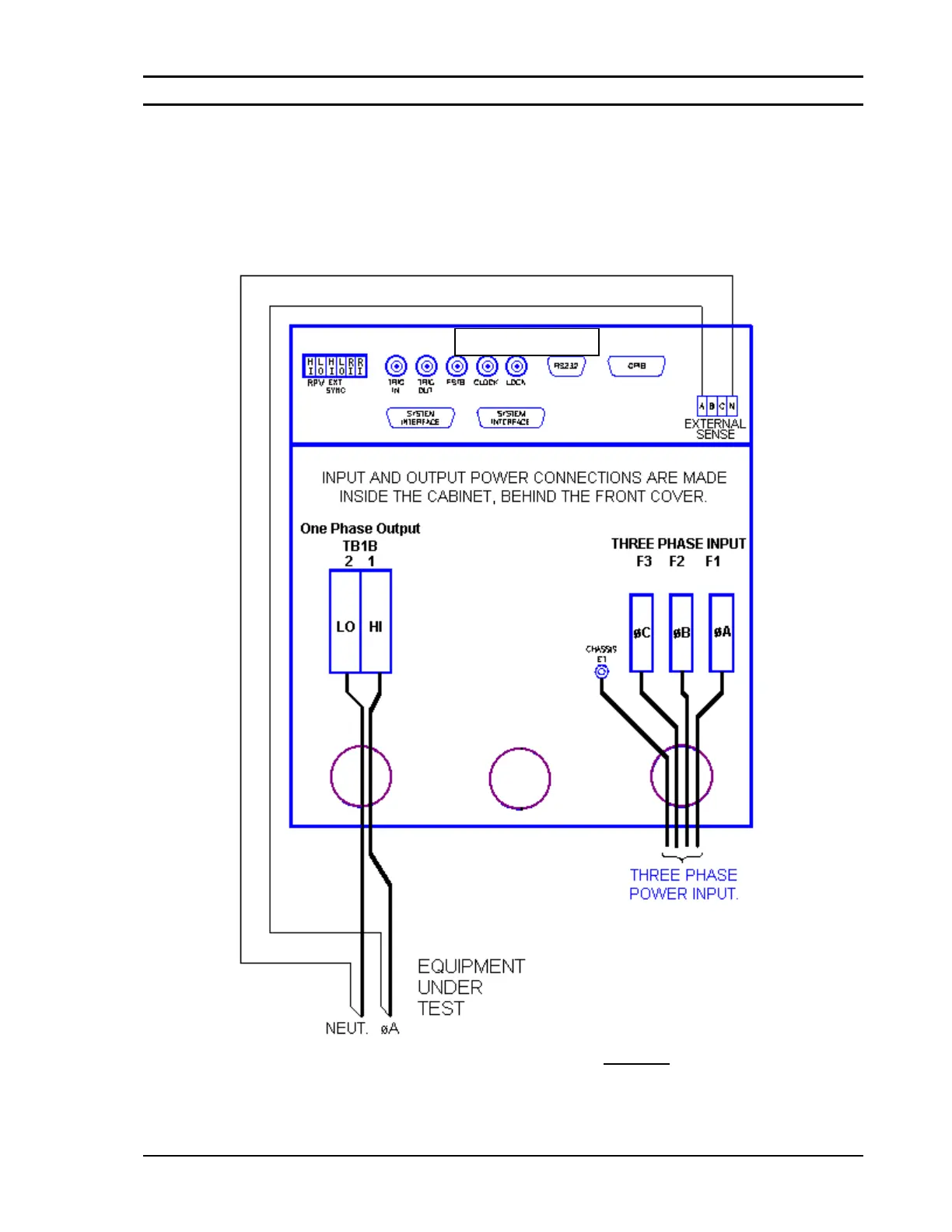

Figure 3-7: BPS30-1 / BPS45-1 Output Wiring (Rear view)
BPS30-1 or BPS45-1
