4.6.3 Output Wiring Diagram
Figure 4-7 shows the required output wiring connections for a BPS75 or BPS90 (rear panel view).
Always disconnect all input power from the BPS before removing the rear terminal block access panel.
Route the load wires through the strain relief clamps. Depending on wire size required, it may be
necessary to use two strain relief holes with 2 wires through each as shown.

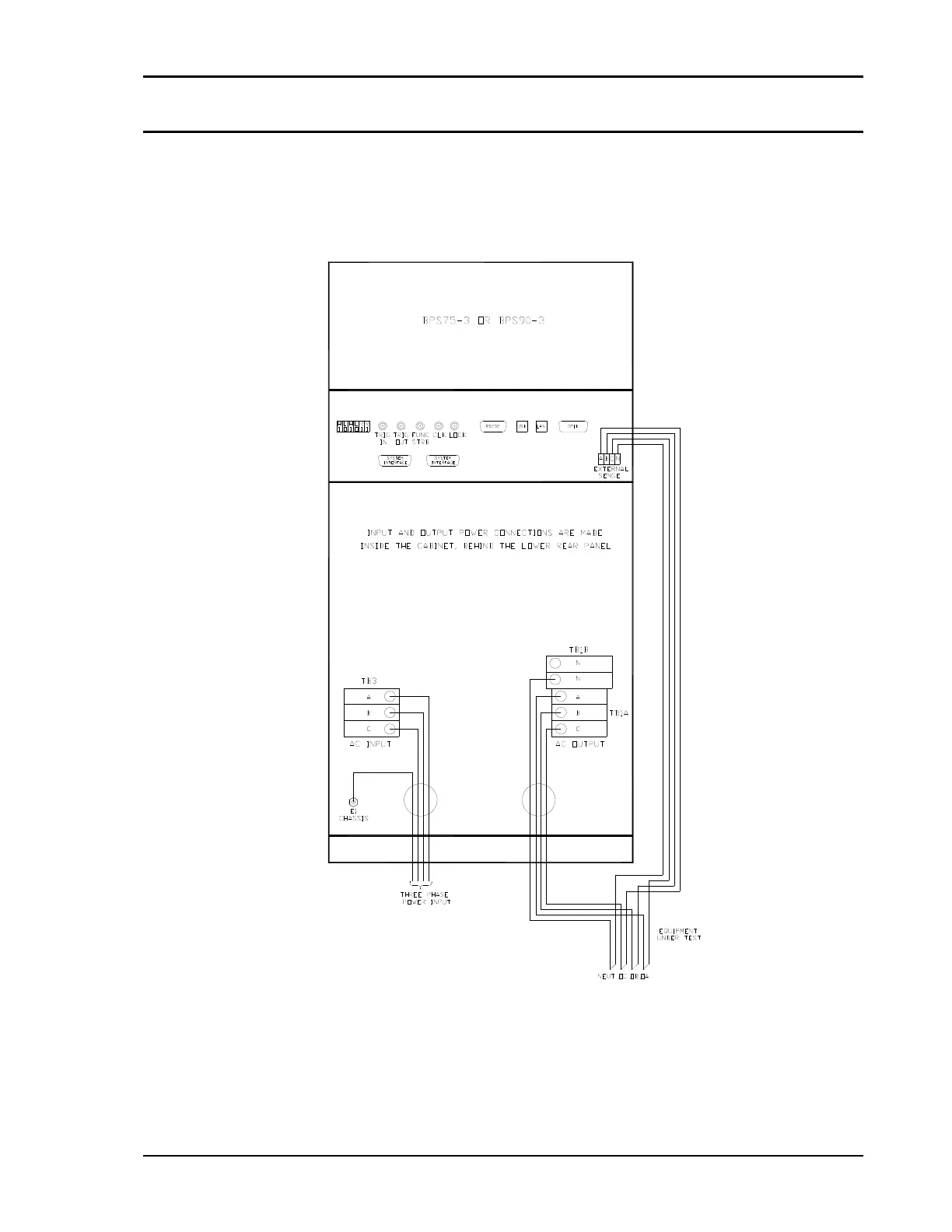

Figure 4-7: BPS75-3 or BPS90-3 Output Wiring (Rear panel view)
