4.6.4 BPS150-3 or BPS180-3 Parallel Output Wiring Diagram
Figure 4-8 shows the required output connections for a two chassis dual chassis parallel mode output
configuration (rear view). Always disconnect all input power from the BPS system before removing the
rear panel cover that provides access to the input and output terminal connections. Two chassis BPS
systems are shipped with external output terminal blocks that enable the output wiring from two chassis to
be combined, providing a single point of connection to the EUT. These blocks must be installed in a
suitable safety enclosure. It is important to match the length of the output wiring to the common output
terminal block to ensure current sharing between the two power supplies.

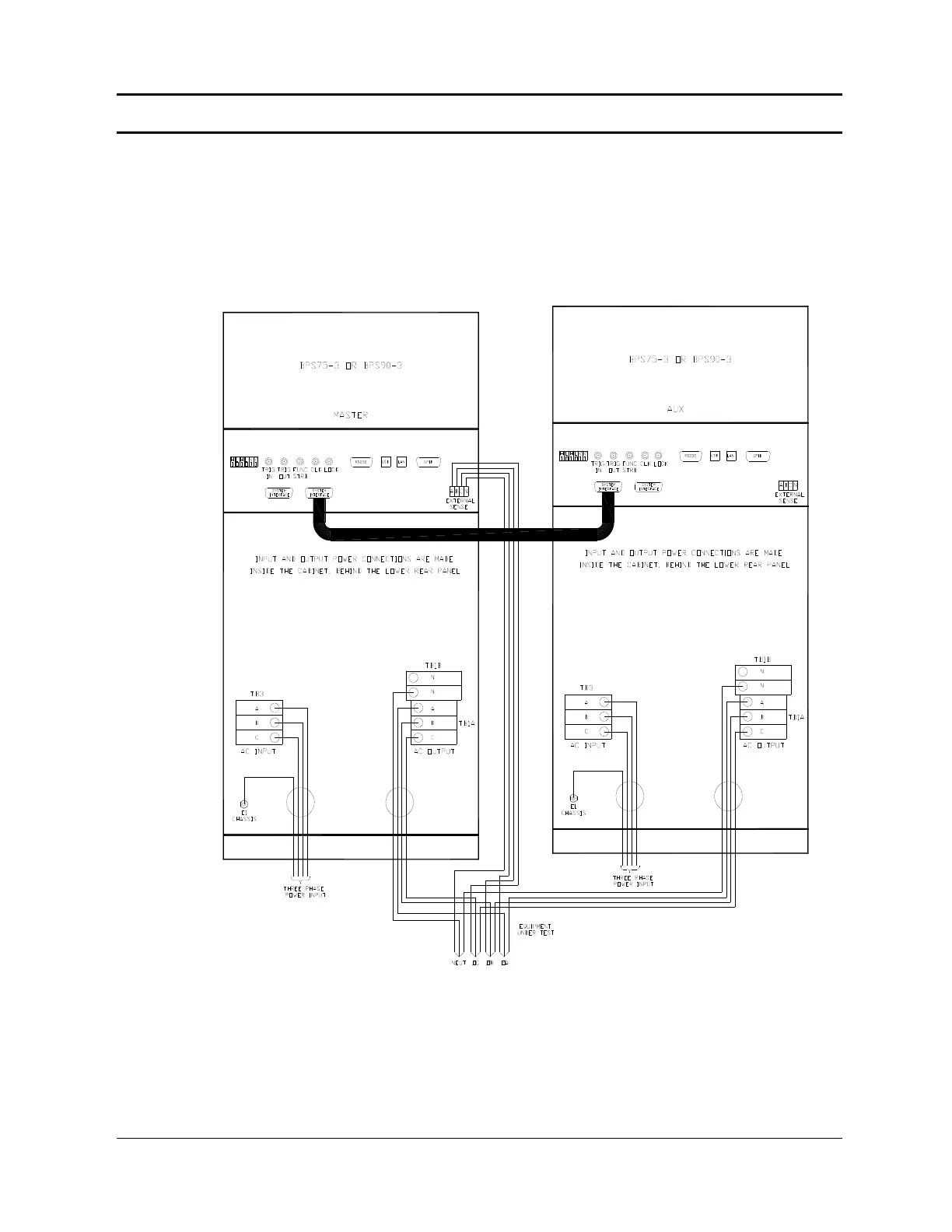

Figure 4-8: BPS150-3 or BPS180-3 - 2 Chassis Output Wiring (Rear view)
