Using Sentinel
CX3001 v7.0 © Calnex Solutions 28
calnexsol.com |

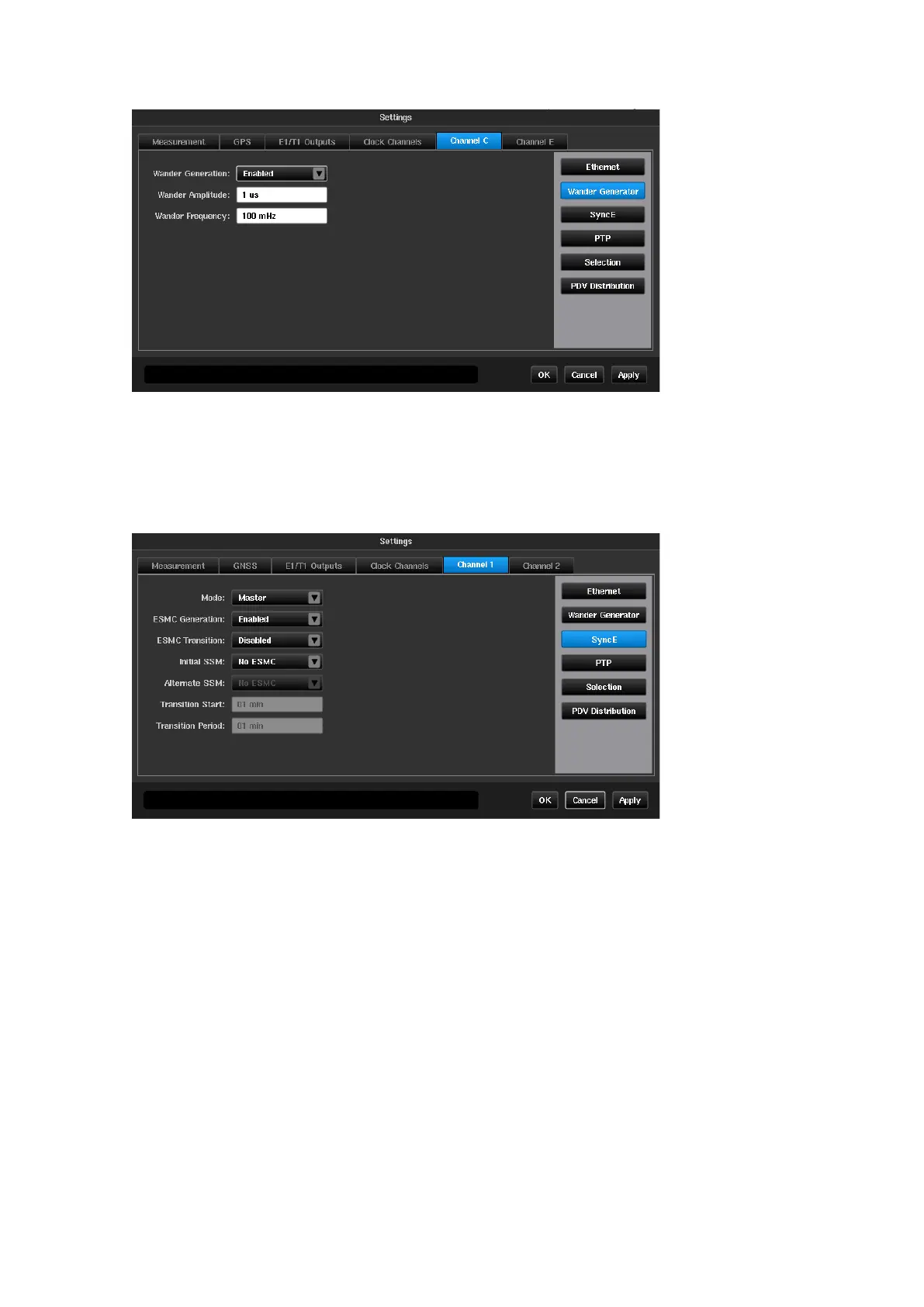

Wander Generator
This page contains parameters related to Wander Generation for Synchronous Ethernet.
Note: These parameters are applied only when Packet module is configured as SyncE Master (see SyncE page
for further details). When the Packet module is acting as Master and Wander Generation is Enabled ,
Sentinel will generate sine wander according to parameters specified on this page. Wander Generation is
not supported by 10G modules.
SyncE
This window contains parameters related to the Packet module in Synchronous Ethernet.
Mode
Packet module can function in two modes – Master or Slave . In Master mode
the Packet module is SyncE master in the connected network segment. It is
source of synchronization clock signal and it can send ESMC messages over
the network in accordance to specified scenario. In Slave mode the Packet
module can measure TIE of extracted synchronization signal and it can
receive ESMC messages
ESMC Generation
This parameter enables or disables ESMC messages generation scenario.
Works only in Master mode
ESMC Transition
This parameter enables or disables periodic ESMC transition
Initial SSM
Specifies initial SSM in scenario
Alternate SSM
Specifies alternate SSM in scenario
Transition Start
Time from starting measurement when first transition occurs
Transition Period
Period between two adjacent ESMC transitions
