5 ÷ 10
p. 11 - Manual FA00442-EN - 12/2017 - © CAME S.p.A. - Translated original instructions

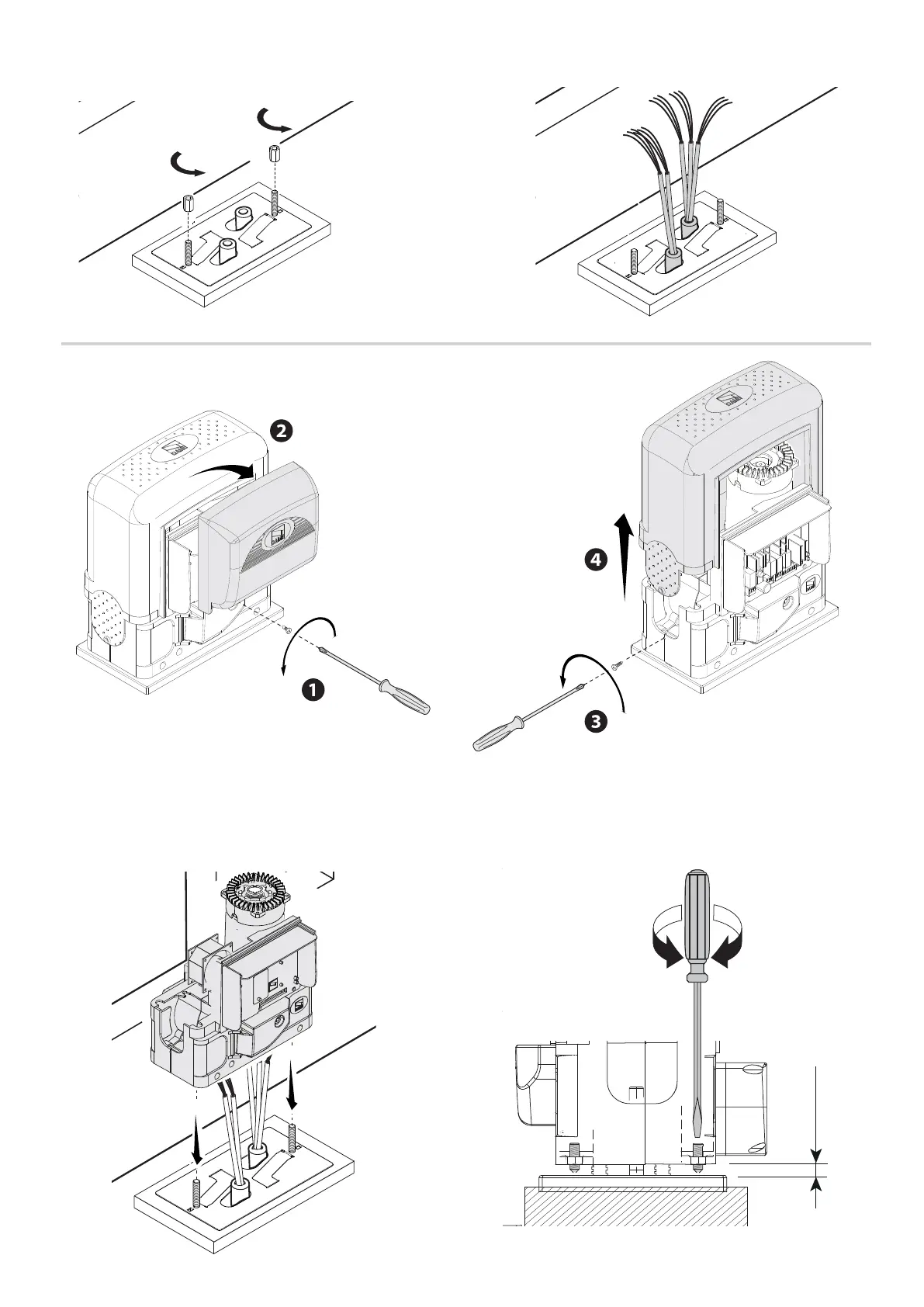

PREPARING THE GEARMOTOR
Remove the front cover and gearmotor cover.
Place the gearmotor above the anchoring plate.
Warning! The electrical cables must run under the gearmotor casing and must not touch any parts, such as the motor, transformer, and so on - that
heat up during operation.
Raise the gearmotor by 5 to 10 mm from the plate by turning the threaded feet, to make room for further pinion and rack adjustments.
Remove the nuts from the bolts.
Fit the electric cables into the tubes so that they come out about 600 mm.
