p. 13 - Manual FA00442-EN - 12/2017 - © CAME S.p.A. - Translated original instructions

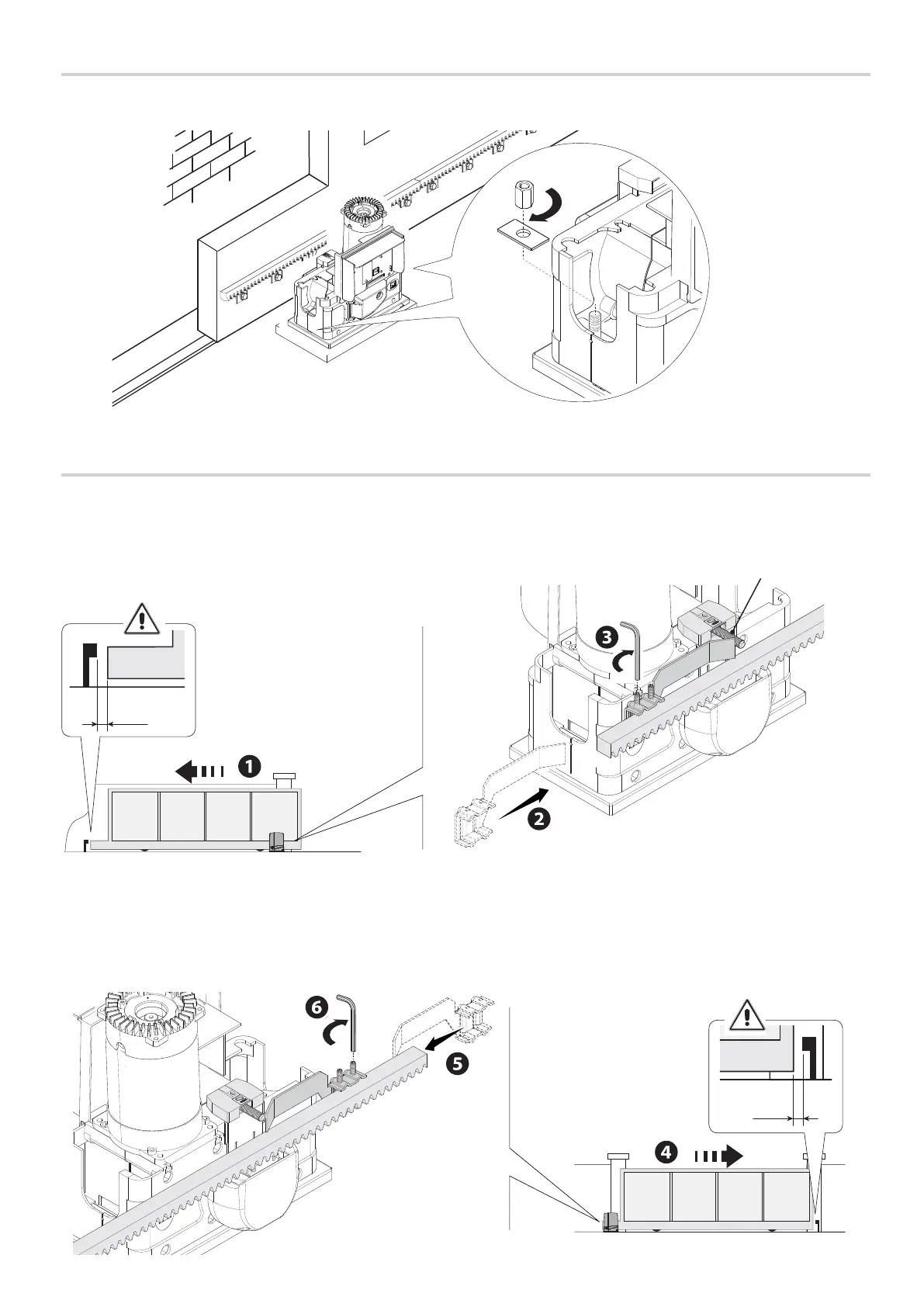

FASTENING THE GEARMOTOR
Once adjusting is complete, fasten the gearmotor to the plate using the plates and nuts.
Spring
For closing:
- close the gate ;
- fi t the closing limit-switch fi n into the rack until the micro-switch is activated (spring) and fasten it using the grub screws .
ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- open the gate ;
- fi t the opening limit-switch tab onto the rack until the micro switch activates (spring) and fasten it using the grub screws .
