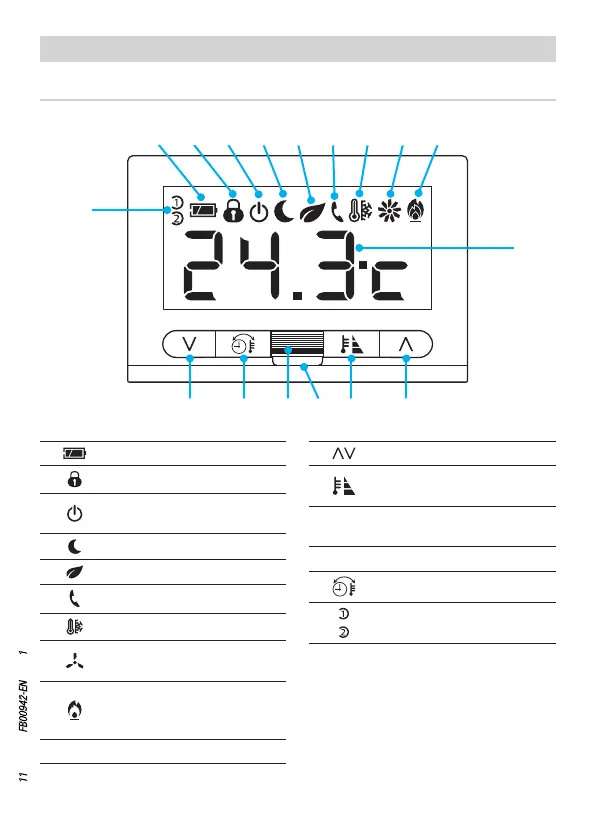

①
Battery charge status.
②
Temperature regulation lock.
③
Exclusion of control with frost
protection active.
④
NIGHT temperature level active.
⑤
ECO temperature level active.
⑥
Remote activation.
⑦
Frost protection temperature.
⑧
Cooling mode active. Animated
icon = cooling in progress.
⑨
Heating mode active.
Animated icon = heating in
progress.
⑩
Temperature detected.
⑪
Buttons to vary the values.
⑫
Operating temperature level selec-
tion (COMFORT, ECO and NIGHT).
⑬
Tab for removing the programmable
thermostat from the frame.
⑭
Temperature sensor.
⑮
Temperature or clock display.
⑯
Active user profile.
Device description
Description of the icons on the display and function of the front buttons
