CAME BXV Series - Dimensions; Limits to use

p. 8 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

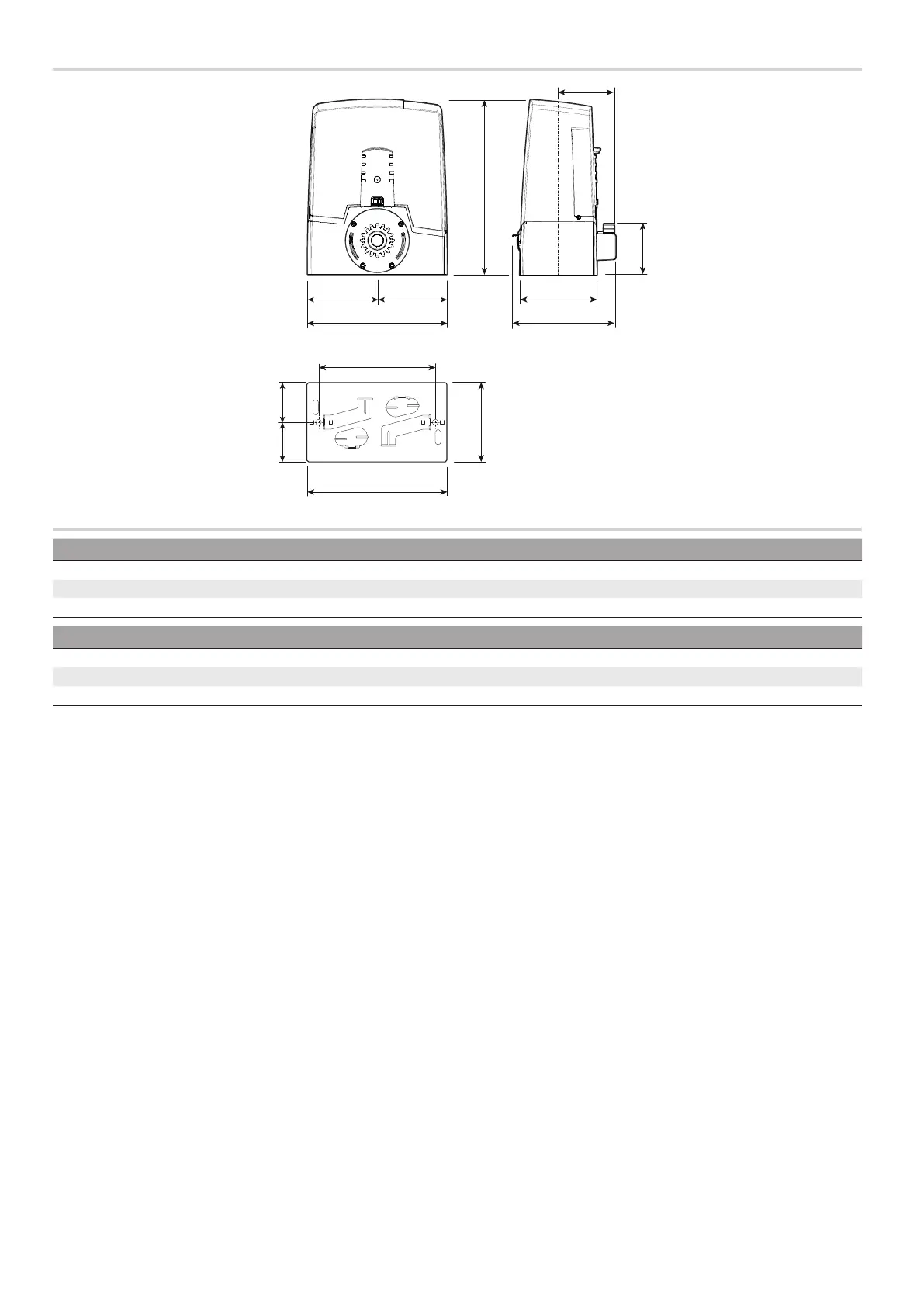

Dimensions
363
212
160
106
117
290
145 145
300
170
250
85 85
Limits to use
MODELS BXV04AGS BXV06AGS BXV08AGS BXV10AGS BXV04RGS BXV06RGS BXV08RGS BXV10RGS
Pinion module 4 4 4 4 4 4 4 4
Maximum gate-leaf length (m) 14 18 20 20 14 18 20 20
Maximum leaf weight (kg) 400 600 800 1000 400 600 800 1000
MODELS BXV06AGM BXV10AGM BXV04ALS BXV06ALS BXV08ALS BXV10ALS
Pinion module 4 4 4 4 4 4
Maximum gate-leaf length (m) 18 20 14 18 20 20
Maximum leaf weight (kg) 600 1000 400 600 800 1000
