CAME FAST 70 User Manual

200
235
230
0
50
100
150
200
250
300
350
1 1,25 1,5 1,75 2 2,25 2,5 2,75
p.
3
3 - Manual code:
FA00095-EN
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

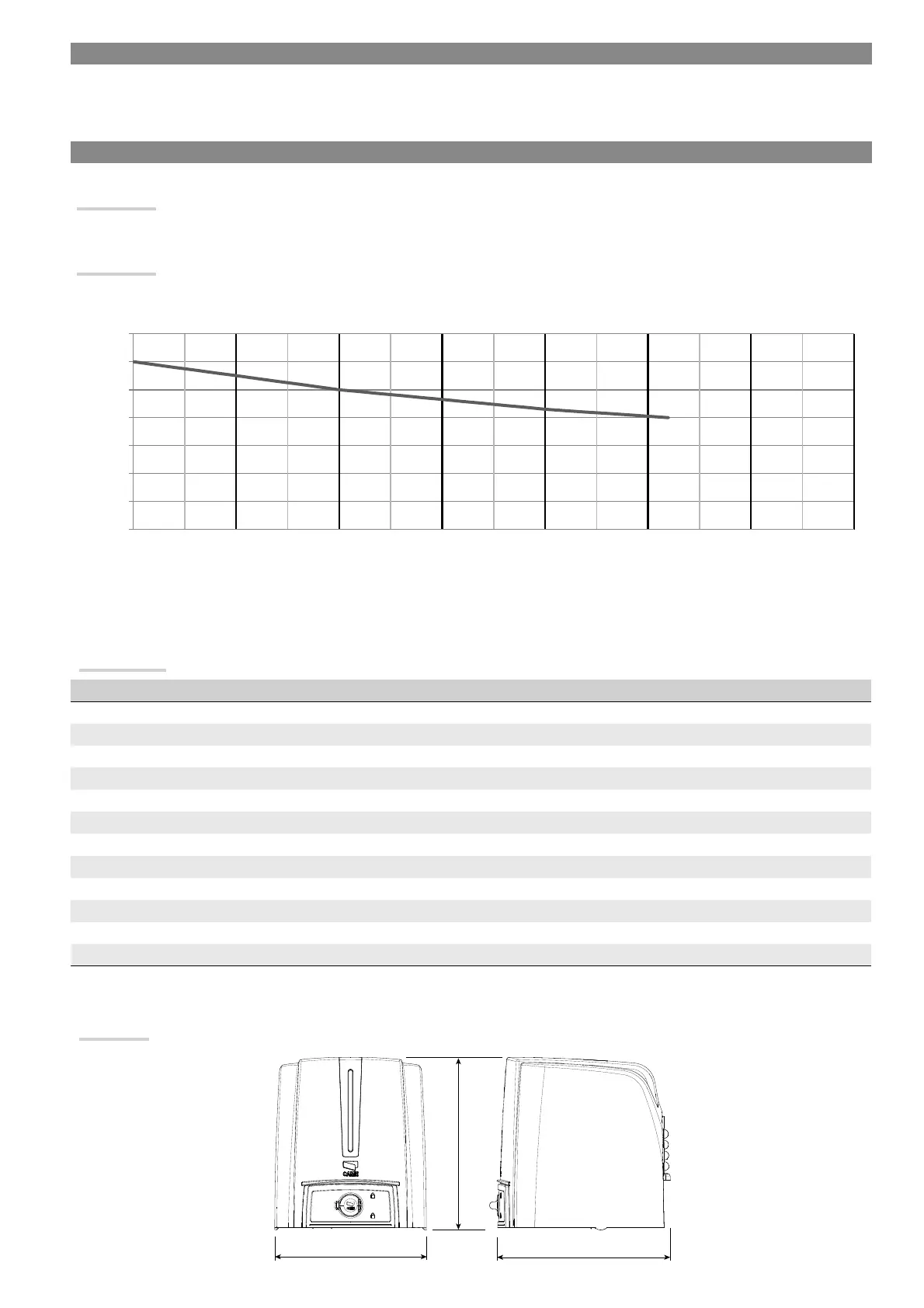

Technical data
Type FA7024CB
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Power supply motor (V) 24 DC
Stand-by consumption (W) 5.5
Stand-by consumption with the RGP1 (W) module 0.5
Power (W) 140
Torque (Nm) 180 max
Opening time at 90° (s) 13 ÷ 30
Duty cycle (%) INTENSIVE USE
Operating temperature (°C) -20 ÷ +55
Insulation class I
Weight (Kg) 12
DESCRIPTION
Irreversible operator with control board and segmented graphic display plus jointed transmission-arm for swing gates with leaves up to 2.3 m long.
Intended use
This operator is designed to power swing gates for residential and apartment block use.
 Any installation and/or use other than that specifi ed in this manual is forbidden.
Limits to use
LEGEND
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
Gate-leaf weight (Kg)
Gate-leaf length (m)
Dimensions
(mm)
⚠
We suggest you always fi t an electrolock onto swing gates for a more reliable closure.

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
