CAME FAST 70 User Manual

p.
25
25 - Manual code:
FA00095-EN
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
RELEASE
LOCK

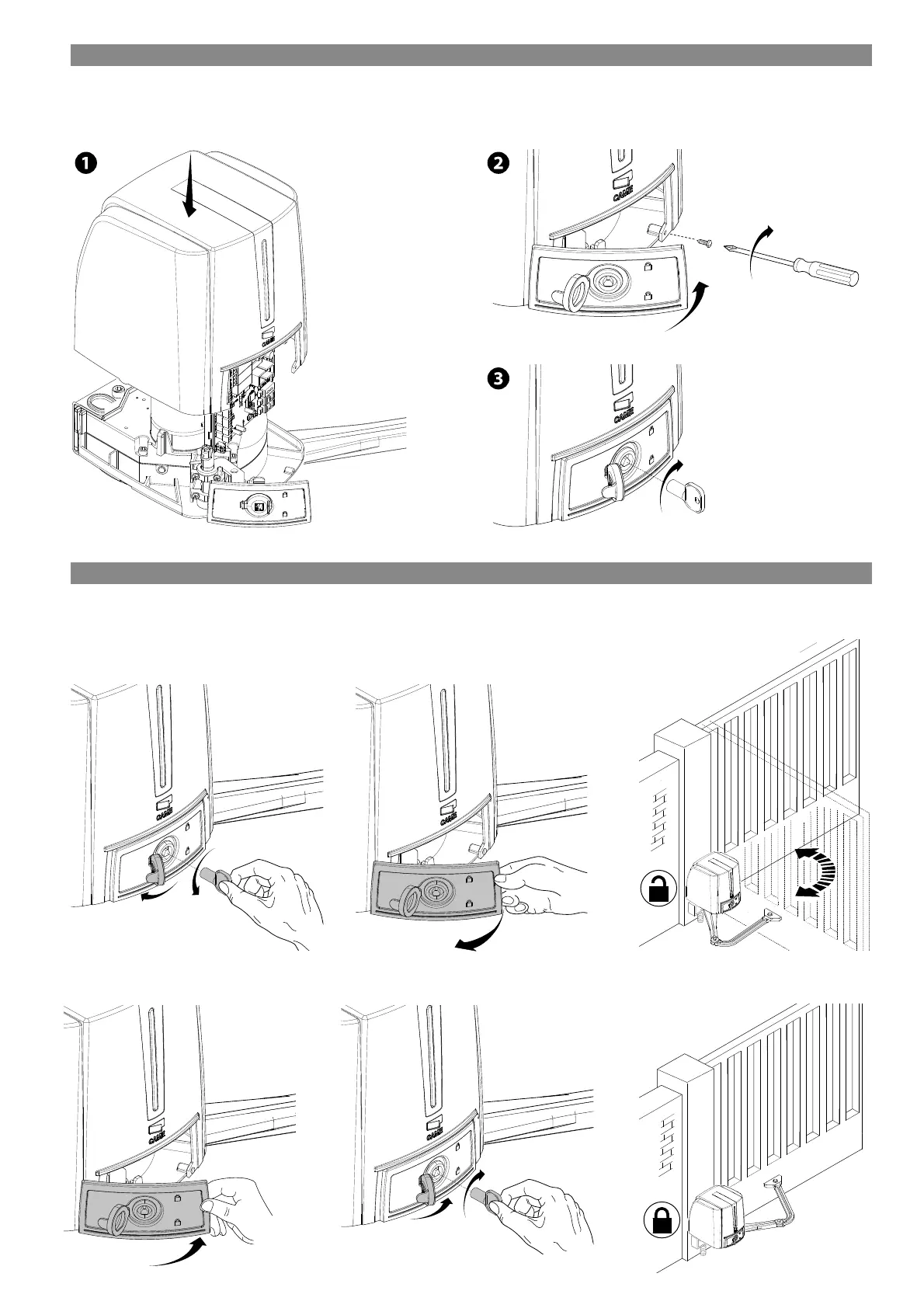

RELEASING THE GEARMOTOR
⚠
This procedure must be done with the main power cut o .
⚠
Manually releasing the operator may result in uncontrolled movement of the gate, if this has any mechanical problems or is unbalanced.
FINAL OPERATIONS
Once you have fi nished with the connections and started up the operator, fi t the casing over the gearmotor ().
Fit the casing over the gearmotor and close the hatch ().
Lock the gearmotor using the key and fi t the protection cap ().

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
