173
94
40
120
100
60
18
A
B
120 min
C MAX
47,5
310 max
200 min
p.
6 - Manual code:
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

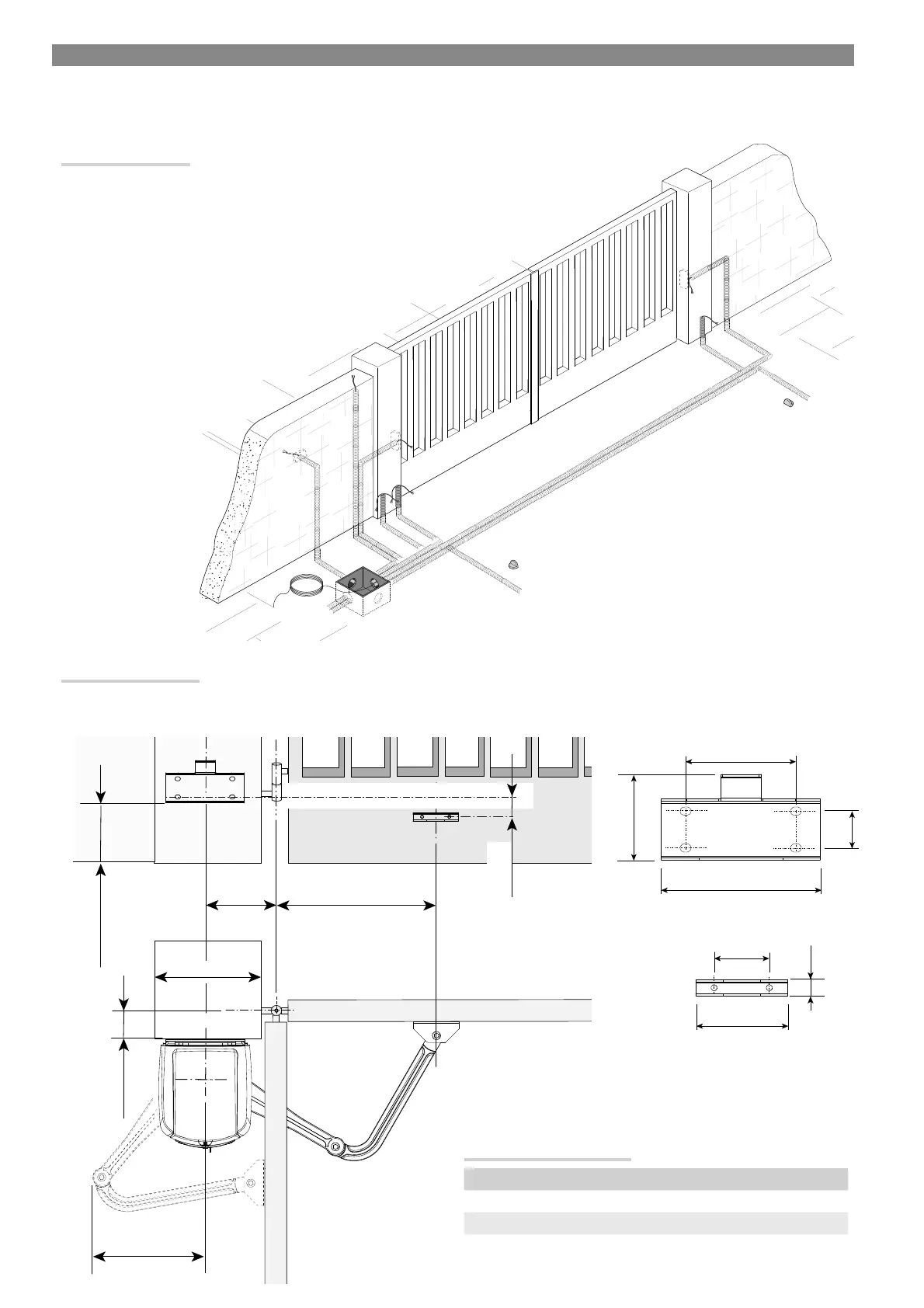

INSTALLATION
⚠
The following illustrations are just examples, in that the space available for fitting the operator and accessories varies depending on the overall
dimensions. It is up to the installer to find the most suitable solution.
The drawing show an operator fitted on the left. Install the operator on the right, symmetrically.
Corrugate tube laying
Lay the corrugated tubes you will need for the cables coming out of the junction pit.
The number of tubes depends on the type of system and the accessories you are going to fit.
You need to lay two corrugated tubes where the operator is fitted.
Fastening the brackets
Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect the quotas shown in the drawing
and table.
Application dimension (mm)
Leaf opening arc (°) A C MAX B
90° 140 0 ÷ 200 420
90° 160÷180 200 380
110° 200÷220 0 ÷ 50 400
