173
94
40
120
100
60
18
120 <
47,5
225
C
A
B
p.
26 - Manual code:
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
ERROR MESSAGE
The error messages are shown on the display.
E 1 The travel calibration was interrupted when the STOP button was activated
E 2 Calibrating the incomplete travel
E 3 Encoder broken
E 4 Services test error
E 7 Insu cient working time
E 9 Closing obstruction
E 10 Opening obstruction
E 11 Maximum number of detected obstructions
E 14 Serial communication error
E 17 Wireless system error
E 18 The wireless system hasn't been confi gured.

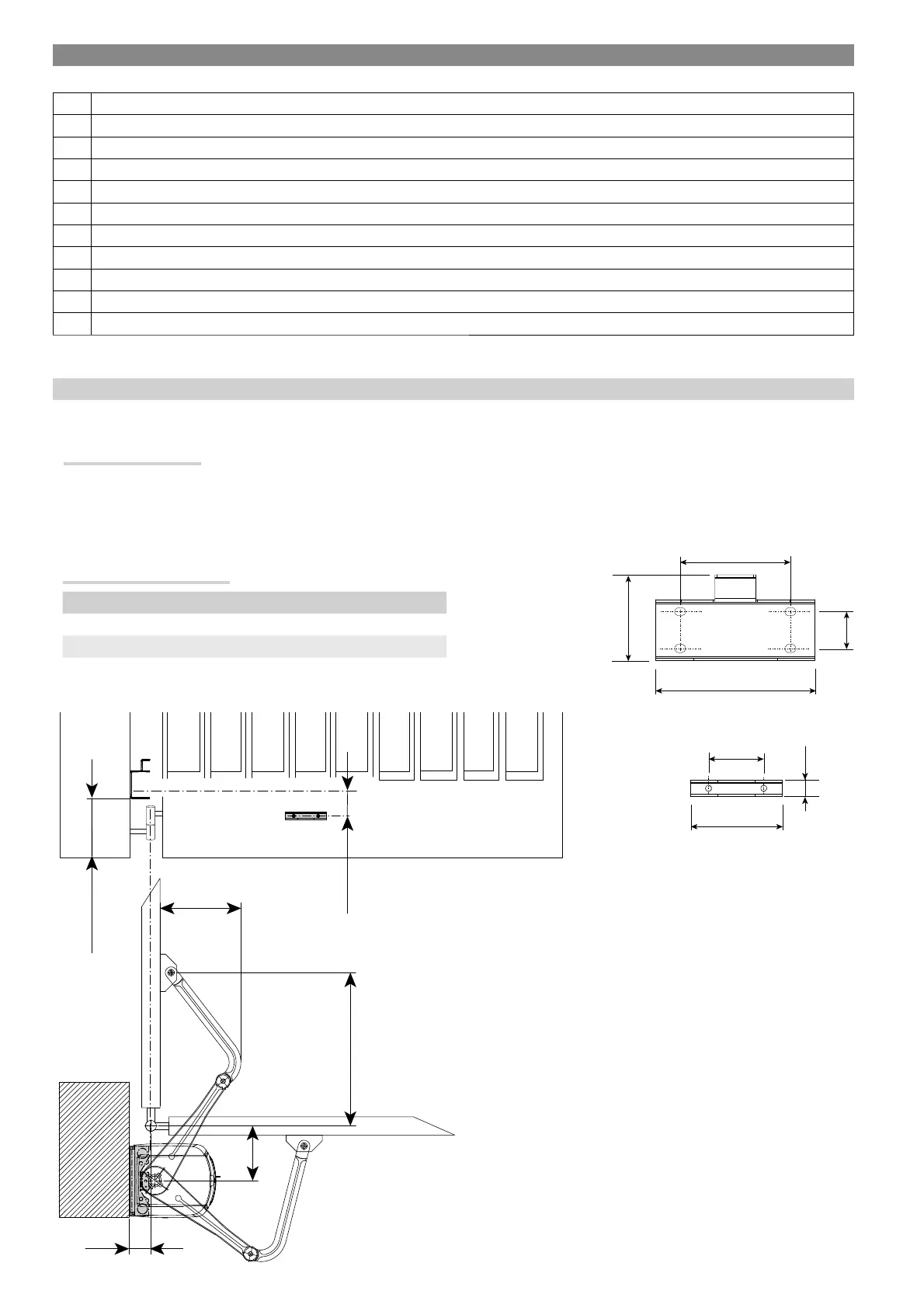

INSTALLING AND CONNECTIONS FOR OUTER OPENING
Following, are the only things that change compared to a standard installation:
Fastening the brackets
Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect the quotas shown in the drawing
and table.
Application dimension (mm)
Leaf opening arc (°) A C MAX B
90° 150 60 420
110° 150 60 380
