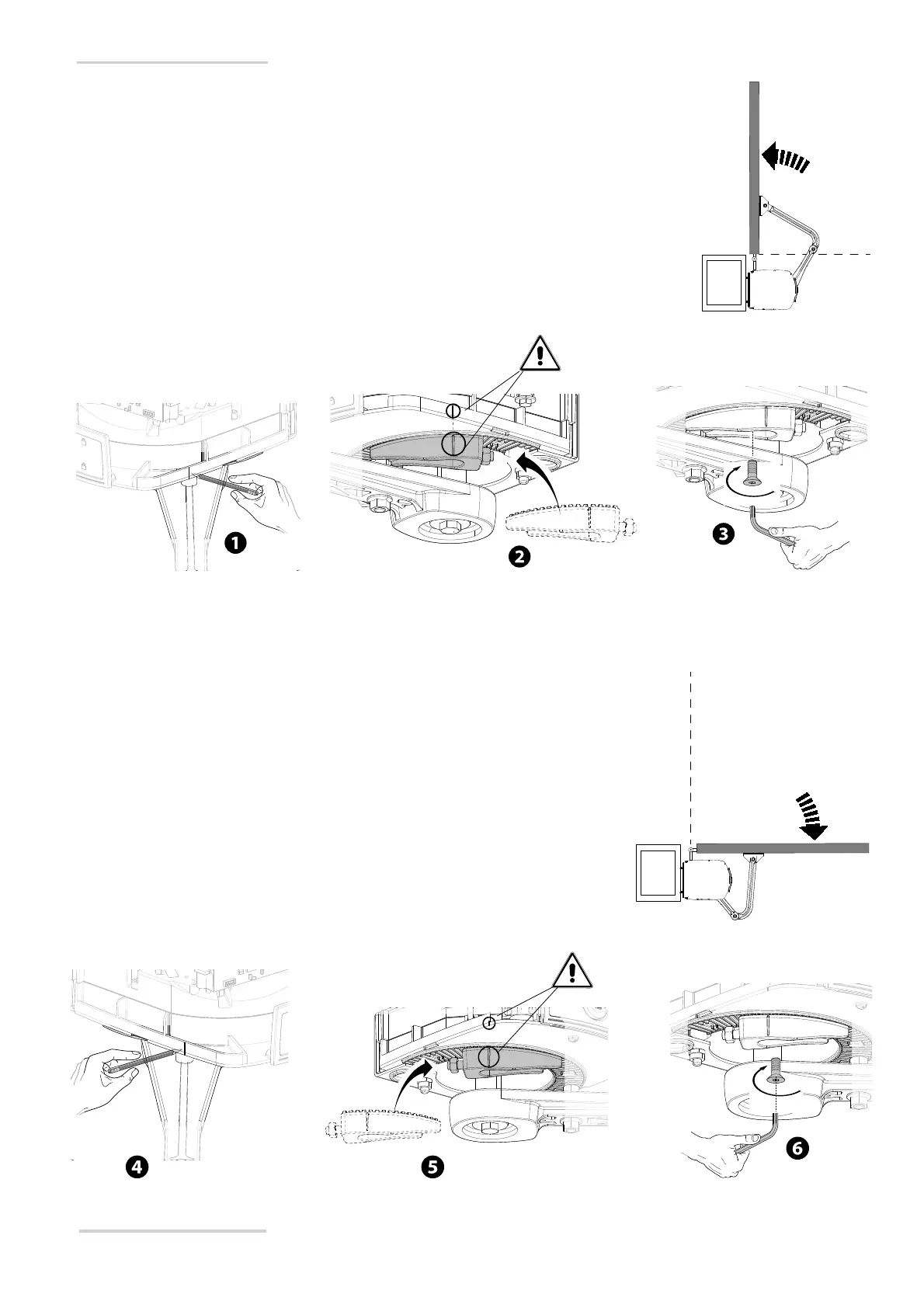

Fastening the mechanical stops
Release the gearmotor.
When opening.
Entirely open the gate leaf. Mark the casing where the center of the arm is.().
Manually close the gate leaf. Place the mechanical stop under the casing. The mark on the case must match the
groove on the stop, as shown
().
Fasten the stop using the screw ().
When closing.
Close the leaf. Mark the casing where the center of the arm is. ().
Manually open the leaf. Place the second mechanical stop against the opposite side of the arm. The mark
on the casing must match the groove on the stop().
Fasten the stop using the screw ().
Determining the end run points
Please refer to the chapter on opening inwards.

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
