CAME FAST 70 User Manual

DELTA
TX 2
+- + - NO C NC
10 11 E 5
1 2 3P 7
10 TS 2 CX CY
A
+
-
-
+
-
1
2
3P
7
10
TS
2
CX
CY
A
B
GND
10 2 TX C NC TX 2
DELTA-S DIR
RSE
RIO-CELLRIO-EDGE
RIO-LUX
A B GND
10 TS 2 CX CY
A B GND
S1 GND
A B
UTP CAT 5
1 2 3 4
1
2
3
4
RIO-CONN
T
S 2 CX CY
A B GND
S1 GND
A B
p.
15
15 - Manual code:
FA00095-EN
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
Serial connection of the RS485 with RSE
card to the home & building automation
system via CRP (Came Remote Protocol).
Connection with Came Remote Protocol (CRP)

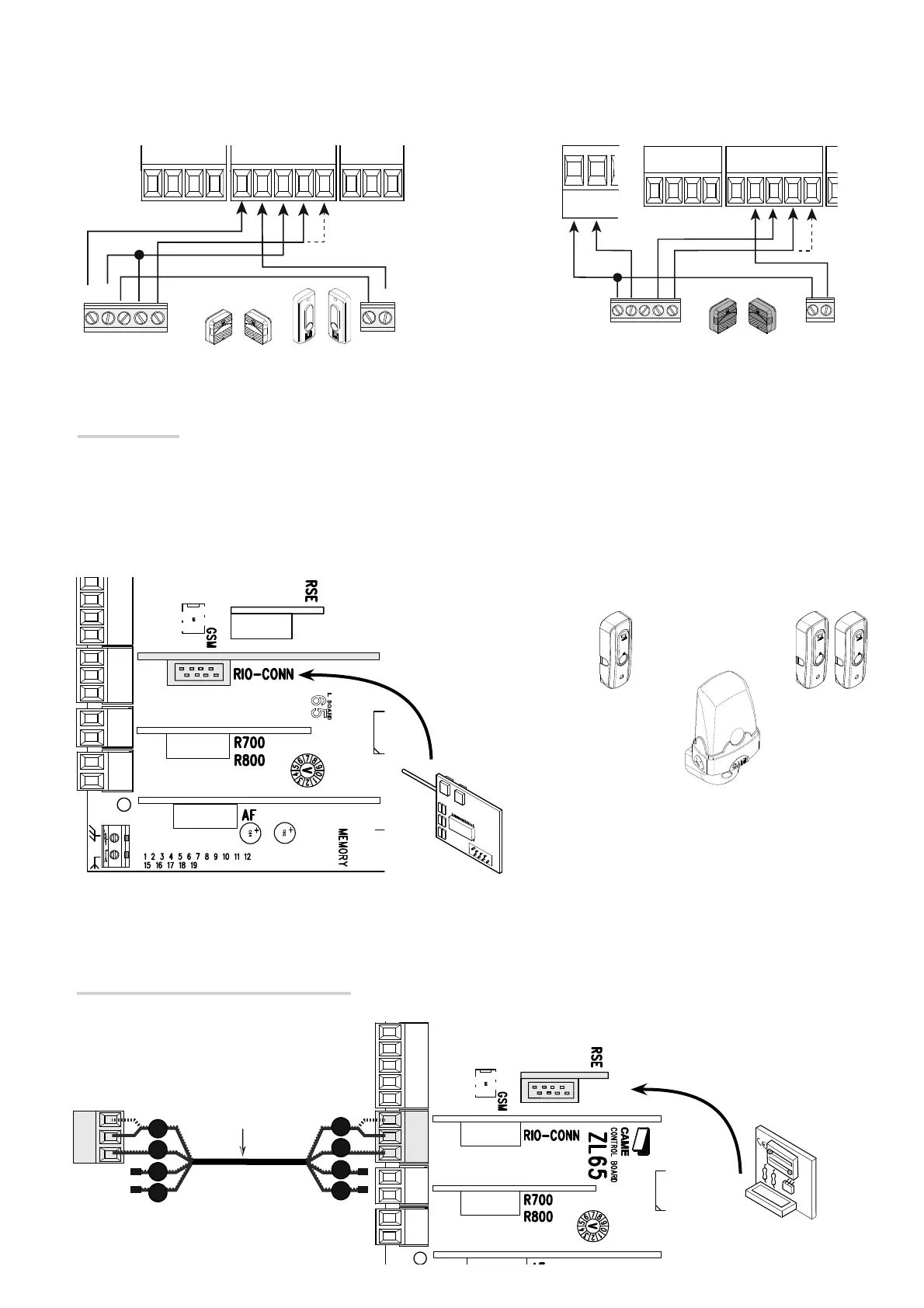

Connecting the safety devices (i.e. the safety test)
At each opening and closing command, the control board checks the e cacy of the safety devices (such as, photocells).
Any malfunction will inhibit any command and E 4 will appear on the display.
For this type of connection, enable function F 5.
Fit the RSE card.
Wireless devices
Fit the RIO-CONN card into the corresponding connector on the control board.
Set the function to be associated to the wireless device (F65, F66, F67 e F68).
Confi gure the wireless accessories (see the folder of the accessory you want to confi gure).
 If the devices are not confi gured with the RIO-CONN card, the E 18 error message is displayed.
⚠
If the system has radiofrequency interferences, the wireless system will inhibit the operator's normal operating mode and the E 17 error message
is displayed.

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
