1 2 3P 7
10 TS 2 CX CY
10 11 E 5
DFW
1 2 3P 7
10 TS 2 CX CY
DELTA
10 11 E 5
1 2 3P 7
10 TS 2 CX CY
A B GND
TX
+
+ - NO C
-
NC
DELTA-S DIR
10 11 E 5
1 2 3P 7
10 TS 2 CX CY
-
+
-
A B GND
p.
14 - Manual code:
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

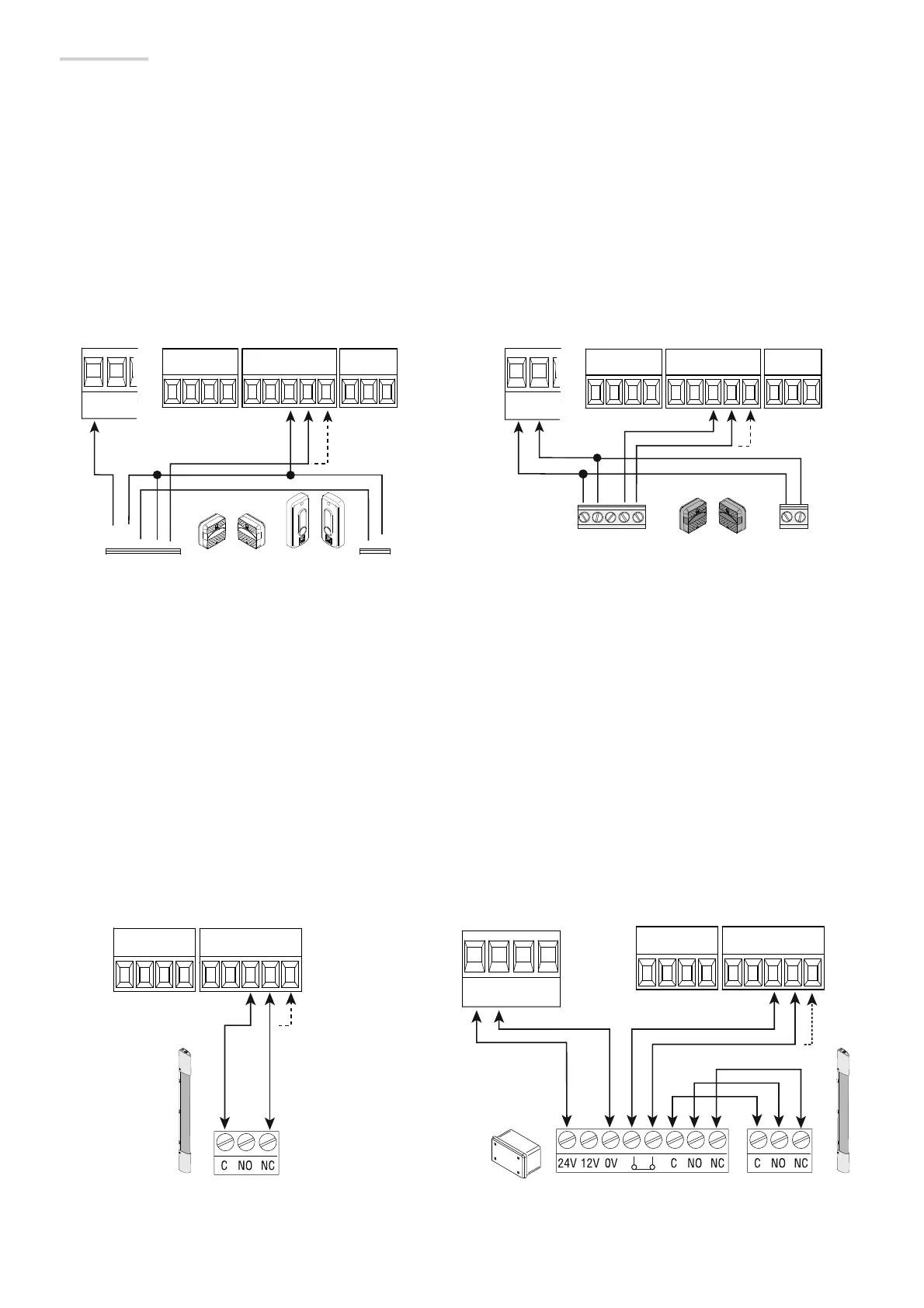

DFW fi tted with DFI card for controlling the
connections
Sensitive Safety Edges
Confi gure contact CX or CY (NC), input for safety devices, such as sensitive safety edges, that comply with EN 12978 provisions.
See CX input functions (Function F2) or CY (Function F3) in:
- C7 reopening during closing. when the gate is closing, opening the contact causes the inversion of movement until opening is complete;
- C8 reclosing during opening. When the gate is opening, opening the contact triggers the inversion of movement until the gate is fully closed.
If contacts CX and CY are not used they should be deactivated during programming.
Safety devices
Photocells
Confi gure contact CX or CY (NC), input for safety devices, such as photocells, that comply with EN 12978 provisions.
See CX input functions (Function F2) or CY (Function F3) in:
- C1 reopening during closing. when the gate is closing, opening the contact causes the inversion of movement until opening is complete;
- C2 close back up during opening. When the gate is opening, opening the contact triggers the inversion of movement until the gate is completely
closed.
- C3 partial stop. Stopping of the gate, if it is moving, with consequent automatic closing (if the automatic closing function has been entered);
- C4 obstacle wait. Gate stops, if it is moving, and once the obstruction is removed, it resumes its movement.
If contacts CX and CY are not used they should be deactivated during programming.
