CAME FAST 70 User Manual

M1 N1 ENC1
M2 N2 ENC2
FA7024CBFA7024
FA7024FA7024CB
M1 N1 ENC1
M2 N2 ENC2
M1 N1 ENC1
M2 N2 ENC2
M1 N1 ENC1
M2 N2 ENC2
M N E
M N E
p.
13
13 - Manual code:
FA00095-EN
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
Connecting the operator
Connecting the operator and gearmotor

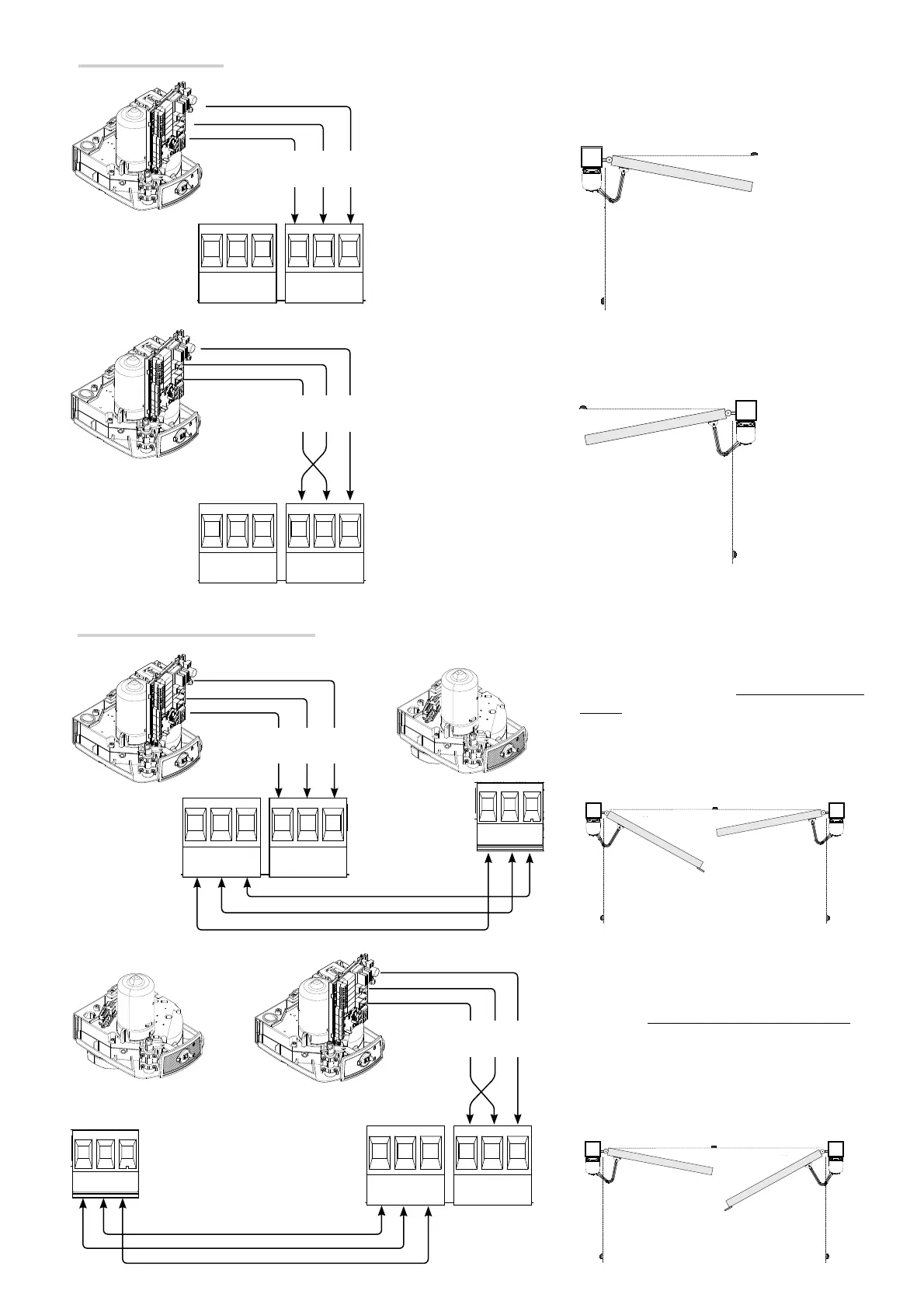

Electrical connections:
operator fi tted on the right (inner view).
Electrical connections:
Operator installed on the left (outer view).
(Default setting)
Electrical connections:
operator installed to the left and gearmotor installed
to the right (inner view) with operator delayed when
closing.
(Default setting)
Electrical connections:
operator fi tted to the right and gearmotor to the left
(inner view) with operator delayed when opening.
BROWN
BLACK
BLUE
BROWN
BLACK
BLUE
BROWN
BLACK
BLUE
BROWN
BLACK
BLUE

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
