UNI 6593
Ø 14
UNI 5739
M10x14
Ø 12
UNI 6593
Ø 6
UNI 5739
M6x10
p.
8
8 - Manual code:
FA00095-EN
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

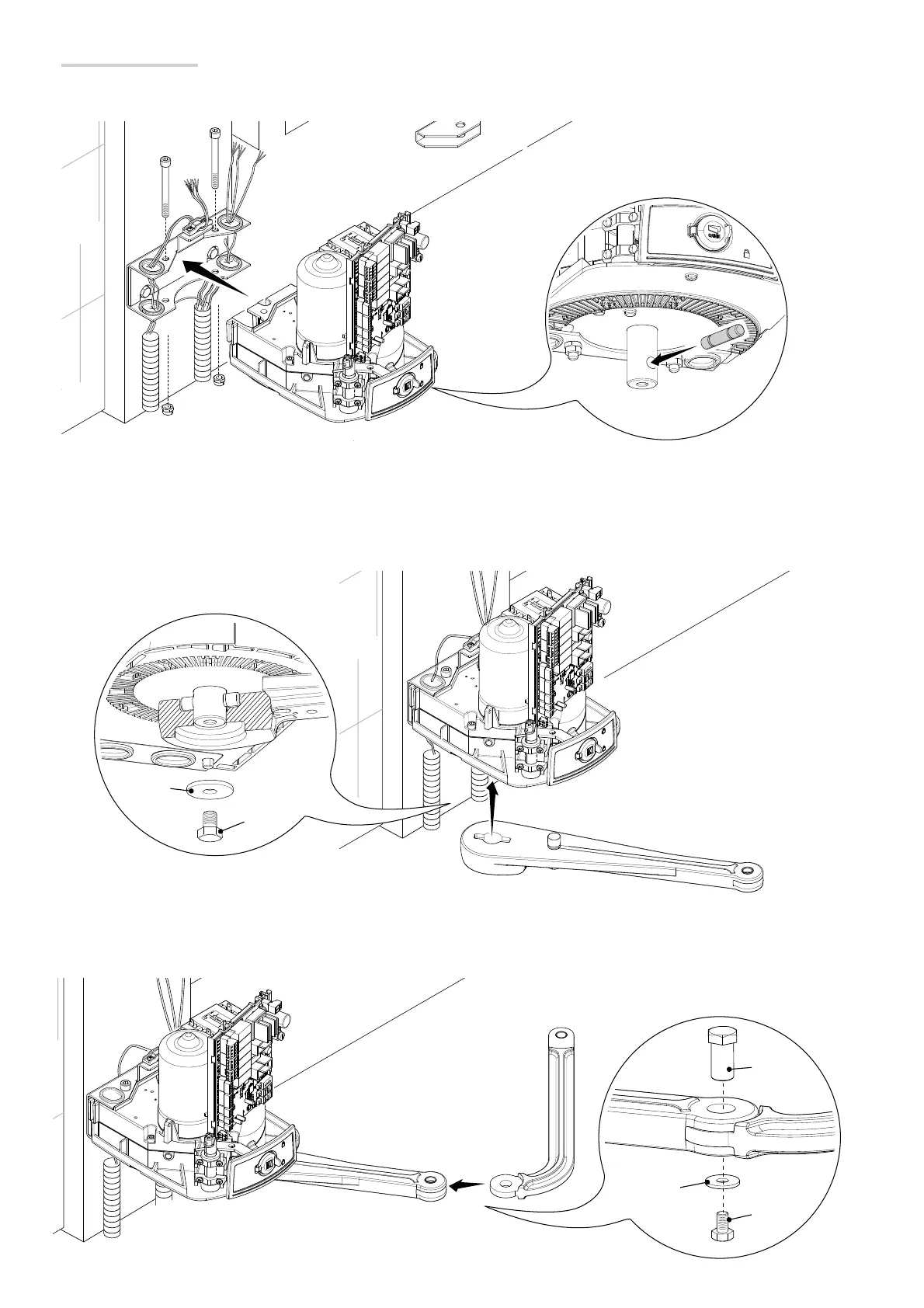

Fastening the operator
Fit the gearmotor into the gate.post brace and tighten the nuts and bolts.
Fit the plug into the gearmotor's drive-shaft hole.
Fasten the transmission arm to the drive-shaft using the slow-shaft washer and bolt.
Pin the driven arm to the transmission arm and tighten the washer and bolt.
