UNI 5739
M6x10
UNI 6593
Ø 6
UNI 6592
Ø 12
Ø 12
p.
9 - Manual code:
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

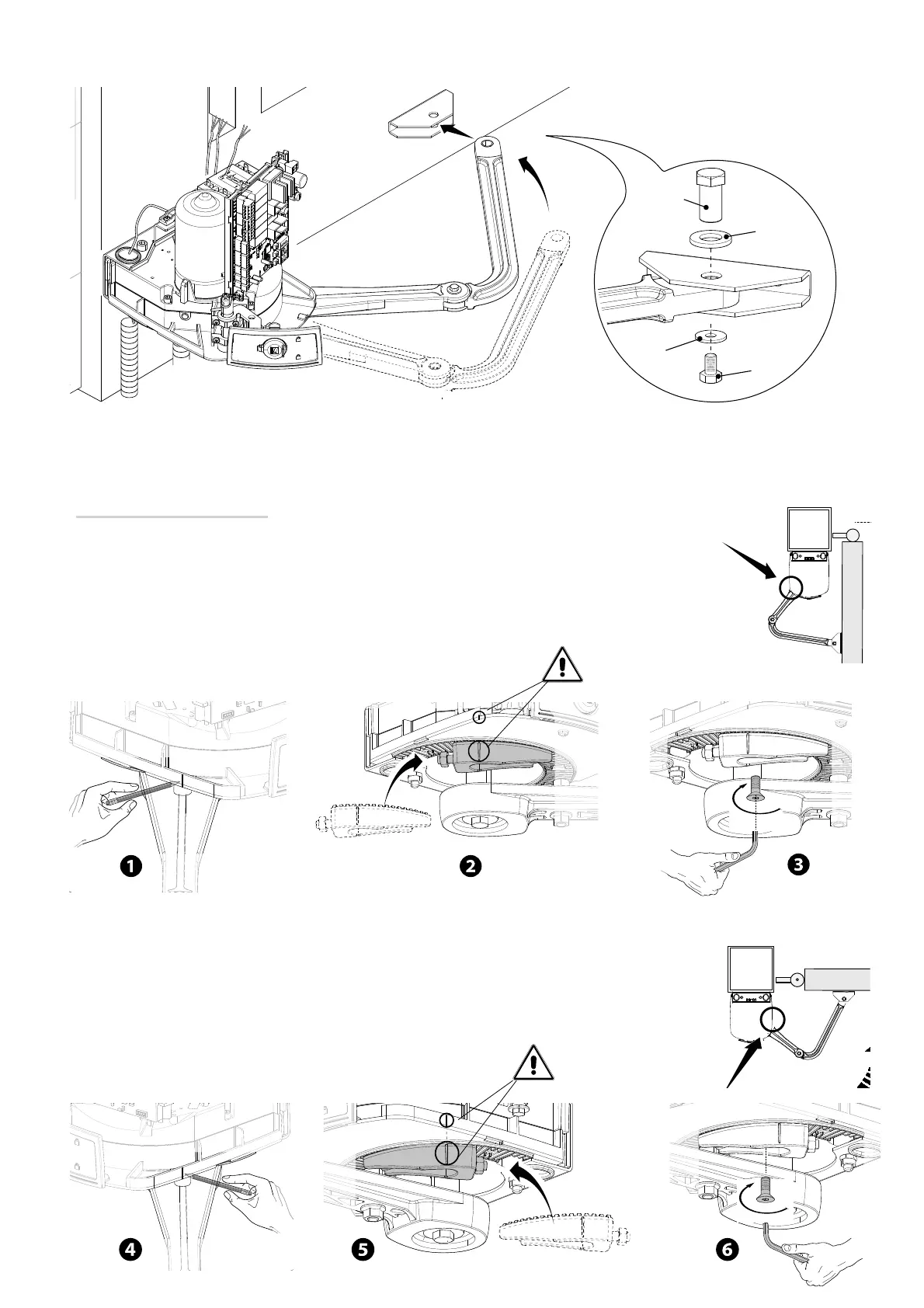

Fastening the mechanical stops
Release the gearmotor.
When opening.
Entirely open the gate leaf. Mark the casing where the center of the arm is.().
Manually close the gate leaf. Place the mechanical stop under the casing. The mark on the case must match the
groove on the stop, as shown().
Fasten the stop using the screw ().
Release the gearmotor (see RELEASING THE GEARMOTOR), fit the driven arm to the gate brace as shown in the drawing.
When closing.
Close the leaf. Mark the casing where the center of the arm is.
().
Manually open the leaf. Place the second mechanical stop against the opposite side of the arm. The mark on
the casing must match the groove on the stop()
. Fasten the stop using the screw ().
