Travel calibration
 Before calibrating the gate travel, position the gate half-way, check that the maneuvering area is clear of any obstruction and check that there
are mechanical opening and closing stops.
⚠
The mechanical end-stops are obligatory.
Important! During calibration, all safety devices will be disabled.
Select A 3.
Press ENTER to confi rm.
Select 1 and press ENTER to confi rm the travel calibration
operation.

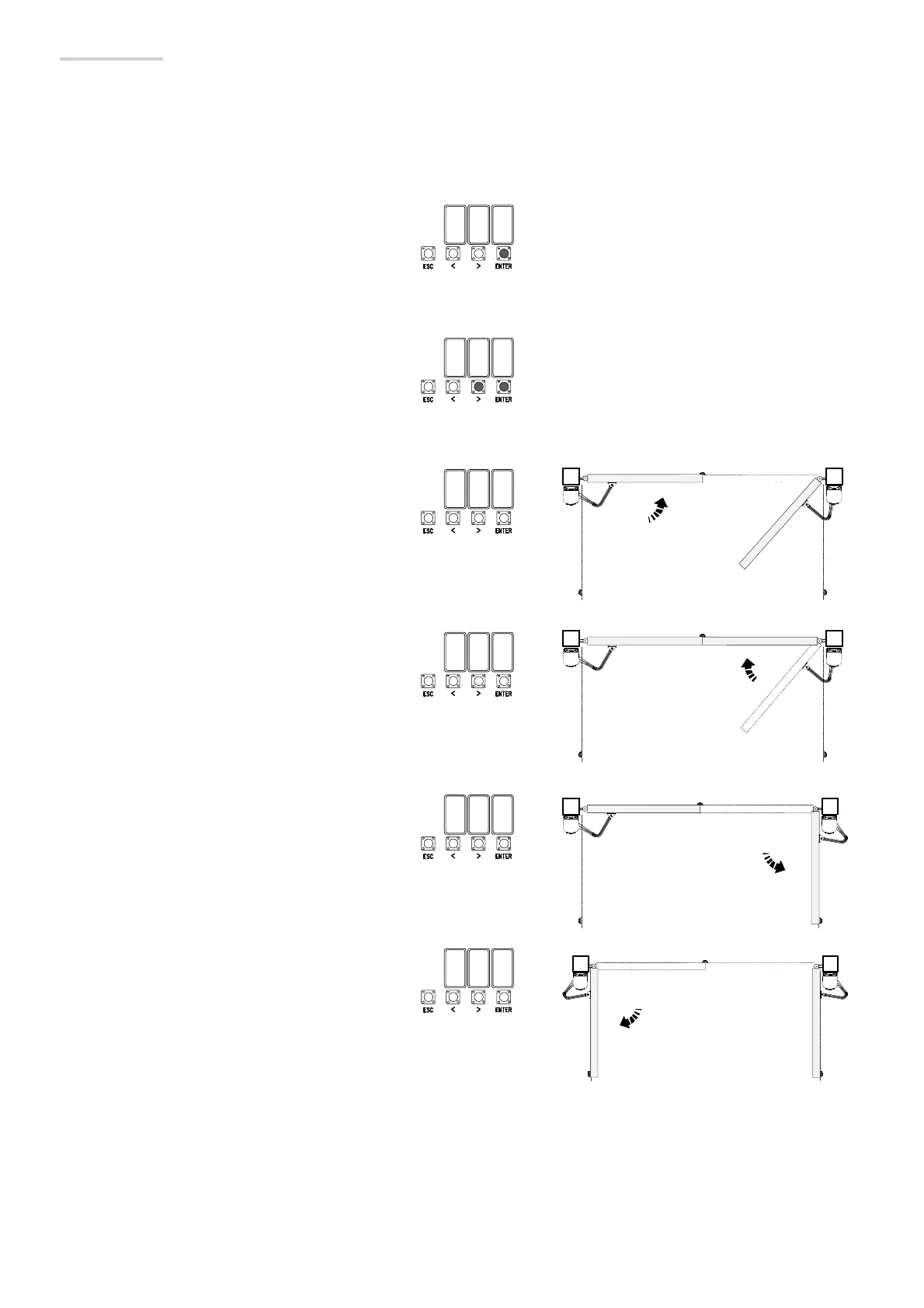

The fi rst gearmotor leaf will perform a closing maneuver until
the closing strike ...
... then, the second gearmotor leaf will perform the same
maneuver ...
... the the second gearmotor's leaf will perform an opening
maneuver until the closing strike ...
... the fi rst gearmotor's leaf will perform the same maneuver.

CAME FAST 70 Specifications

General

Power Supply	230 V AC
Motor Power	300 W
Motor Voltage	230 V AC
Current	1.3 A
Thrust	3000 N
Intermittence	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP44
Opening Speed	Adjustable
Closing Speed	Adjustable
Safety Features	Obstacle detection
Type	Electromechanical
