M2
M1
p.
24 - Manual code:
FA00095-EN v.
4 - 08/2017 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
A = Movement area at normal speed.
B* = Movement area at slowed-down speed.
C = Encoder intervention zone with movement inversion.
D = Encoder intervention zone with movement stopped.
E = Opening slow-down starting point for M1.
F = Closing slow-down starting point for M1.
G = Opening slow-down starting point for M2.
H = Closing slow-down starting point for M2.
I** = Closing approach starting point for M1.
L** = Closing approach starting point for M2.
M** = Opening slow-down starting point for M1.
N** = Opening slow-down starting point for M1
O = Strike plates..
* Minimum 600 mm from the strike plate.
** Set the closing-rest percentage for function F 39 - F 40 for the fi rst motor (M1) and F43 - F44 for the second motor (M2) so as to achieve a
distance of less than 50 mm from the strike plate.
Memory Roll Card
To memorize user data and confi gure the system, to then reuse them with another control board even on another system.
After memorizing the data, it is best to remove the Memory roll.

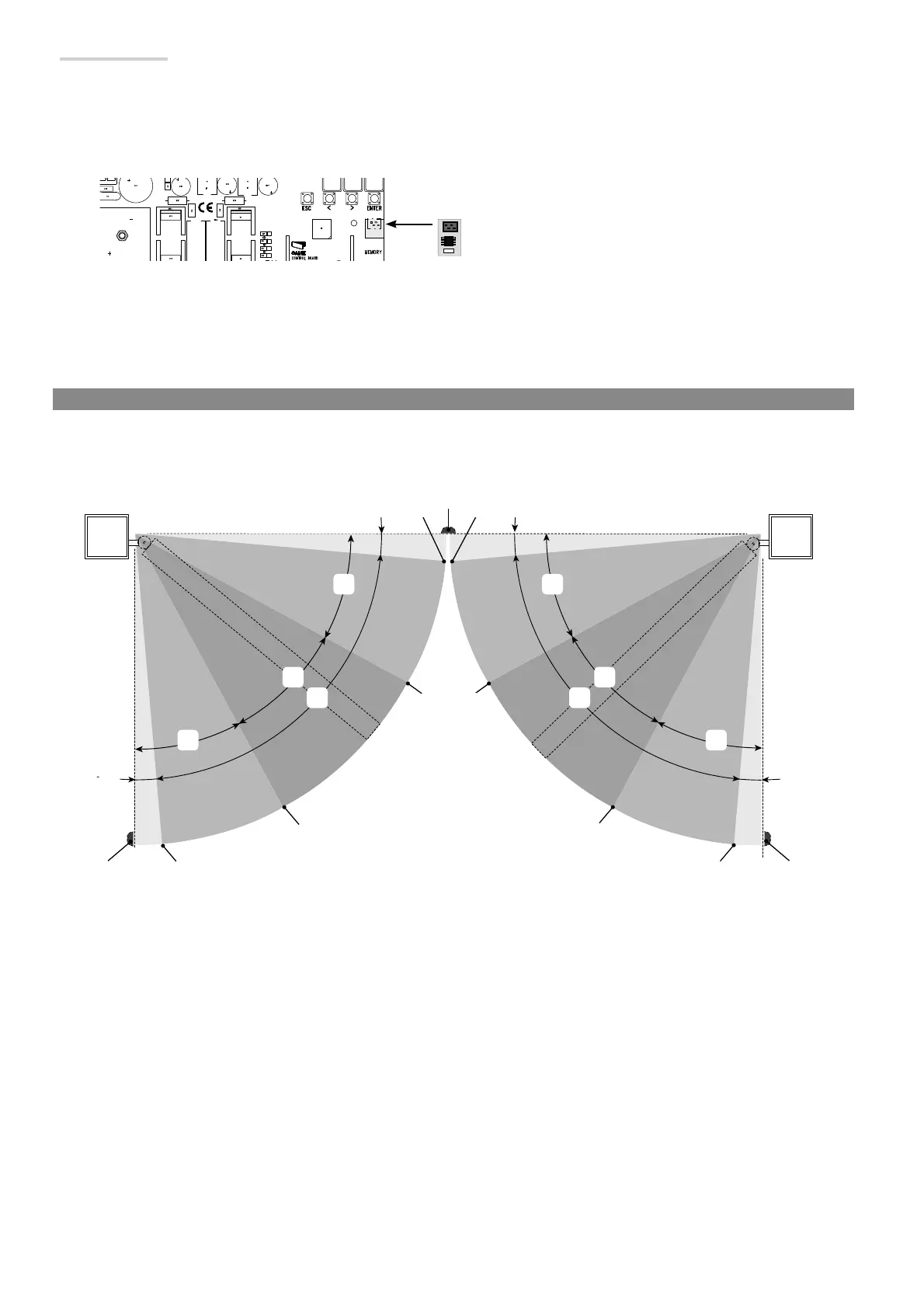

ILLUSTRATION OF THE SLOW-DOWN AND APPROACH AREAS AND POINTS
The travel areas and slow-down and approach points are tested to comply with the parameters set forth by Technical Regulations EN 12445
and EN 12453 for impact force compatibility of moving gate leaves.
Memory roll.
