ENGLISH

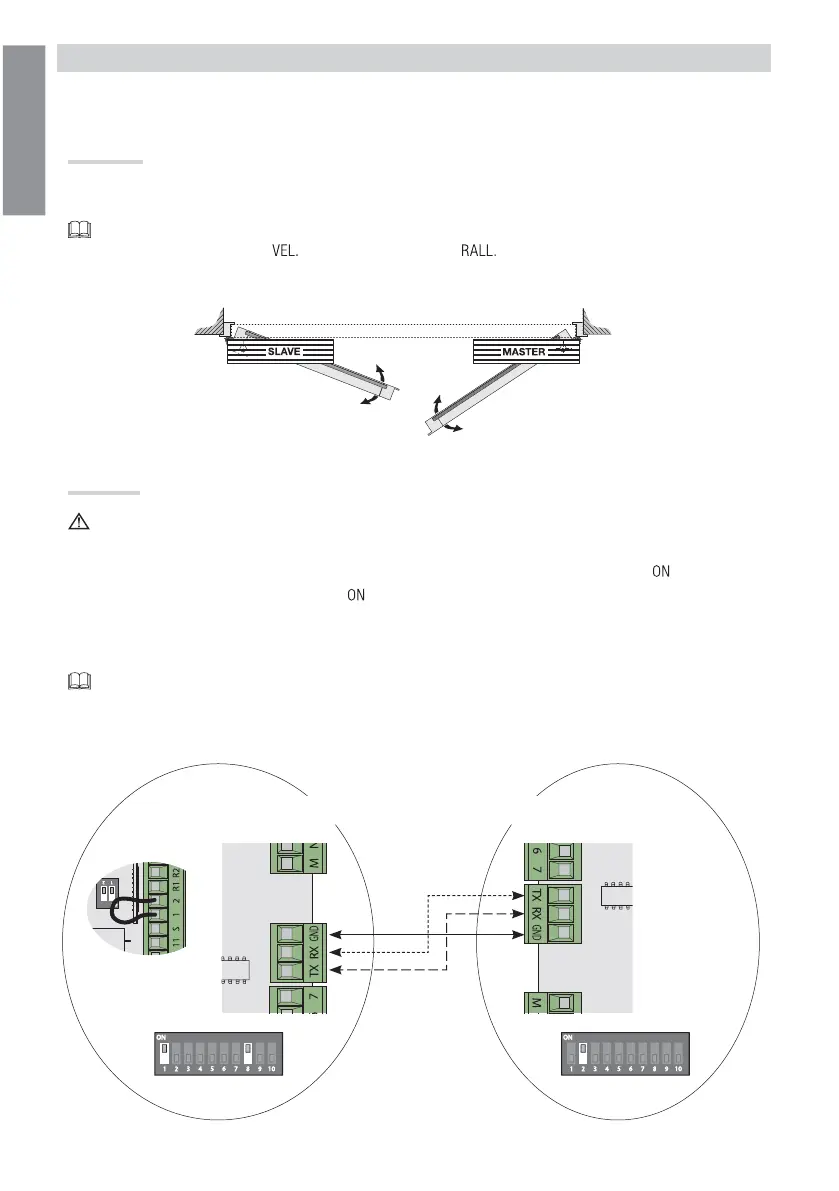

PAIRED CONNECTION
With two PB1100 operators, fitted onto a two-leaved door.
Definitions
Procedure
SLAVE MASTER
MASTER: operator on the door-leaf that opens first and closes second.
SLAVE: operator on the door-leaf that opens second and closes first.
The MASTER must be slower than the SLAVE because it must close second. This offsetting must be done by
adjusting the travel speed (trimmer ) and slow-downs (trimmers ), on both control boards.
Warning! Cut off the main power supply, and if fitted, disconnect the batteries.
• Connect the two control boards, as shown in the figure.
• On the SLAVE board, short-circuit terminals 1-2 of the accessories and set DIP switches 1-8 to
.
• On the MASTER board set DIP switch 2 to
.
• Make all electrical connection only on the MASTER board, except for the antipanic system, which should be
activated on both operators.
• However, make all settings, adjustments and travel memorizations on both control boards.
When you power up again after a reset, wait for the automatic closing of the door leaves, or, if they are closed, wait
for at least 15 seconds before sending an opening command.
