Power supply
1

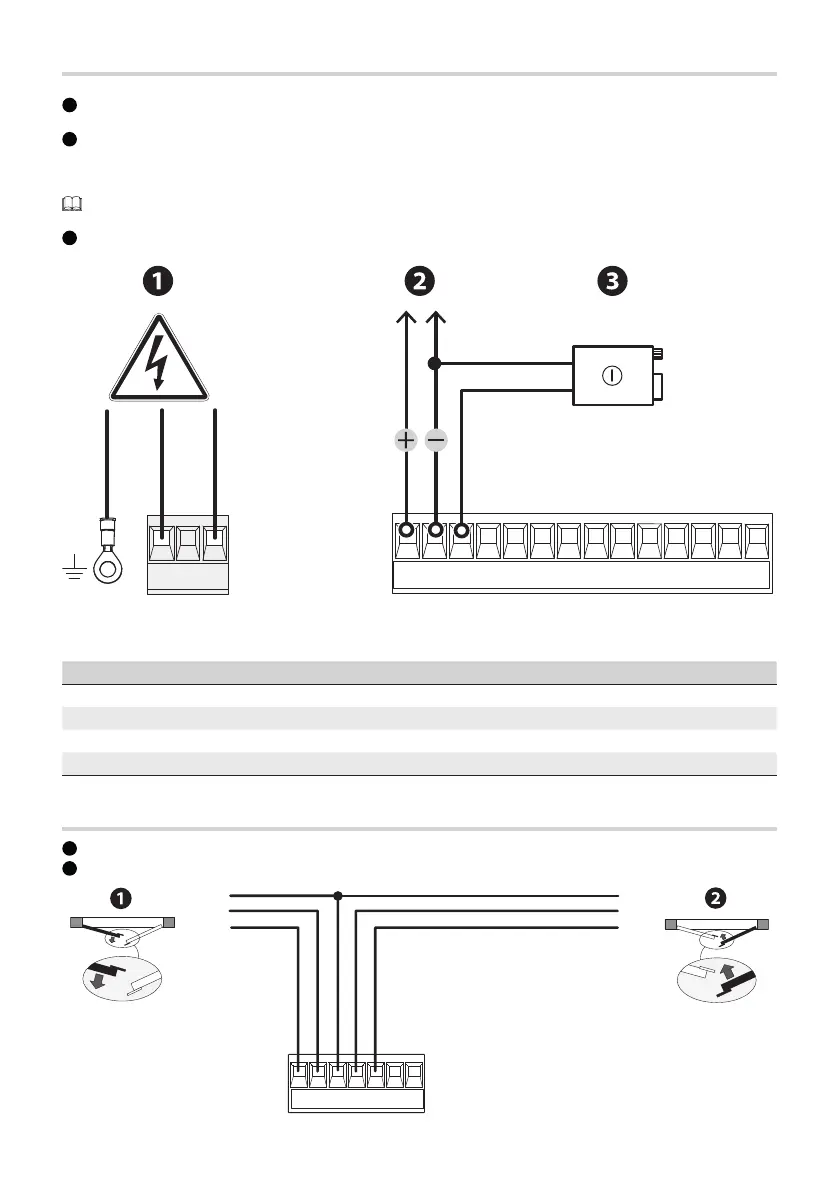

Connecting to the mains (120/230 V AC - 50/60 Hz)
2
Power supply output for accessories
The output normally delivers 24 V AC.
The output delivers 24 V DC when the batteries start operating, if they are installed.
The sum of the power draw for the connected accessories must not exceed 50 W.
3
Connection for the 12 V AC electric lock - 15 W max.
L N
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ
Maximum capacity of contacts
Device Output Power supply (V) Power (W)
Accessories 10 - 11 24 AC 20
Additional light E - E3 230 AC 60
Flashing beacon W - E 230 AC 25
Operator status warning light 10 - 5 24 AC 3
Gearmotor without limit switch
1
Gearmotor delayed while opening
2
Gearmotor delayed while closing
U V W X Y E E3
V
U
W
V
U
W

CAME ZM3E Specifications

General

Protection Rating	IP54
Operating Temperature	-20°C to +55°C
Manufacturer	CAME
Model	ZM3E
Type	Control Panel
Power Supply	230V AC
