p. 15 - Manual FA01317-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

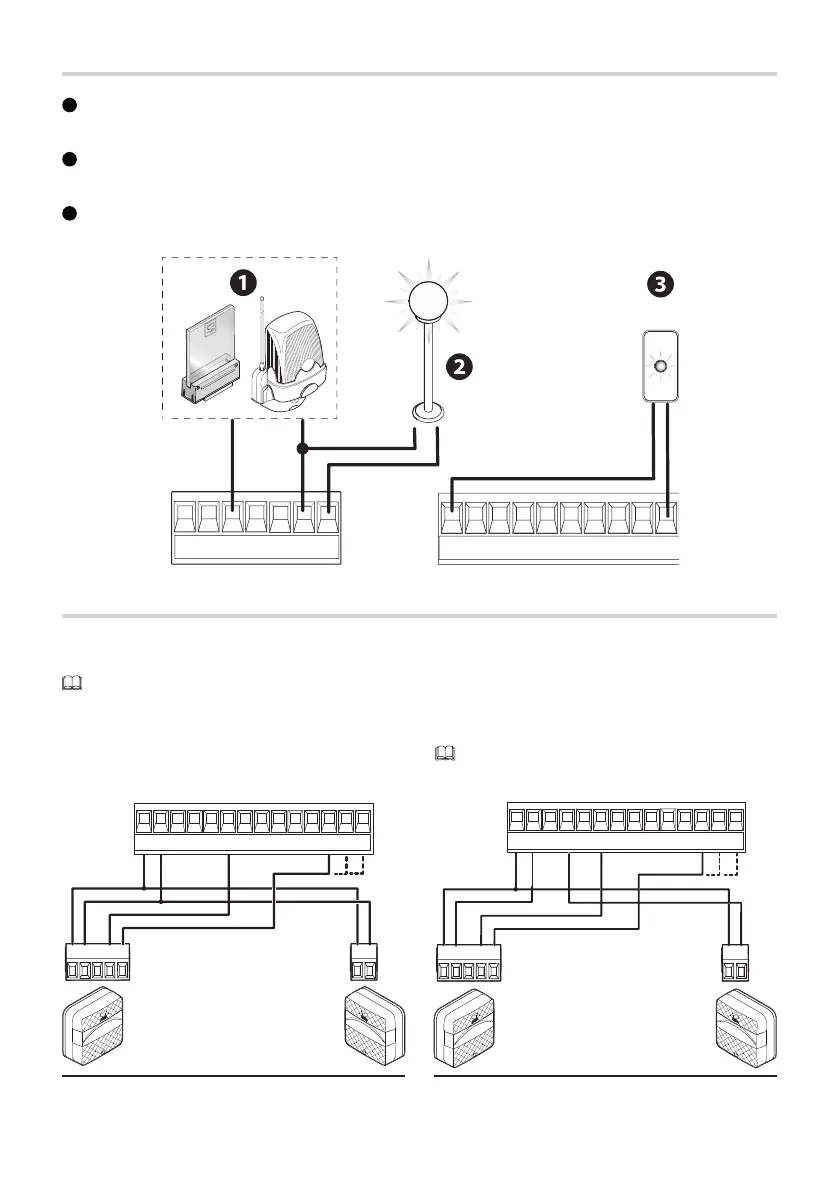

Signalling devices
1
Flashing beacon
It fl ashes when the operator opens and closes.
2
Additional light
It increases the light in the manoeuvring area.
3
Operator status warning light
It notifi es the user of the operator status.
U V W X Y E E3
10 11 ES TS 1 2 3 3P 4 5
Safety devices
During programming, confi gure the type of action that must be performed by the device connected to the input.
Connect the safety devices to the CX, CY and/or CZ inputs (NC contacts).
If contacts CX, CY and CZ are not used, they must be deactivated during programming.
DELTA photocells
Standard connection
DELTA photocells
Connection with safety test
See safety devices test function.
+
10
-
11 NO C NC
+
10
-
11
RX TX
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ
+
10
-
11 NO C NC
+
10
-
11
RX TX
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ
