CAME ZM3E User Manual

p. 16 - Manual FA01317-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

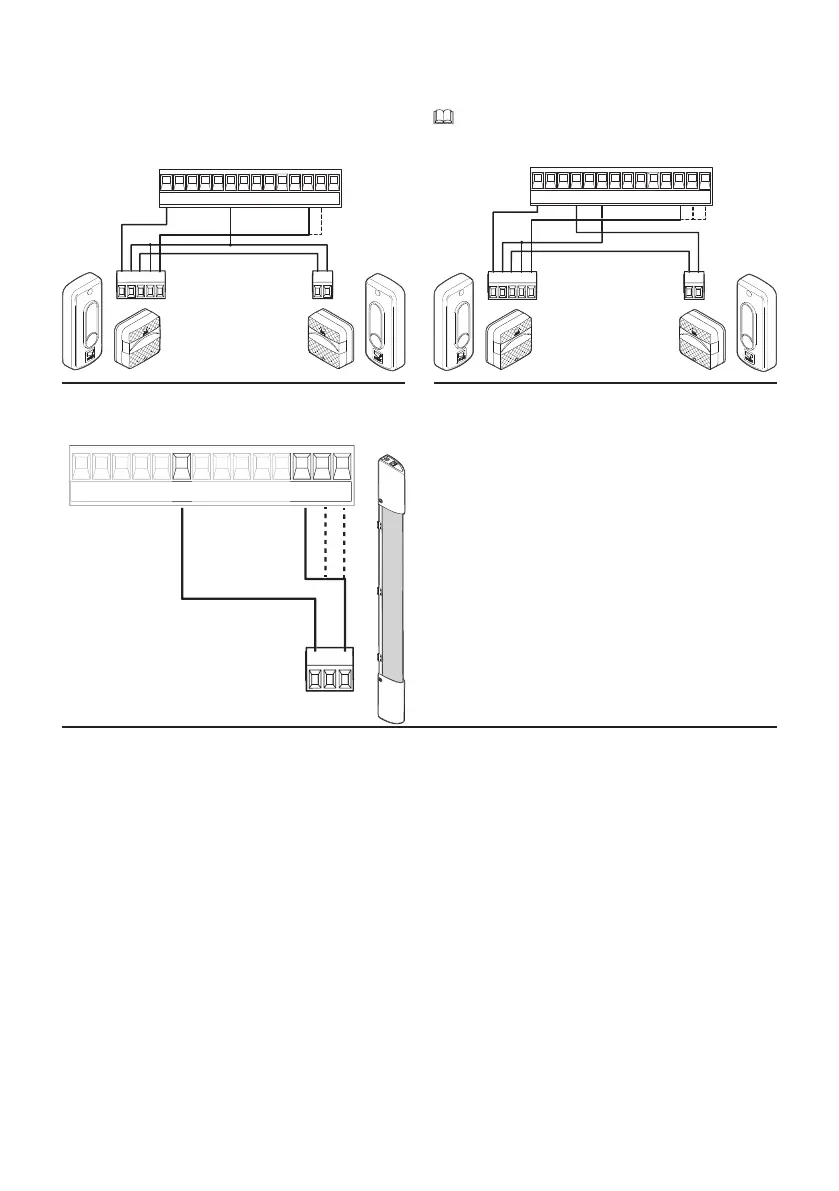

DIR / DELTA-S photocells
Standard connection
DIR / DELTA-S photocells
Connection with safety test
See safety devices test function.
+
10
-
2TXCNC TX 2
RX TX
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ
+
10
-
2TXCNC TX 2
RX TX
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ
DFWN sensitive edge
CNONC
DFWN
10 11 ES TS 1 2 3 3P 4 5 7 CX CY CZ 3 3P 4 5 7 10 11 ES TS 1

CAME ZM3E Specifications

General

Protection Rating	IP54
Operating Temperature	-20°C to +55°C
Manufacturer	CAME
Model	ZM3E
Type	Control Panel
Power Supply	230V AC
