INSTALLATION

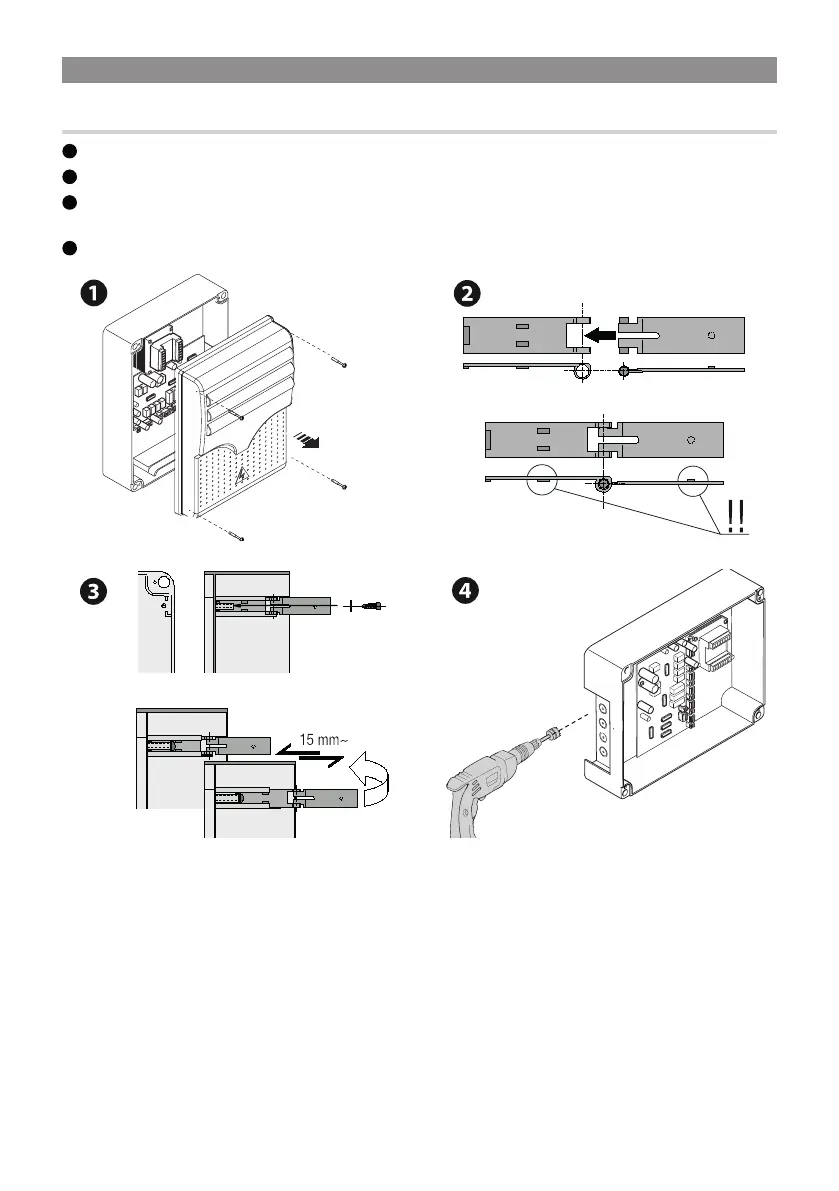

Preparing the control panel
1
Separate the parts of the control panel.
2
Assemble the pressure hinges.
3
Insert the hinges into the box (either on the left or the right) and fasten them using the screws and washers supplied. The
hinges slide to rotate.
4
Drill the pre-marked holes. The diameter of the holes is 20 mm.

CAME ZM3E Specifications

General

Protection Rating	IP54
Operating Temperature	-20°C to +55°C
Manufacturer	CAME
Model	ZM3E
Type	Control Panel
Power Supply	230V AC
