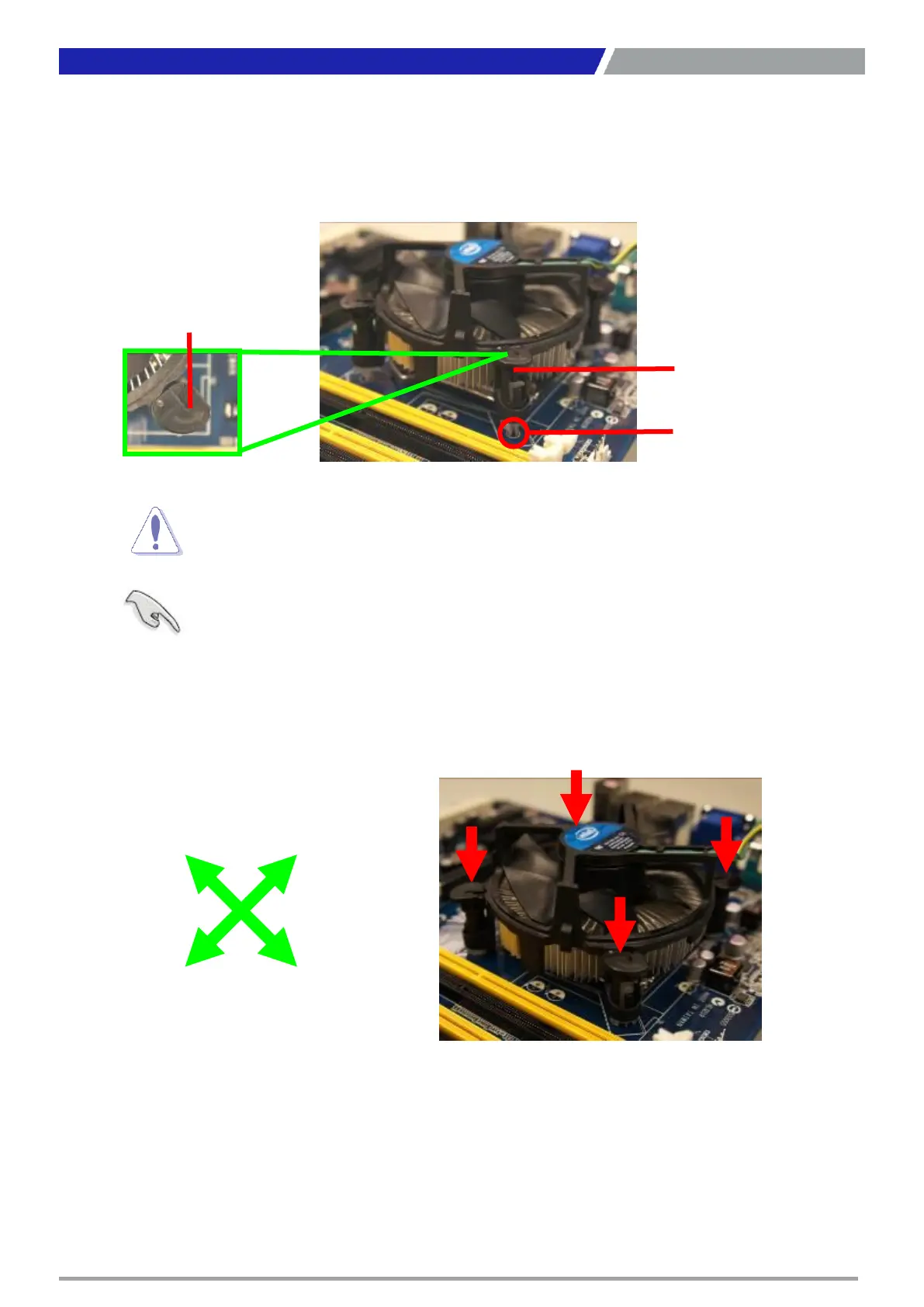

To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes
on the motherboard.
2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly
in place.
Chapter 1: Product Introductions
Make
sure each fastener is oriented as shown, with the narrow groove
directed
outward
.
Orient
the heatsink and fan assembly such that the CPU fan cable is closest
to
the
CPU fan connector.
Motherboard hole
Fastener
Narrow end of
the groove
A
A
B
B
A
A
B
B
