CT-MCL01 l User’s Manual
1.7 Connectors

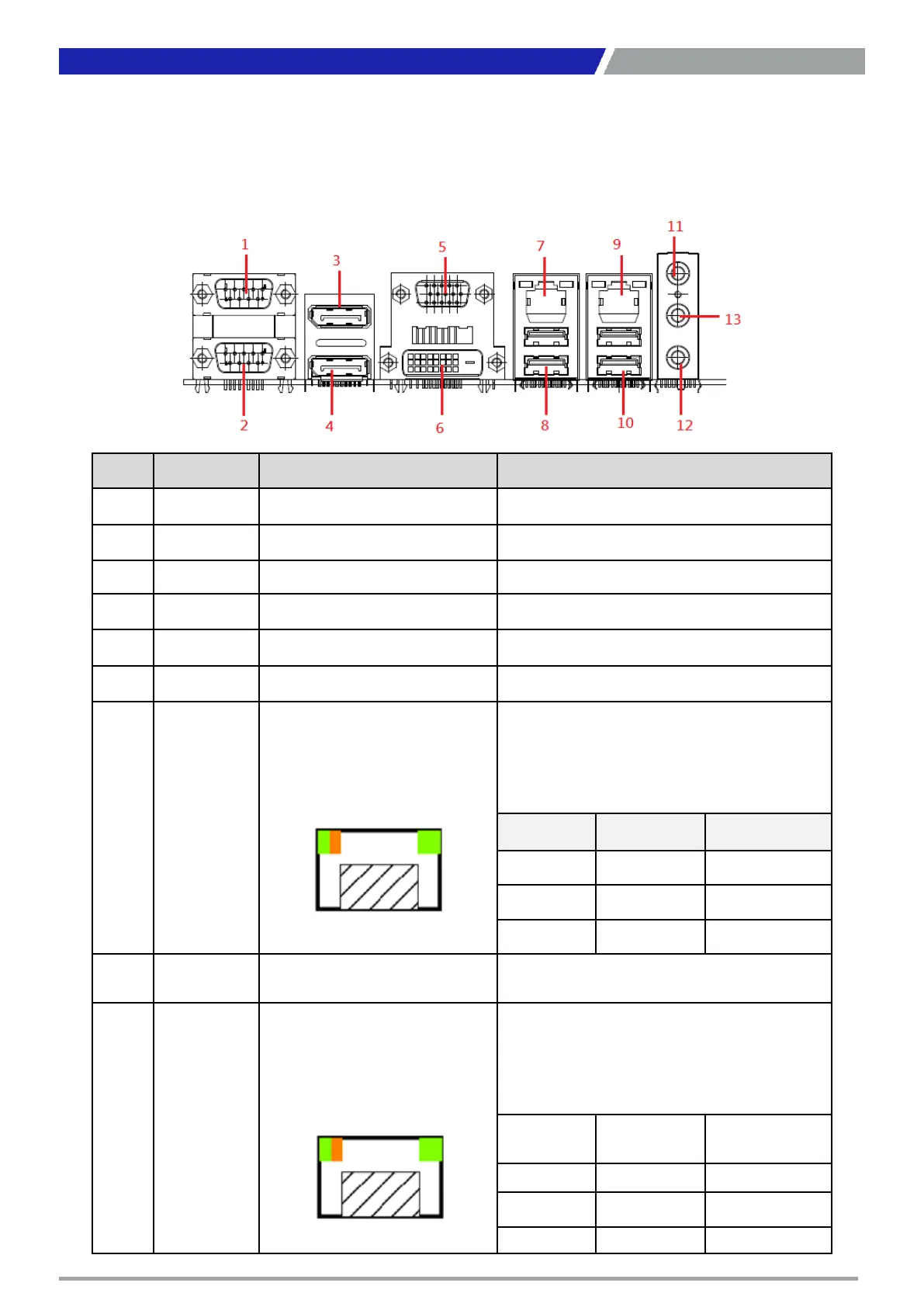

1.7.1 Rear panel connectors
28
Chapter 1: Product Introductions
Item Name Function Description
1 COM1 Serial COM Port
The Serial COM port 1.
2 COM2 Serial COM Port
The Serial COM port 2.
3 DP1 Display Port
The DP port connector
4 DP2 Display Port
The DP port connector
5 VGA1 VGA Port
The VGA port connector
6 DVI1 DVI-D port
The DVI
-D port connector
7 LAN1
Gigabit LAN
(RJ-45) Connectors
This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications.
Speed
Left
Speed
Right
Active
1G Green Green
100 Orange Green
10 N/A Green
8 USB12 USB 3.1 Gen2 Connectors
Two
port USB3.1 Gen2
9 LAN2
Gigabit LAN
(RJ-45) Connectors
This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications.
Speed
Left
Speed
Right
Active
1G Green Green
100 Orange Green
10 N/A Green
