C&T Solution CT-MCL01 Series - Serial ATA Connector (SATA1~6); USB Connectors (USB78, USB910, USB1112, USB13)

CT-MCL01 l User’s Manual
32
Chapter 1: Product Introductions

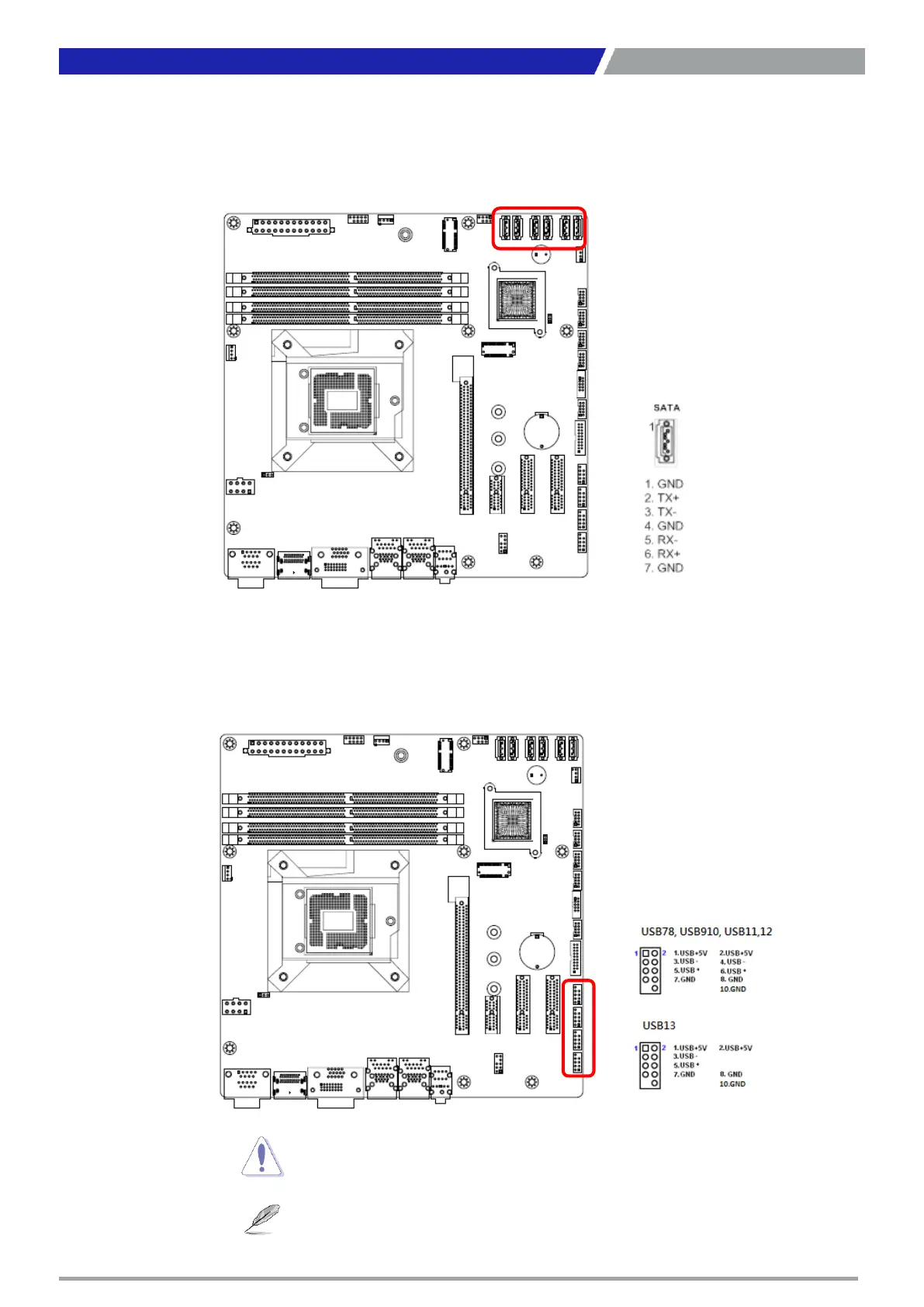

1.7.6 Serial ATA Connector (SATA1~6)
SATA 1~6 support SATA 3.0. and SATA 1 is shared by M.2 key M slot. These connectors are for the Serial
ATA signal cables for Serial ATA hard disk drives.
1.7.7 USB connectors (USB78, USB910, USB1112, USB13)
These connectors are for USB 2.0 ports. Connect the optional USB module cable to any of these connectors,
then install the module to a slot opening at the back of the system chassis. These USB connectors comply with
USB 2.0 specification that supports up to 480 Mbps connection speed.
Never
connect a 1394 cable to the USB connectors
.
Doing
so will damage the motherboard!
The
USB module is purchased separately.
