CT-MCL01 l User’s Manual
1.5 Expansion Card
In the future, you may need to install expansion cards. The following sub-sections describe the slots
and the expansion cards that they support.
1.5.1 Installing an Expansion Card
1. Before installing the expansion card, read the documentation that came with it and make the
necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.
4. Align the card connector with the slot and press firmly until the card is completely seated on the
slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
1.5.2 Installing an Expansion Card
After installing the expansion card, configure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information
on BIOS setup.
2. Assign an IRQ to the card if needed. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.

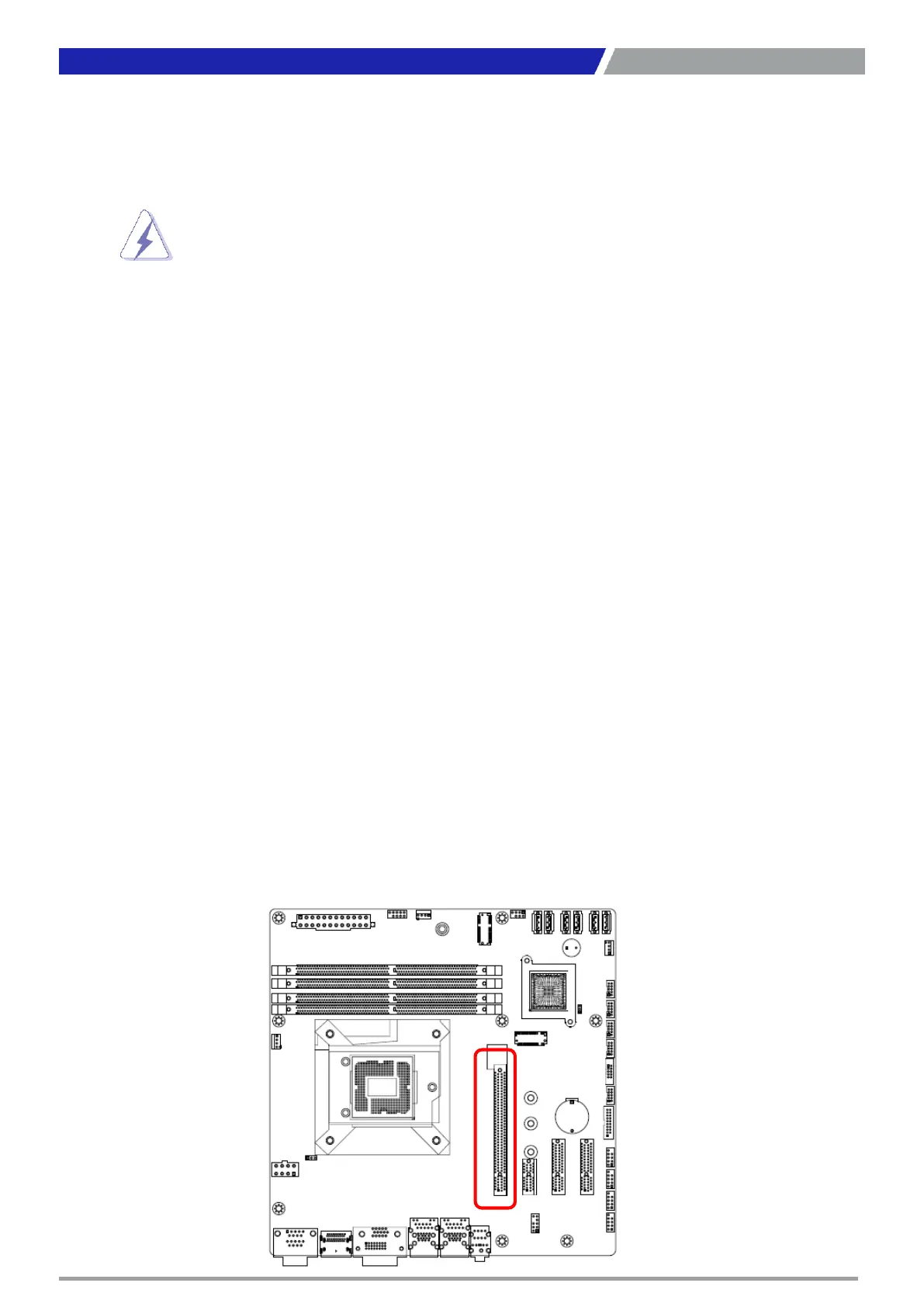

1.5.3 PCI Express x16 Slot
This motherboard supports one PCI Express x16 slot that complies with the PCI Express specifications.
23
