Chapter 1: Product Introductions

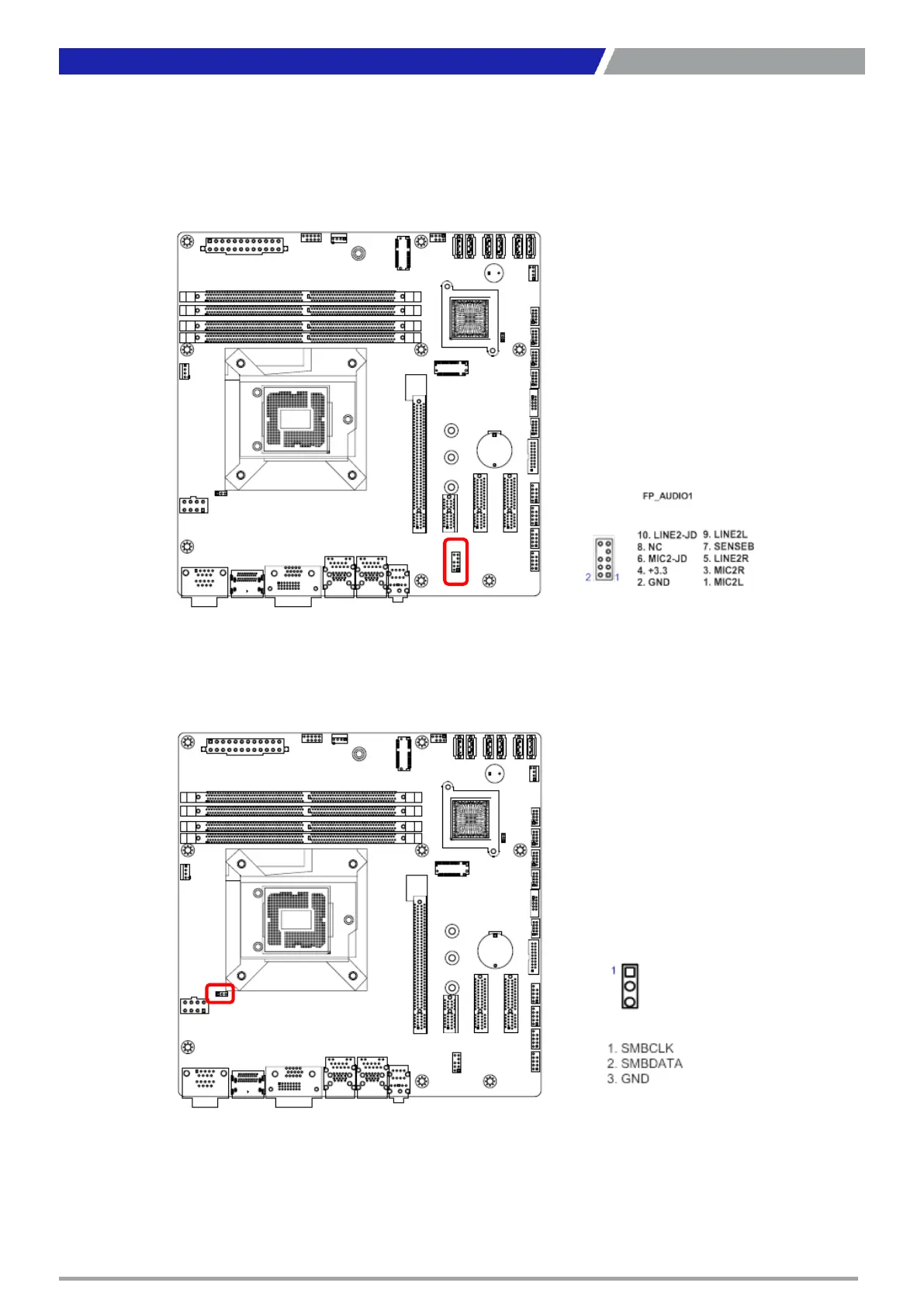

1.7.10 Front Audio connector (FP_AUDIO1)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or
legacy AC ‘97 (optional) audio standard.
1.7.11 SM bus connector (JSMB1)
For RD develop use only.
