CT-MCL01 l User’s Manual
31
Chapter 1: Product Introductions

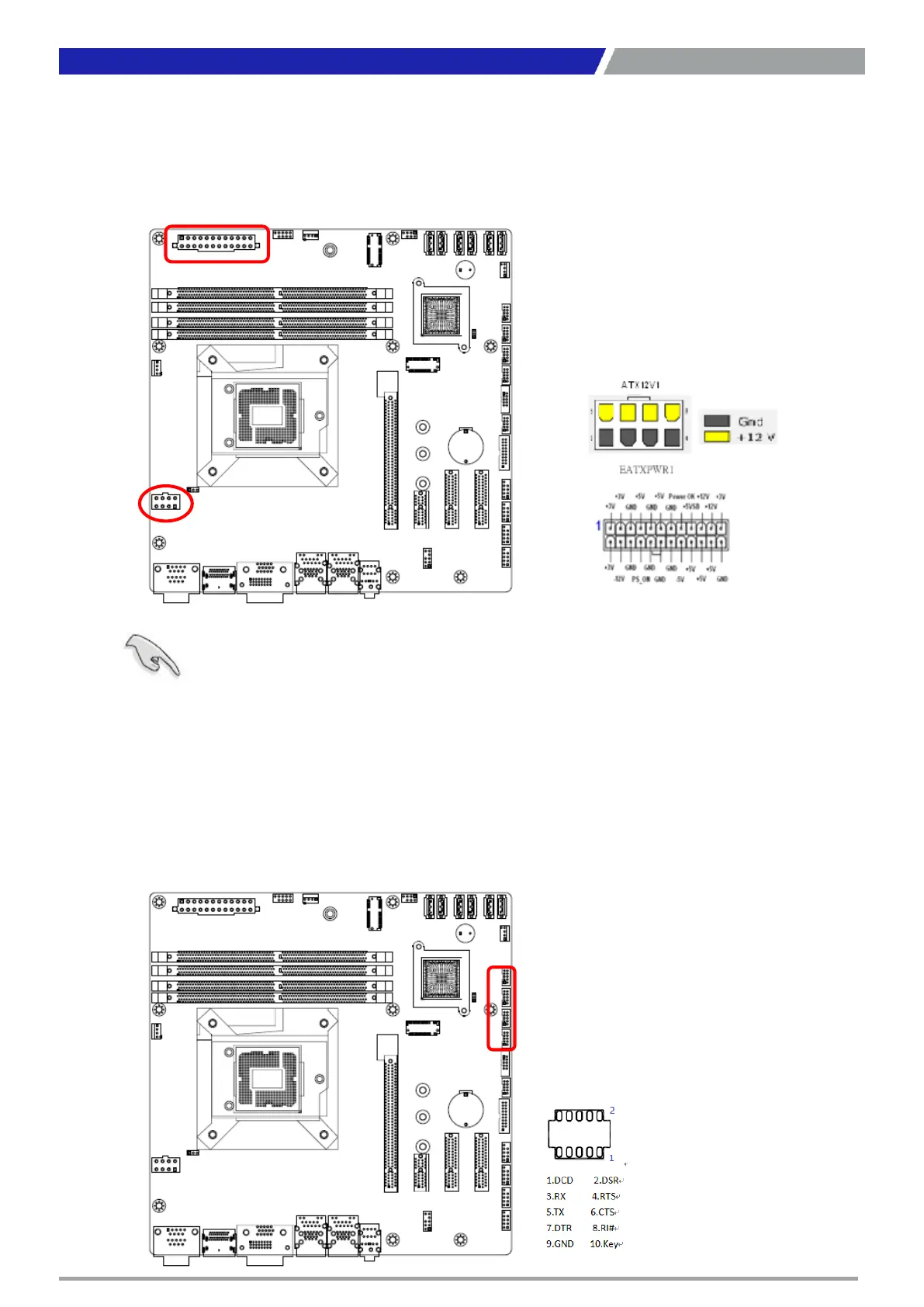

1.7.4 ATX power connectors (EATXPWR1 & ATX12V1)
The connector is for ATX power supply plugs. The power supply plugs are designed to fit these
connectors in only one orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
1.7.5 Serial Port connectors (COM3~6)
This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then
install the module to a slot opening at the back of the system chassis.

Use of a PSU with a higher power output is recommended when configuring
a
system with more power-consuming devices. The system may
become
unstable or may not boot up if the power is inadequate.

Make sure that your power supply unit (PSU) can provide at least
the
minimum power required by your system. See the table below for details.
