Chapter 1: Product Introductions

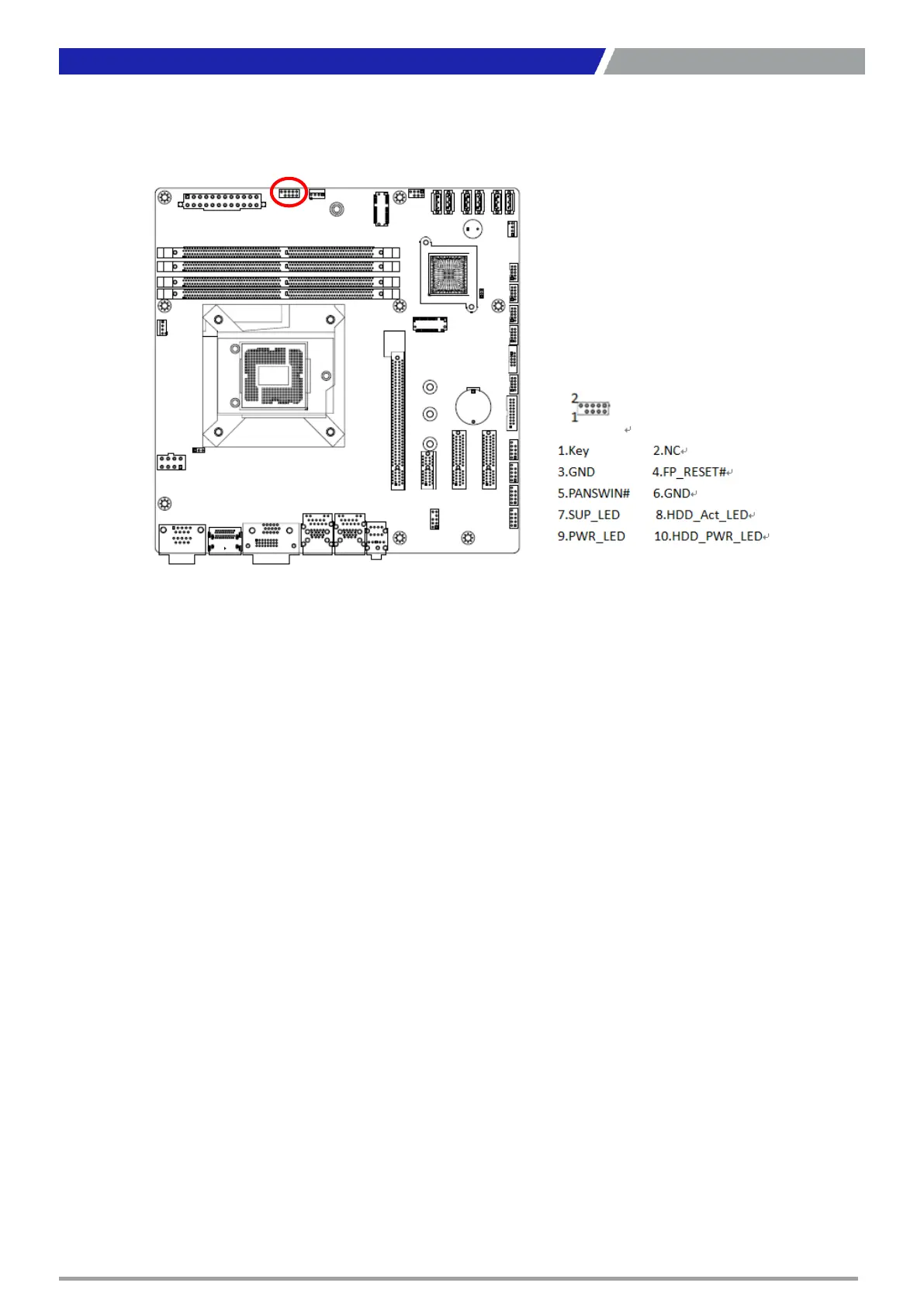

1.7.3 System Panel (F_PANEL1)
This connector is for a chassis-mounted front panel. The functions are as following.
ATX Power Button/Soft-off Button (Pin 3-5)
This 2-pin connector is for the system power button. Pressing the power button turns the system on
or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power
switch and holding it for more than four seconds while the system is ON turns the system OFF.
Reset Button (Pin 4-6)
This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off
the system power.
Power LED (Pin 7-9)
This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this
connector. The system power LED lights up when you turn on the system power, and blinks when
the system is in sleep mode.
Hard Disk Drive Activity LED (Pin 8-10)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this
connector. The IDE LED lights up or flashes when data is read from or written to the HDD.
