CT-MCL01 l User’s Manual
20

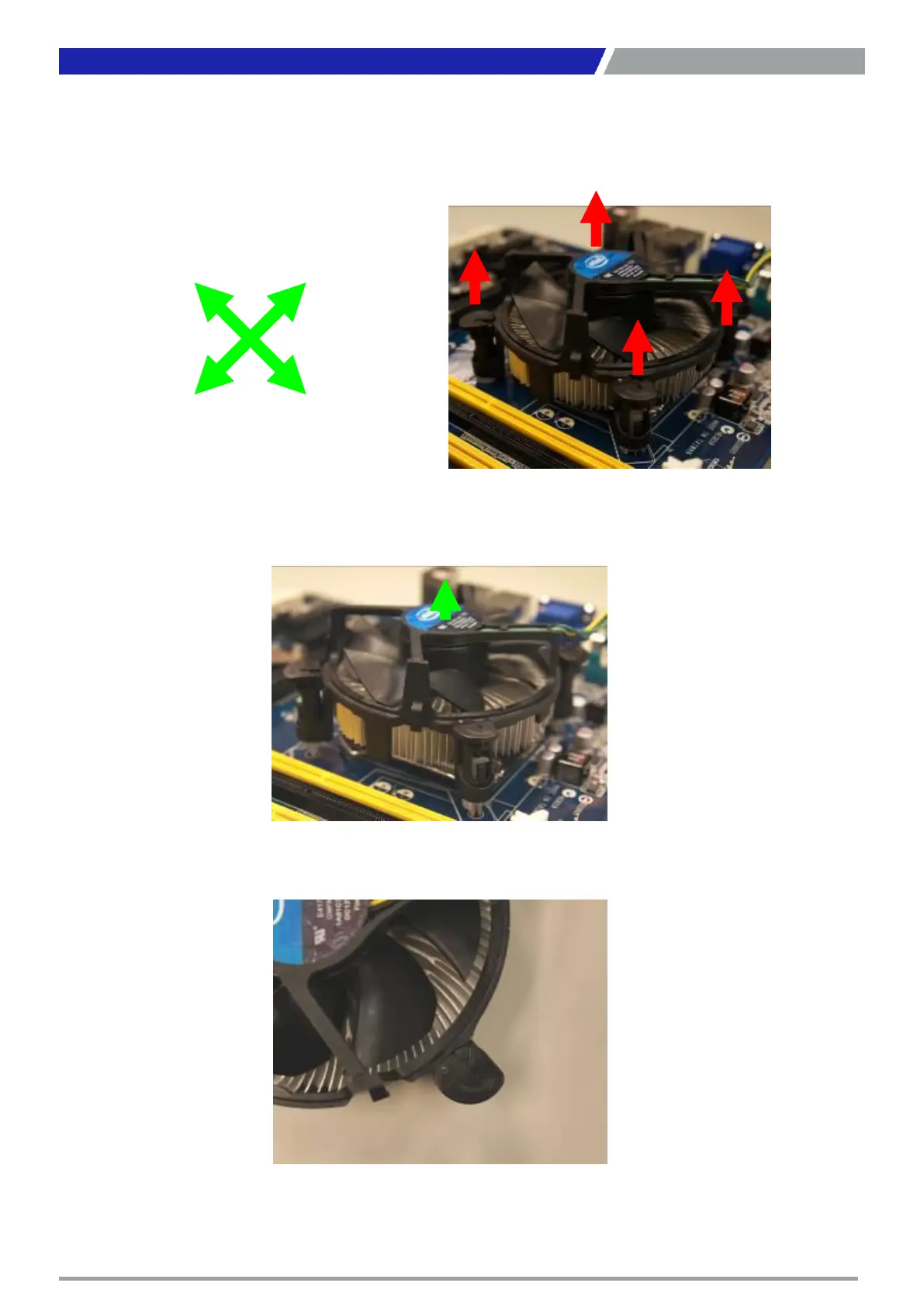

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly
from the motherboard.
4. Carefully remove the heatsink and fan assembly from the motherboard.
5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.
Chapter 1: Product Introductions
A
A
B
B
A
A
B
B
