1) Charts
(1) AF standard chart (Included in tool list. CY9-7113-000)
As shown in the figure, paste two strips of 90% reflectance paper on an A1-size (594
x 840mm) 2% reflectance paper.

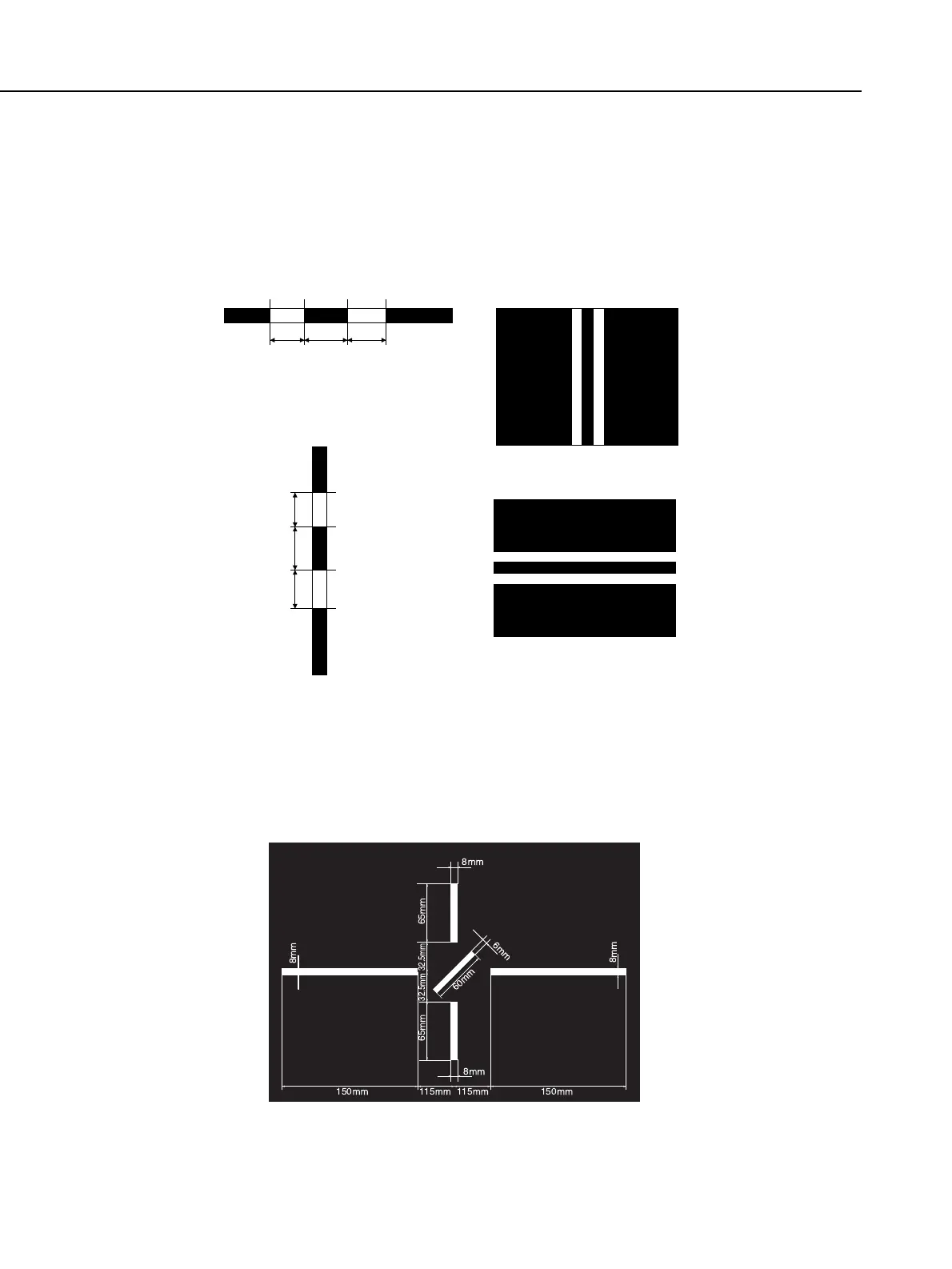

Fig. 3-7 AF standard chart
(2) AGC chart (Provided at the end of this chapter).
As shown in the figure, paste strips of 90% reflectance paper on an A3-size (210 x
297mm) 2% reflectance paper.
Fig. 3-8 AGC chart
